Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

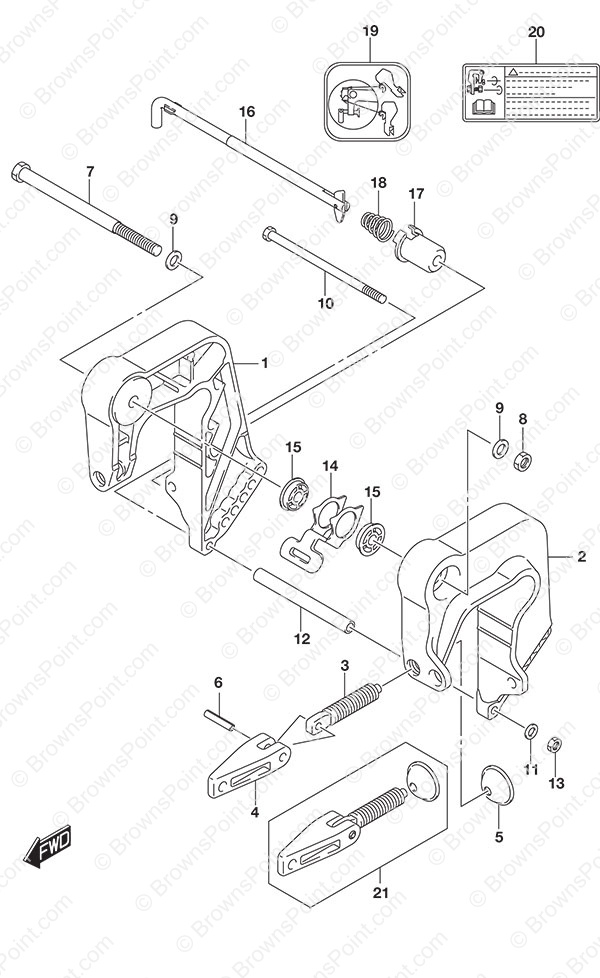

Fig. 335C - Clamp Bracket Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-99J00-0EP Starboard Clamp Bracket
SKU: 41111-99J00-0EP Weight: 5.000000 Brand: Price: $ 242.38 |
Starboard Clamp Bracket | 1 | $ 242.38 | ||
| 2 | 41121-99J00-0EP Port Clamp Bracket
SKU: 41121-99J00-0EP Weight: 5.000000 Brand: Price: $ 244.25 |
Port Clamp Bracket | 1 | $ 244.25 | ||
| 3 | 41211-99JL0 Clamp Screw
SKU: 41211-99JL0 Weight: 0.250000 Brand: Price: $ 14.42 |
Clamp Screw | 2 | $ 14.42 | ||
| 4 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 5 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 6 | 09205-06021 Spring Pin (6x25)
SKU: 09205-06021 Weight: 0.062500 Brand: Price: $ 2.03 |
Spring Pin (6x25) | 2 | $ 2.03 | ||
| 7 | 09100-10320 Bolt (10x145)
SKU: 09100-10320 Weight: 0.250000 Brand: Price: $ 16.44 |
Bolt (10x145) | 1 | $ 16.44 | ||
| 8 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 9 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 10 | 09100-06177 Bolt (6x140)
SKU: 09100-06177 Weight: 0.100000 Brand: Price: $ 5.54 |
Bolt (6x140) | 1 | $ 5.54 | ||
| 11 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 12 | 09180-06357 Spacer (6.5x10.5x104)
SKU: 09180-06357 Weight: 0.250000 Brand: Price: $ 20.76 |
Spacer (6.5x10.5x104) | 1 | $ 20.76 | ||
| 13 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 14 | 45261-94J00 Release Lever
SKU: 45261-94J00 Weight: 0.120000 Brand: Price: $ 26.65 |
Release Lever | 1 | $ 26.65 | ||
| 15 | 09306-10023 Bushing
SKU: 09306-10023 Weight: 0.250000 Brand: Price: $ 13.57 |
Bushing | 2 | $ 13.57 | ||
| 16 | 45420-99JM1 Tilt Lock Pin
SKU: 45420-99JM1 Weight: 0.250000 Brand: Price: $ 38.97 |
Tilt Lock Pin | 1 | $ 38.97 | ||
| 17 | 45425-94J01 Tilt Lock Pin Stopper
SKU: 45425-94J01 Weight: 0.060000 Brand: Price: $ 1.72 |
Tilt Lock Pin Stopper | 1 | $ 1.72 | ||
| 18 | 09441-17001 Spring
SKU: 09441-17001 Weight: 0.060000 Brand: Price: $ 1.78 |
Spring | 1 | $ 1.78 | ||
| 19 | 45269-94J20 Reverse Lock Mark
SKU: 45269-94J20 Weight: 0.100000 Brand: Price: $ 5.52 |
Reverse Lock Mark | 1 | $ 5.52 | ||
| 20 | 69911-91J51 Clamp Bracket Mark
SKU: 69911-91J51 Weight: 0.060000 Brand: Price: $ 2.39 |
Clamp Bracket Mark | 1 | $ 2.39 | ||
| 21 | 41210-99JL1 Clamp Screw Assy
SKU: 41210-99JL1 Weight: 1.000000 Brand: Price: $ 27.48 |
Clamp Screw Assy | 1 | $ 27.48 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
