Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

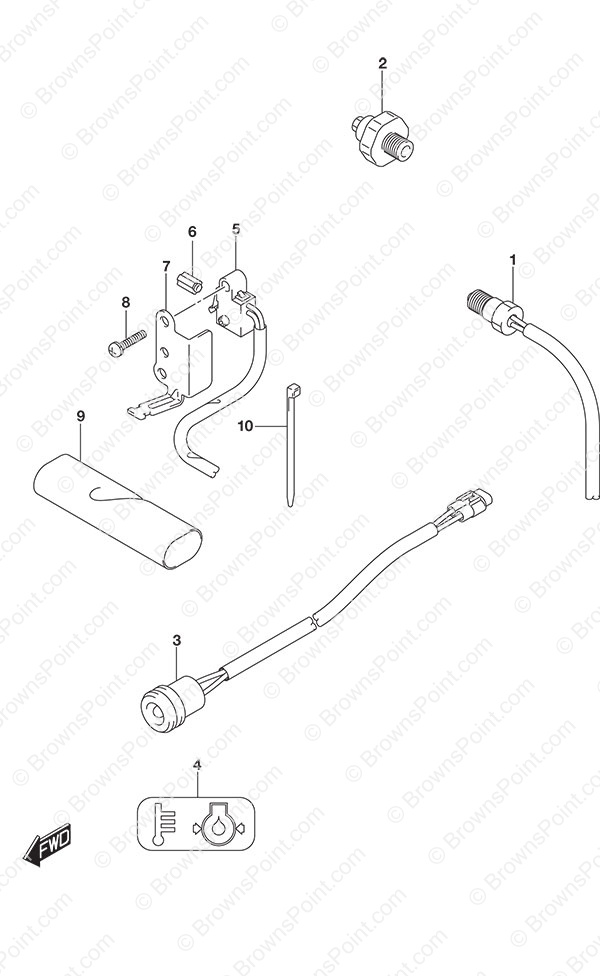

Fig. 334D - Sensor/Switch w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | ||
| 2 | 37820-93E11 Oil Pressure Switch
SKU: 37820-93E11 Weight: 0.125000 Brand: Price: $ 24.93 |
Oil Pressure Switch | 1 | $ 24.93 | ||
| 3 | 36360-99J10 Oil Pressure Indicator
SKU: 36360-99J10 Weight: 0.250000 Brand: Price: $ 40.01 |
Oil Pressure Indicator | 1 | $ 40.01 | ||
| 4 | 36367-99J00 Warning Label
SKU: 36367-99J00 Weight: 0.100000 Brand: Price: $ 3.00 |
Warning Label | 1 | $ 3.00 | ||
| 5 | 37721-99J10 Neutral Switch Assembly
SKU: 37721-99J10 Weight: 0.250000 Brand: Price: $ 49.77 |
Neutral Switch Assembly | 1 | $ 49.77 | ||
| 6 | 37724-99J00 Switch Push Rod
SKU: 37724-99J00 Weight: 0.250000 Brand: Price: $ 8.21 |
Switch Push Rod | 1 | $ 8.21 | ||
| 7 | 37726-99J10 Neutral Switch Bracket
SKU: 37726-99J10 Weight: 0.250000 Brand: Price: $ 13.50 |
Neutral Switch Bracket | 1 | $ 13.50 | ||
| 8 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 9 | 33833-99J00 Switch Lead Tube
SKU: 33833-99J00 Weight: 0.250000 Brand: Price: $ 3.21 |
Switch Lead Tube | 1 | $ 3.21 | ||
| 10 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
