Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

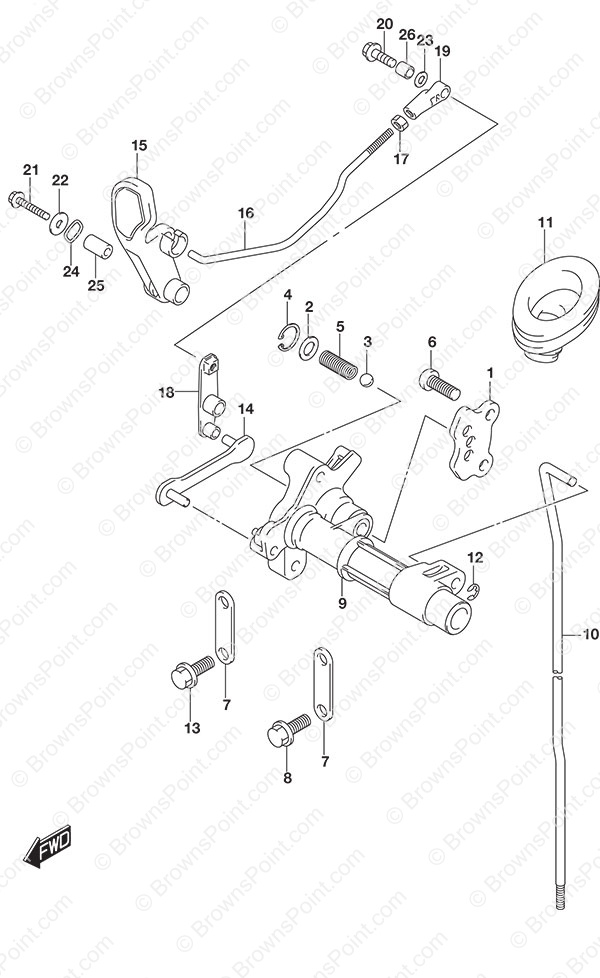

Fig. 206C - Clutch Rod Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21122-99J10 Clutch Notch Plate
SKU: 21122-99J10 Weight: 0.250000 Brand: Price: $ 0.00 |
Clutch Notch Plate | 1 | $ 0.00 | ||
| 2 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 3 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
| 4 | 09381-14004 Circlip
SKU: 09381-14004 Weight: 0.250000 Brand: Price: $ 2.65 |
Circlip | 1 | $ 2.65 | ||
| 5 | 09440-07079 Spring
SKU: 09440-07079 Weight: 0.250000 Brand: Price: $ 3.42 |
Spring | 1 | $ 3.42 | ||
| 6 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 2 | $ 1.85 | ||
| 7 | 21126-99J00 Clutch Shaft Holder
SKU: 21126-99J00 Weight: 0.100000 Brand: Price: $ 4.45 |
Clutch Shaft Holder | 2 | $ 4.45 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 21210-99J00 Clutch Lever Shaft
SKU: 21210-99J00 Weight: 0.200000 Brand: Price: $ 50.37 |
Clutch Lever Shaft | 1 | $ 50.37 | ||
| 10-1 | 23111-99J00 Clutch Rod (S)
SKU: 23111-99J00 Weight: 0.250000 Brand: Price: $ 31.74 |
Clutch Rod (S) | 1 | $ 31.74 | w/Transom (S) | |
| 10-2 | 23111-99J10 Clutch Rod (L)
SKU: 23111-99J10 Weight: 2.000000 Brand: Price: $ 36.41 |
Clutch Rod (L) | 1 | $ 36.41 | w/Transom (L) | |
| 11 | 23131-99J00 Clutch Rod Boot
SKU: 23131-99J00 Weight: 0.250000 Brand: Price: $ 23.02 |
Clutch Rod Boot | 1 | $ 23.02 | ||
| 12 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 14 | 23115-99J00 Shift Drum Link
SKU: 23115-99J00 Weight: 0.250000 Brand: Price: $ 17.61 |
Shift Drum Link | 1 | $ 17.61 | ||
| 15 | 21111-89L01 Clutch Lever
SKU: 21111-89L01 Weight: 0.250000 Brand: Price: $ 8.78 |
Clutch Lever | 1 | $ 8.78 | ||
| 16 | 23115-99J10 Clutch Lever Link
SKU: 23115-99J10 Weight: 0.250000 Brand: Price: $ 10.20 |
Clutch Lever Link | 1 | $ 10.20 | ||
| 17 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 18 | 23210-99J11 Clutch Control Lever
SKU: 23210-99J11 Weight: 0.250000 Brand: Price: $ 0.00 |
Clutch Control Lever | 1 | $ 0.00 | ||
| 19 | 23312-94JL0 Clutch Connector
SKU: 23312-94JL0 Weight: 0.060000 Brand: Price: $ 8.83 |
Clutch Connector | 1 | $ 8.83 | ||
| 20 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 21 | 09116-06234 Bolt (6x35)
SKU: 09116-06234 Weight: 0.250000 Brand: Price: $ 2.96 |
Bolt (6x35) | 1 | $ 2.96 | ||
| 22 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 24 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 2 | $ 2.04 | ||
| 25 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 26 | 09180-06370 Spacer (6.1x8x10)
SKU: 09180-06370 Weight: 0.062500 Brand: Price: $ 0.00 |
Spacer (6.1x8x10) | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
