Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

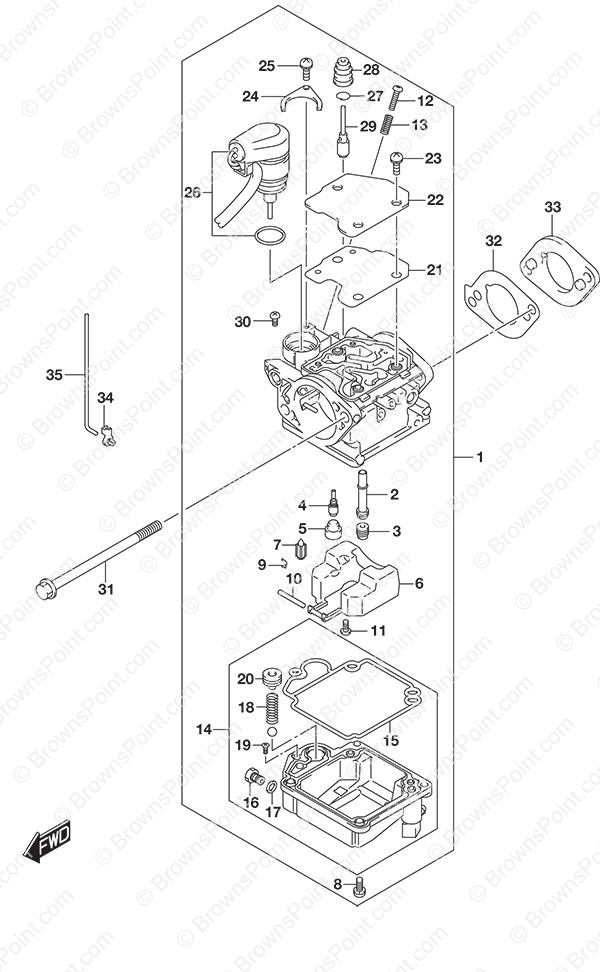

Fig. 128D - Carburetor w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-99J30 Carburetor Assembly
SKU: 13200-99J30 Weight: 2.000000 Brand: Price: $ 479.73 |
Carburetor Assembly | 1 | $ 479.73 | ||
| 2 | 13236-99J20 Main Nozzle
SKU: 13236-99J20 Weight: 0.250000 Brand: Price: $ 26.00 |
Main Nozzle | 1 | $ 26.00 | ||
| 3-1 | 09491-82013 Main Jet #82
SKU: 09491-82013 Weight: 0.250000 Brand: Price: $ 13.95 |
Main Jet #82 | 1 | $ 13.95 | ||
| 3-2 | 09491-80017 Main Jet #80
SKU: 09491-80017 Weight: 0.060000 Brand: Price: $ 13.72 |
Main Jet #80 | 1 | $ 13.72 | ||
| 4-1 | 09492-38011 Pilot Jet #38
SKU: 09492-38011 Weight: 0.250000 Brand: Price: $ 13.95 |
Pilot Jet #38 | 1 | $ 13.95 | ||
| 4-2 | 09492-35033 Pilot Jet #35
SKU: 09492-35033 Weight: 0.060000 Brand: Price: $ 13.72 |
Pilot Jet #35 | 1 | $ 13.72 | ||
| 5 | 13239-94J00 Rubber Cap
SKU: 13239-94J00 Weight: 0.060000 Brand: Price: $ 7.12 |
Rubber Cap | 1 | $ 7.12 | ||
| 6 | 13250-99J00 Float
SKU: 13250-99J00 Weight: 0.250000 Brand: Price: $ 37.47 |
Float | 1 | $ 37.47 | ||
| 7 | 13370-94J00 Needle Valve
SKU: 13370-94J00 Weight: 0.060000 Brand: Price: $ 22.13 |
Needle Valve | 1 | $ 22.13 | ||
| 6 | 13247-94J00 Screw
SKU: 13247-94J00 Weight: 0.100000 Brand: Price: $ 9.44 |
Screw | 4 | $ 9.44 | ||
| 9 | 13375-26E00 Valve Clip
SKU: 13375-26E00 Weight: 0.060000 Brand: Price: $ 6.03 |
Valve Clip | 1 | $ 6.03 | ||
| 10 | 13254-94J00 Float Pin
SKU: 13254-94J00 Weight: 0.060000 Brand: Price: $ 3.17 |
Float Pin | 1 | $ 3.17 | ||
| 11 | 13802-94J00 Screw
SKU: 13802-94J00 Weight: 0.100000 Brand: Price: $ 3.42 |
Screw | 1 | $ 3.42 | ||
| 12 | 13534-94J00 Stop Screw
SKU: 13534-94J00 Weight: 0.060000 Brand: Price: $ 7.88 |
Stop Screw | 1 | $ 7.88 | ||
| 13 | 13268-94J00 Spring
SKU: 13268-94J00 Weight: 0.100000 Brand: Price: $ 4.54 |
Spring | 1 | $ 4.54 | ||
| 14 | 13240-99J30 Float Chamber Assembly
SKU: 13240-99J30 Weight: 0.200000 Brand: Price: $ 112.72 |
Float Chamber Assembly | 1 | $ 112.72 | ||
| 15 | 13251-99J00 Float Chamber Gasket
SKU: 13251-99J00 Weight: 0.060000 Brand: Price: $ 11.56 |
Float Chamber Gasket | 1 | $ 11.56 | ||
| 16 | 13279-99J00 Drain Screw
SKU: 13279-99J00 Weight: 0.250000 Brand: Price: $ 5.59 |
Drain Screw | 1 | $ 5.59 | ||
| 17 | 13275-99J00 Plain Washer
SKU: 13275-99J00 Weight: 0.250000 Brand: Price: $ 5.80 |
Plain Washer | 1 | $ 5.80 | ||
| 18 | 13441-99J00 Spring
SKU: 13441-99J00 Weight: 0.062500 Brand: Price: $ 4.54 |
Spring | 1 | $ 4.54 | ||
| 19 | 13443-99J00 Special Screw
SKU: 13443-99J00 Weight: 0.250000 Brand: Price: $ 5.91 |
Special Screw | 1 | $ 5.91 | ||
| 20 | 13493-99J00 Plunger
SKU: 13493-99J00 Weight: 0.062500 Brand: Price: $ 22.85 |
Plunger | 1 | $ 22.85 | ||
| 21 | 13283-99J00 Packing
SKU: 13283-99J00 Weight: 0.250000 Brand: Price: $ 8.03 |
Packing | 1 | $ 8.03 | ||
| 22 | 13282-99J00 Plate
SKU: 13282-99J00 Weight: 0.250000 Brand: Price: $ 14.23 |
Plate | 1 | $ 14.23 | ||
| 23 | 13367-94J00 Screw
SKU: 13367-94J00 Weight: 0.060000 Brand: Price: $ 4.54 |
Screw | 3 | $ 4.54 | ||
| 24 | 13428-06F30 Plate
SKU: 13428-06F30 Weight: 0.100000 Brand: Price: $ 6.10 |
Plate | 1 | $ 6.10 | ||
| 25 | 13367-94J00 Screw
SKU: 13367-94J00 Weight: 0.060000 Brand: Price: $ 4.54 |
Screw | 1 | $ 4.54 | ||
| 26 | 13368-99J00 Starter Assembly
SKU: 13368-99J00 Weight: 0.250000 Brand: Price: $ 182.64 |
Starter Assembly | 1 | $ 182.64 | ||
| 27 | 13494-94J00 Clip
SKU: 13494-94J00 Weight: 0.060000 Brand: Price: $ 6.79 |
Clip | 1 | $ 6.79 | ||
| 28 | 13495-94J00 Rubber Cap
SKU: 13495-94J00 Weight: 0.060000 Brand: Price: $ 11.23 |
Rubber Cap | 1 | $ 11.23 | ||
| 29 | 13496-99J00 Link Rod
SKU: 13496-99J00 Weight: 0.250000 Brand: Price: $ 21.87 |
Link Rod | 1 | $ 21.87 | ||
| 30 | 13281-99J00 Pan Screw
SKU: 13281-99J00 Weight: 0.250000 Brand: Price: $ 4.90 |
Pan Screw | 1 | $ 4.90 | ||
| 31 | 09103-06276 Bolt (6x100)
SKU: 09103-06276 Weight: 0.200000 Brand: Price: $ 3.93 |
Bolt (6x100) | 2 | $ 3.93 | ||
| 32 | 13125-99J00 Carburetor Gasket
SKU: 13125-99J00 Weight: 0.060000 Brand: Price: $ 5.02 |
Carburetor Gasket | 2 | $ 5.02 | ||
| 33 | 13124-99J00 Insulator
SKU: 13124-99J00 Weight: 0.250000 Brand: Price: $ 38.50 |
Insulator | 1 | $ 38.50 | ||
| 34 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.18 |
Choke Rod Connector | 1 | $ 3.18 | ||
| 35 | 13513-99J00 Throttle Rod (NLA)
SKU: 13513-99J00 Weight: 0.250000 Brand: Price: $ 5.47 |
Throttle Rod (NLA) | 1 | $ 5.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
