Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

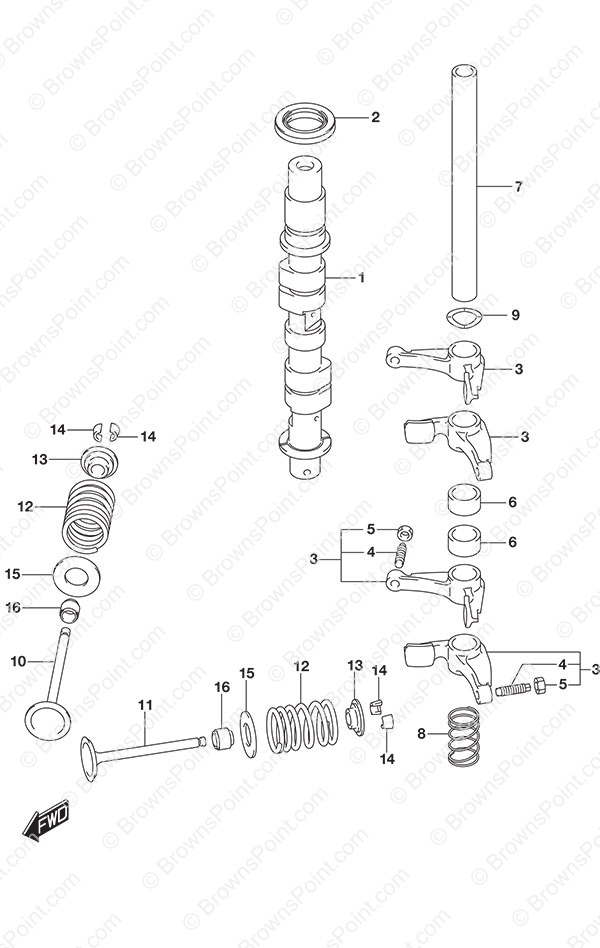

Fig. 121D - Camshaft w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12711-99JM1 Camshaft Assy wo/Decomp
SKU: 12711-99JM1 Weight: 2.000000 Brand: Price: $ 0.00 |
Camshaft Assy wo/Decomp | 1 | $ 0.00 | ||
| 2 | 09283-21009 Oil Seal (19.7x33x6)
SKU: 09283-21009 Weight: 0.125000 Brand: Price: $ 8.84 |
Oil Seal (19.7x33x6) | 1 | $ 8.84 | ||
| 3 | 12840-99J00 Rocker Arm Assembly (NLA)
SKU: 12840-99J00 Weight: 0.100000 Brand: Price: $ 23.97 |
Rocker Arm Assembly (NLA) | 4 | $ 23.97 | ||
| 4 | 12842-49201 Tappet Adjust Screw
SKU: 12842-49201 Weight: 0.100000 Brand: Price: $ 5.97 |
Tappet Adjust Screw | 4 | $ 5.97 | ||
| 5 | 12843-27A00 Tappet Adjust Nut
SKU: 12843-27A00 Weight: 0.100000 Brand: Price: $ 3.11 |
Tappet Adjust Nut | 4 | $ 3.11 | ||
| 6 | 12843-99J00 Rocker Arm Spacer (NLA)
SKU: 12843-99J00 Weight: 0.100000 Brand: Price: $ 3.57 |
Rocker Arm Spacer (NLA) | 2 | $ 3.57 | ||
| 7 | 12861-99JL0 Rocker Arm Shaft
SKU: 12861-99JL0 Weight: 0.500000 Brand: Price: $ 0.00 |
Rocker Arm Shaft | 1 | $ 0.00 | ||
| 8 | 12891-99J00 Rocker Arm Spring (NLA)
SKU: 12891-99J00 Weight: 0.100000 Brand: Price: $ 3.34 |
Rocker Arm Spring (NLA) | 1 | $ 3.34 | ||
| 9 | 09164-13008 Wave Washer (NLA)
SKU: 09164-13008 Weight: 0.125000 Brand: Price: $ 2.80 |
Wave Washer (NLA) | 1 | $ 2.80 | ||
| 10 | 12911-99J00 Intake Valve
SKU: 12911-99J00 Weight: 0.100000 Brand: Price: $ 39.04 |
Intake Valve | 2 | $ 39.04 | ||
| 11 | 12915-99J00 Exhaust Valve
SKU: 12915-99J00 Weight: 0.100000 Brand: Price: $ 61.69 |
Exhaust Valve | 2 | $ 61.69 | ||
| 12 | 12921-99J00 Valve Spring
SKU: 12921-99J00 Weight: 0.100000 Brand: Price: $ 12.09 |
Valve Spring | 4 | $ 12.09 | ||
| 14 | 12932-09G00 Valve Cotter
SKU: 12932-09G00 Weight: 0.060000 Brand: Price: $ 1.83 |
Valve Cotter | 8 | $ 1.83 | ||
| 15 | 12933-71C00 Valve Spring Seat
SKU: 12933-71C00 Weight: 0.100000 Brand: Price: $ 2.49 |
Valve Spring Seat | 4 | $ 2.49 | ||
| 16 | 09289-05008 Valve Stem Seal
SKU: 09289-05008 Weight: 0.060000 Brand: Price: $ 5.46 |
Valve Stem Seal | 4 | $ 5.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
