Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

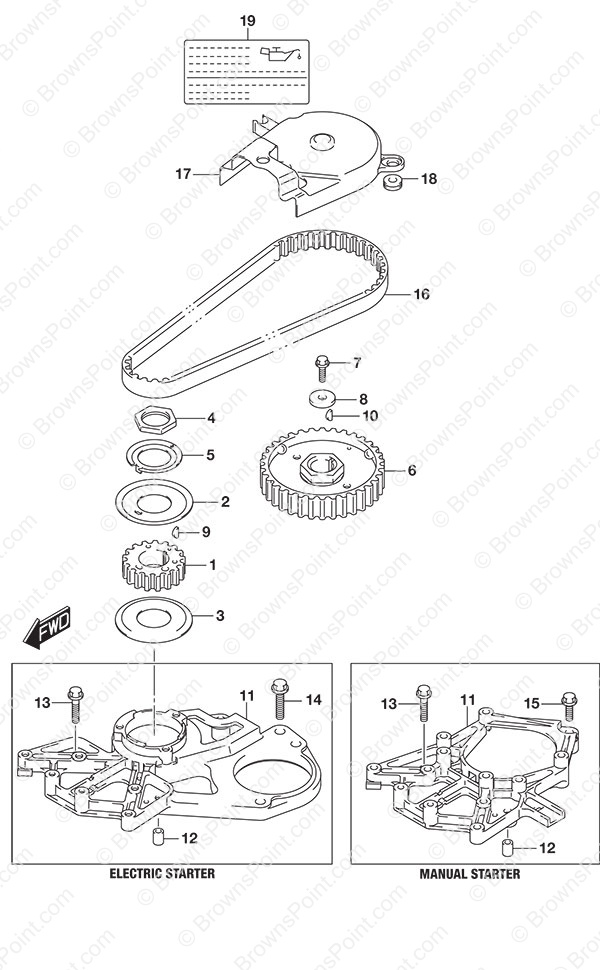

Fig. 120C - Timing Belt Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12631-99JM0 Crankshaft Pulley
SKU: 12631-99JM0 Weight: 1.000000 Brand: Price: $ 0.00 |
Crankshaft Pulley | 1 | $ 0.00 | ||
| 2 | 12635-99J00 Upper Timing Belt Guide (NLA)
SKU: 12635-99J00 Weight: 0.100000 Brand: Price: $ 8.54 |
Upper Timing Belt Guide (NLA) | 1 | $ 8.54 | ||
| 3 | 12636-99J00 Lower Timing Belt Guide
SKU: 12636-99J00 Weight: 0.100000 Brand: Price: $ 11.33 |
Lower Timing Belt Guide | 1 | $ 11.33 | ||
| 4 | 12637-99J00 Timing Pulley Nut
SKU: 12637-99J00 Weight: 0.100000 Brand: Price: $ 10.32 |
Timing Pulley Nut | 1 | $ 10.32 | ||
| 5 | 12638-99J00 Pulley Nut Lock Washer
SKU: 12638-99J00 Weight: 0.100000 Brand: Price: $ 6.97 |
Pulley Nut Lock Washer | 1 | $ 6.97 | ||
| 6 | 12741-99JL0 Camshaft Pulley
SKU: 12741-99JL0 Weight: 0.500000 Brand: Price: $ 73.42 |
Camshaft Pulley | 1 | $ 73.42 | ||
| 7 | 09103-06267 Bolt (6x18)
SKU: 09103-06267 Weight: 0.100000 Brand: Price: $ 2.72 |
Bolt (6x18) | 1 | $ 2.72 | ||
| 8 | 09160-06171 Washer
SKU: 09160-06171 Weight: 0.200000 Brand: Price: $ 0.00 |
Washer | 1 | $ 0.00 | ||
| 9 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 10 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 11-1 | 12625-99J00 Stator Base
SKU: 12625-99J00 Weight: 0.100000 Brand: Price: $ 59.65 |
Stator Base | 1 | $ 59.65 | w/Electric Starter | |
| 11-2 | 12625-99J10 Stator Base
SKU: 12625-99J10 Weight: 0.100000 Brand: Price: $ 54.51 |
Stator Base | 1 | $ 54.51 | w/Manual Starter | |
| 12 | 04211-09149 PIN 9X14
SKU: 04211-09149 Weight: 0.100000 Brand: Price: $ 1.66 |
PIN 9X14 | 2 | $ 1.66 | ||
| 13 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 14 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 1 | $ 3.59 | w/Electric Starter | |
| 15 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | w/Manual Starter | |
| 16 | 12761-99J00 Timing Belt
SKU: 12761-99J00 Weight: 0.500000 Brand: Price: $ 20.20 |
Timing Belt | 1 | $ 20.20 | ||
| 17 | 12764-99J00 Timing Belt Cover
SKU: 12764-99J00 Weight: 0.100000 Brand: Price: $ 26.45 |
Timing Belt Cover | 1 | $ 26.45 | ||
| 18 | 09308-08011 Grommet
SKU: 09308-08011 Weight: 0.100000 Brand: Price: $ 2.52 |
Grommet | 2 | $ 2.52 | ||
| 19 | 61494-99J01 Oil Label
SKU: 61494-99J01 Weight: 0.125000 Brand: Price: $ 0.00 |
Oil Label | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
