Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

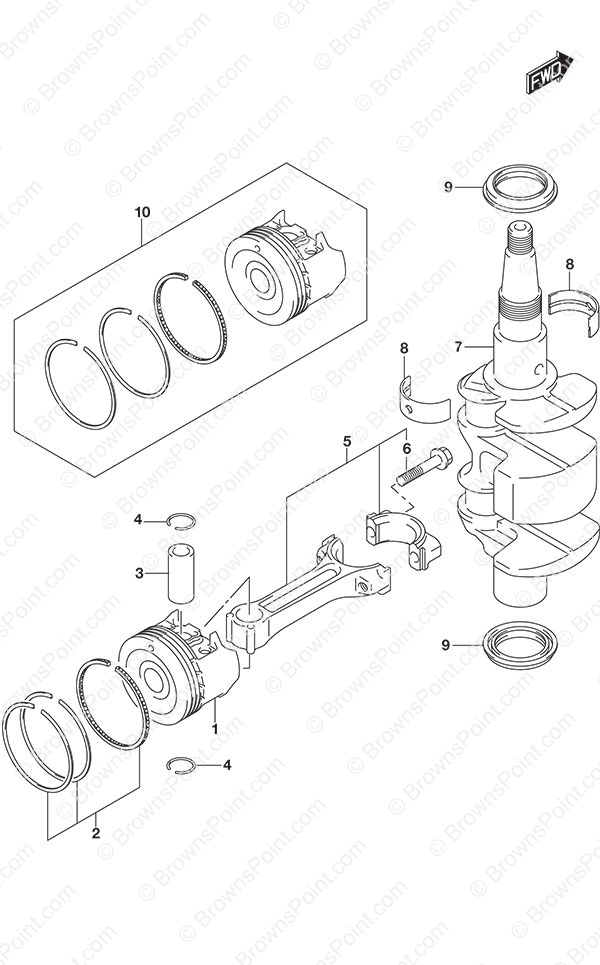

Fig. 116 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-99JL0-0B0 Piston
SKU: 12111-99JL0-0B0 Weight: 0.500000 Brand: Price: $ 48.73 |
Piston | 2 | $ 48.73 | ||
| 2 | 12140-99J00 Piston Ring Set
SKU: 12140-99J00 Weight: 0.100000 Brand: Price: $ 69.26 |
Piston Ring Set | 2 | $ 69.26 | ||
| 3 | 12151-99JL0 Piston Pin
SKU: 12151-99JL0 Weight: 0.250000 Brand: Price: $ 0.00 |
Piston Pin | 2 | $ 0.00 | ||
| 4 | 09381-14001 Piston Pin Circlip
SKU: 09381-14001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 4 | $ 1.44 | ||
| 5 | 12160-99JL1 Connecting Rod Assembly
SKU: 12160-99JL1 Weight: 1.000000 Brand: Price: $ 42.86 |
Connecting Rod Assembly | 2 | $ 42.86 | ||
| 6 | 12163-99JL1 Connecting Rod Bolt
SKU: 12163-99JL1 Weight: 0.125000 Brand: Price: $ 0.00 |
Connecting Rod Bolt | 4 | $ 0.00 | ||
| 7 | 12220-99JL0 Crankshaft Assembly
SKU: 12220-99JL0 Weight: 20.000000 Brand: Price: $ 0.00 |
Crankshaft Assembly | 1 | $ 0.00 | ||
| 8 | 12341-99J00 Crankshaft Bearing
SKU: 12341-99J00 Weight: 0.100000 Brand: Price: $ 10.28 |
Crankshaft Bearing | 4 | $ 10.28 | ||
| 9 | 09283-30075 Oil Seal (28.8x45.5x6.5)
SKU: 09283-30075 Weight: 0.200000 Brand: Price: $ 22.08 |
Oil Seal (28.8x45.5x6.5) | 2 | $ 22.08 | ||
| 10 | 12100-99JL0-050 Piston & Ring Set (OS:0.50)
SKU: 12100-99JL0-050 Weight: 0.500000 Brand: Price: $ 0.00 |
Piston & Ring Set (OS:0.50) | 2 | $ 0.00 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
