Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

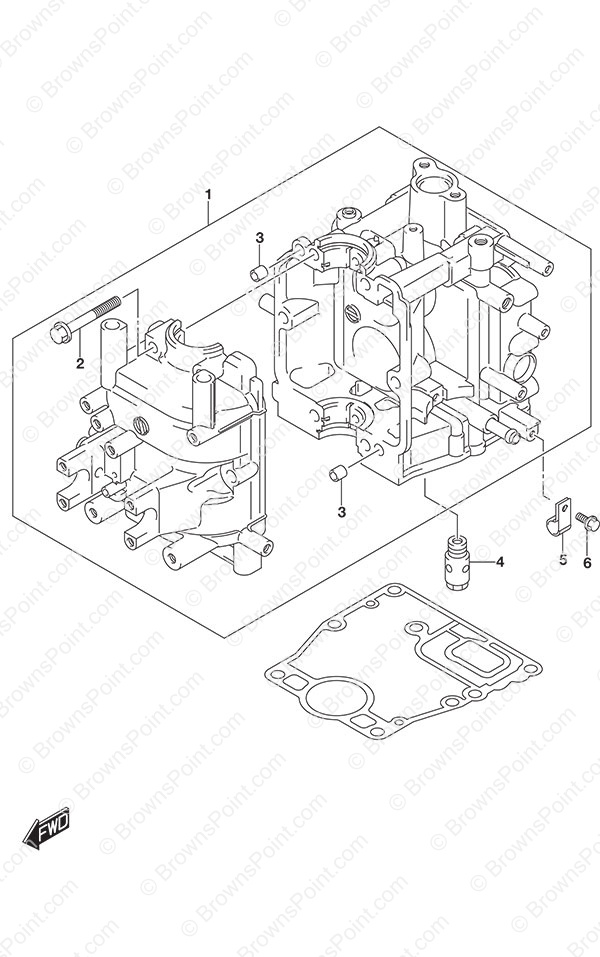

Fig. 113 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11301-99J10 Cylinder Block Assembly
SKU: 11301-99J10 Weight: 20.000000 Brand: Price: $ 1,082.12 |
Cylinder Block Assembly | 1 | $ 1,082.12 | ||
| 2 | 01560-08557 BOLT
SKU: 01560-08557 Weight: 0.100000 Brand: Price: $ 3.04 |
BOLT | 6 | $ 3.04 | ||
| 3 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 4 | 16440-11D00 Engine Oil Regulator
SKU: 16440-11D00 Weight: 0.100000 Brand: Price: $ 53.04 |
Engine Oil Regulator | 1 | $ 53.04 | ||
| 5 | 09403-12417 CLAMP
SKU: 09403-12417 Weight: 0.000000 Brand: Price: $ 4.39 |
CLAMP | 1 | $ 4.39 | ||
| 6 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
