Suzuki DF 2.5 Parts Listings - 2016
S/N 00252F-610001 to 00252F-61XXXX

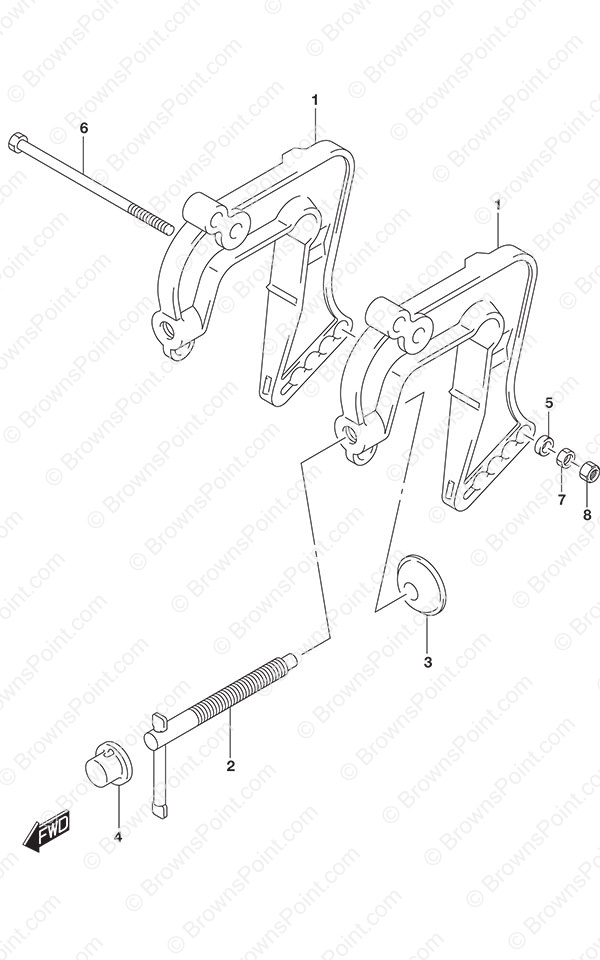

Fig. 335 - Clamp Bracket

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 41111-97J31-0EP Clamp Bracket 2 $ 114.81
2 41210-97J00 Clamp Handle 2 $ 41.14
3 41213-94J01 Clamp Plate 2 $ 3.70
4 41214-97J00 Clamp Screw Cap 2 $ 3.54
5 59181-97J10 Tilt Lock Lever Spacer 1 $ 5.91
6 09100-06176 Bolt (6x120) 1 $ 4.95
7 29141-93J00 Nut (6mm) 1 $ 1.80
8 09159-06079 Nut 1 $ 2.71

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
