Suzuki DF 250AP Parts Listings - 2015
S/N 25003P-510001 to 25003P-51XXXX

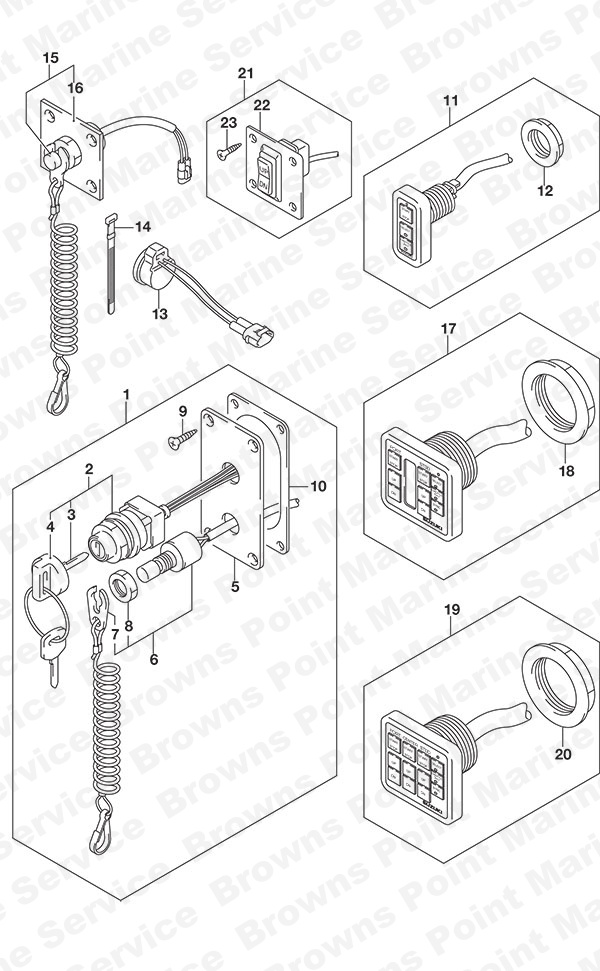

Fig. 530 - Opt: Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37100-98J07 Main Switch Panel Assemby
SKU: 37100-98J07 Weight: 0.750000 Brand: Price: $ 170.61 |
Main Switch Panel Assemby | 1 | $ 170.61 | ||
| 2 | 37110-98J02 Main Switch Assembly
SKU: 37110-98J02 Weight: 0.250000 Brand: Price: $ 87.09 |
Main Switch Assembly | 1 | $ 87.09 | ||
| 3-1 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 1 | $ 15.38 | ||
| 3-2 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 1 | $ 15.38 | ||
| 3-3 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 1 | $ 15.38 | ||
| 3-4 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 1 | $ 15.38 | ||
| 3-5 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 1 | $ 15.38 | ||
| 3-6 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 1 | $ 15.38 | ||
| 3-7 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 1 | $ 15.38 | ||
| 3-8 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 1 | $ 15.38 | ||
| 3-9 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 1 | $ 15.38 | ||
| 3-10 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 1 | $ 15.38 | ||
| 3-11 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 1 | $ 15.38 | ||
| 3-12 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 1 | $ 15.38 | ||
| 4 | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 1 | $ 6.09 | ||
| 5 | 37139-98J00 Main Switch Panel
SKU: 37139-98J00 Weight: 0.250000 Brand: Price: $ 51.48 |
Main Switch Panel | 1 | $ 51.48 | ||
| 6 | 37803-93J06 Emergency Stop Switch Panel Assembly
SKU: 37803-93J06 Weight: 0.500000 Brand: Price: $ 63.77 |
Emergency Stop Switch Panel Assembly | 1 | $ 63.77 | ||
| 7 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 8 | 37826-92J00 Nut
SKU: 37826-92J00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 9 | 03122-05165 SCREW
SKU: 03122-05165 Weight: 0.060000 Brand: Price: $ 2.23 |
SCREW | 4 | $ 2.23 | ||
| 10 | 37114-98J00 Main Swtich Panel Sheet (NLA)
SKU: 37114-98J00 Weight: 0.100000 Brand: Price: $ 4.50 |
Main Swtich Panel Sheet (NLA) | 1 | $ 4.50 | ||
| 11 | 37100-98J11 Single Engine Control Panel
SKU: 37100-98J11 Weight: 0.220000 Brand: Price: $ 483.95 |
Single Engine Control Panel | 1 | $ 483.95 | ||
| 12 | 37112-98J00 Nut (NLA)
SKU: 37112-98J00 Weight: 0.100000 Brand: Price: $ 7.71 |
Nut (NLA) | 1 | $ 7.71 | ||
| 13 | 38500-93J90 Warning Buzzer
SKU: 38500-93J90 Weight: 0.060000 Brand: Price: $ 39.28 |
Warning Buzzer | 1 | $ 39.28 | ||
| 14 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 15 | 37803-93J06 Emergency Stop Switch Panel Assembly
SKU: 37803-93J06 Weight: 0.500000 Brand: Price: $ 63.77 |
Emergency Stop Switch Panel Assembly | 1 | $ 63.77 | ||
| 16 | 37825-99E00 Emergency Switch Panel
SKU: 37825-99E00 Weight: 0.125000 Brand: Price: $ 46.73 |
Emergency Switch Panel | 1 | $ 46.73 | ||
| 17 | 37100-98J21 Dual Engine Control Panel
SKU: 37100-98J21 Weight: 0.480000 Brand: Price: $ 536.17 |
Dual Engine Control Panel | 1 | $ 536.17 | ||
| 18 | 37112-98J10 Nut (NLA)
SKU: 37112-98J10 Weight: 0.100000 Brand: Price: $ 16.54 |
Nut (NLA) | 1 | $ 16.54 | ||
| 19 | 37100-98J31 Triple Engine Control Panel
SKU: 37100-98J31 Weight: 0.520000 Brand: Price: $ 749.06 |
Triple Engine Control Panel | 1 | $ 749.06 | ||
| 20 | 37112-98J10 Nut (NLA)
SKU: 37112-98J10 Weight: 0.100000 Brand: Price: $ 16.54 |
Nut (NLA) | 1 | $ 16.54 | ||
| 21 | 37860-87L00 Trolling Mode Control Switch Assembly
SKU: 37860-87L00 Weight: 0.380000 Brand: Price: $ 91.31 |
Trolling Mode Control Switch Assembly | 1 | $ 91.31 | ||
| 22 | 37862-87L00 Trolling Switch Panel
SKU: 37862-87L00 Weight: 0.250000 Brand: Price: $ 48.50 |
Trolling Switch Panel | 1 | $ 48.50 | ||
| 23 | 09131-05004 Screw (5x16)
SKU: 09131-05004 Weight: 0.060000 Brand: Price: $ 2.29 |
Screw (5x16) | 4 | $ 2.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
