Suzuki DF 250AP Parts Listings - 2015
S/N 25003P-510001 to 25003P-51XXXX

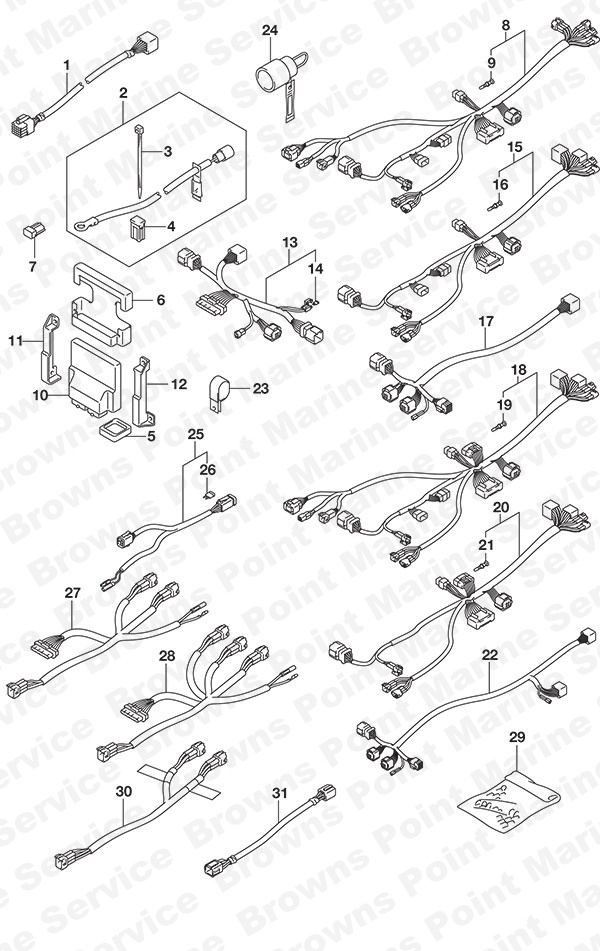

Fig. 522 - Opt: Harness (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 33830-98J11 Battery Isolator Lead Set
SKU: 33830-98J11 Weight: 1.000000 Brand: Price: $ 138.67 |
Battery Isolator Lead Set | 1 | $ 138.67 | ||
| 3 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 4 | 09481-40401 40 Amp Fuse
SKU: 09481-40401 Weight: 0.060000 Brand: Price: $ 6.92 |
40 Amp Fuse | 1 | $ 6.92 | ||
| 5 | 33911-88BL0 BCM Connector Cap
SKU: 33911-88BL0 Weight: 0.100000 Brand: Price: $ 8.91 |
BCM Connector Cap | 1 | $ 8.91 | ||
| 6 | 33925-93J00 ECU/BCM Cushion
SKU: 33925-93J00 Weight: 0.250000 Brand: Price: $ 8.27 |
ECU/BCM Cushion | 1 | $ 8.27 | ||
| 7 | 33926-98J00 Terminal Resistor
SKU: 33926-98J00 Weight: 0.060000 Brand: Price: $ 5.98 |
Terminal Resistor | 2 | $ 5.98 | ||
| 8 | 36623-98J21 BCM Harness No 1
SKU: 36623-98J21 Weight: 1.000000 Brand: Price: $ 299.17 |
BCM Harness No 1 | 1 | $ 299.17 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 10 | 36770-98J13 Boat Control Module
SKU: 36770-98J13 Weight: 1.000000 Brand: Price: $ 522.60 |
Boat Control Module | 1 | $ 522.60 | ||
| 11 | 36775-98J00 BCM Holder (L)
SKU: 36775-98J00 Weight: 0.100000 Brand: Price: $ 1.37 |
BCM Holder (L) | 1 | $ 1.37 | ||
| 12 | 36776-98J00 BCM Holder (R)
SKU: 36776-98J00 Weight: 0.100000 Brand: Price: $ 1.37 |
BCM Holder (R) | 1 | $ 1.37 | ||
| 13 | 36622-98J00 Dual Station Main Harness
SKU: 36622-98J00 Weight: 3.000000 Brand: Price: $ 122.81 |
Dual Station Main Harness | 1 | $ 122.81 | ||
| 14 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 15 | 36624-98J02 BCM Harness No 2
SKU: 36624-98J02 Weight: 1.000000 Brand: Price: $ 316.86 |
BCM Harness No 2 | 1 | $ 316.86 | ||
| 16 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 17 | 36621-98J00 Dual Engine/Single Station Harness
SKU: 36621-98J00 Weight: 0.620000 Brand: Price: $ 114.66 |
Dual Engine/Single Station Harness | 1 | $ 114.66 | ||
| 18 | 36623-98J30 BCM Harness No 1
SKU: 36623-98J30 Weight: 1.000000 Brand: Price: $ 400.37 |
BCM Harness No 1 | 1 | $ 400.37 | ||
| 19 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 | ||
| 20 | 36624-98J11 BCM Harness No 2
SKU: 36624-98J11 Weight: 1.000000 Brand: Price: $ 406.50 |
BCM Harness No 2 | 1 | $ 406.50 | ||
| 21 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 22 | 36621-98J10 Triple Engine/Single Station Harness
SKU: 36621-98J10 Weight: 0.100000 Brand: Price: $ 164.42 |
Triple Engine/Single Station Harness | 1 | $ 164.42 | ||
| 23 | 09403-13402 Harness Clamp (NLA)
SKU: 09403-13402 Weight: 0.100000 Brand: Price: $ 1.83 |
Harness Clamp (NLA) | 20 | $ 1.83 | ||
| 24 | 36612-98J20 Counter Rotation Selector - White
SKU: 36612-98J20 Weight: 0.125000 Brand: Price: $ 15.97 |
Counter Rotation Selector - White | 1 | $ 15.97 | ||
| 25 | 36661-98J10 Single Interface Adapter
SKU: 36661-98J10 Weight: 0.250000 Brand: Price: $ 77.41 |
Single Interface Adapter | 1 | $ 77.41 | ||
| 26 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 27 | 36661-98J20 Dual Interface Adapter (NLA)
SKU: 36661-98J20 Weight: 1.000000 Brand: Price: $ 45.85 |
Dual Interface Adapter (NLA) | 1 | $ 45.85 | ||
| 28 | 36661-98J30 Triple Interface Adapter (NLA)
SKU: 36661-98J30 Weight: 1.000000 Brand: Price: $ 56.95 |
Triple Interface Adapter (NLA) | 1 | $ 56.95 | ||
| 29 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 31 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | L:6500 | |
| 30 | 36667-87L00 Multi Gauge Adapter
SKU: 36667-87L00 Weight: 1.000000 Brand: Price: $ 226.00 |
Multi Gauge Adapter | 1 | $ 226.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
