Suzuki DF 250AP Parts Listings - 2015
S/N 25003P-510001 to 25003P-51XXXX

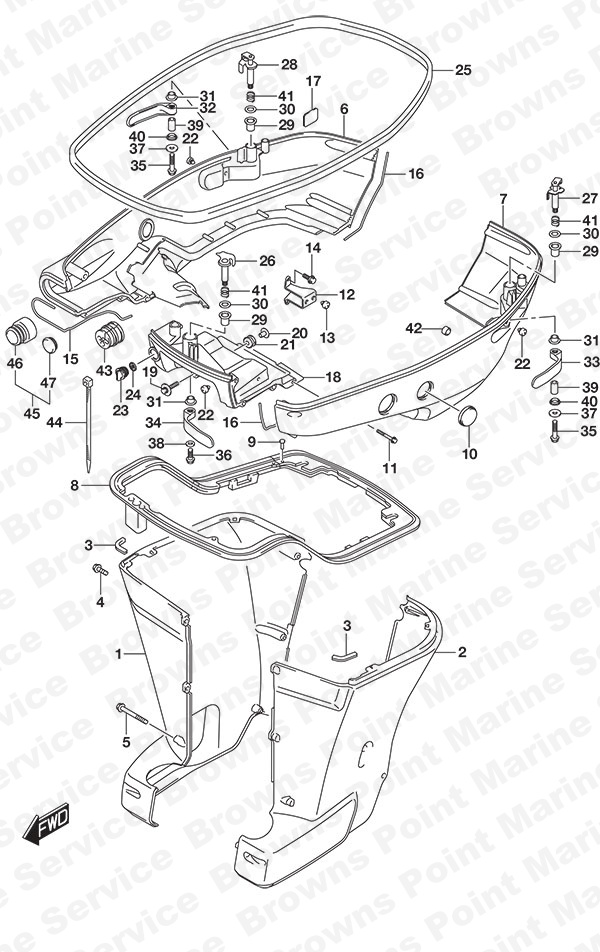

Fig. 410 - Side Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61131-93J01-0EP Starboard Oil Pan Cover
SKU: 61131-93J01-0EP Weight: 5.000000 Brand: Price: $ 426.49 |
Starboard Oil Pan Cover | 1 | $ 426.49 | Black | |
| 1-2 | 61131-93J01-Y5S Starboard Oil Pan Cover
SKU: 61131-93J01-Y5S Weight: 5.000000 Brand: Price: $ 406.22 |
Starboard Oil Pan Cover | 1 | $ 406.22 | White | |
| 2-1 | 61141-93J01-0EP Port Oil Pan Cover
SKU: 61141-93J01-0EP Weight: 15.000000 Brand: Price: $ 420.01 |
Port Oil Pan Cover | 1 | $ 420.01 | Black | |
| 2-2 | 61141-93J01-Y5S Port Oil Pan Cover
SKU: 61141-93J01-Y5S Weight: 15.000000 Brand: Price: $ 406.22 |
Port Oil Pan Cover | 1 | $ 406.22 | White | |
| 3 | 61137-93J01 Oil Pan Cover Upper Cushion
SKU: 61137-93J01 Weight: 0.060000 Brand: Price: $ 7.94 |
Oil Pan Cover Upper Cushion | 2 | $ 7.94 | ||
| 4 | 09139-06135 Oil Pan Cover Screw (6x17)
SKU: 09139-06135 Weight: 0.060000 Brand: Price: $ 5.02 |
Oil Pan Cover Screw (6x17) | 5 | $ 5.02 | ||
| 5 | 09139-06136 Oil Pan Cover Screw (6x65)
SKU: 09139-06136 Weight: 0.125000 Brand: Price: $ 15.01 |
Oil Pan Cover Screw (6x65) | 3 | $ 15.01 | ||
| 6-1 | 61811-98J20-0EP Starboard Side Cover
SKU: 61811-98J20-0EP Weight: 14.000000 Brand: Price: $ 620.48 |
Starboard Side Cover | 1 | $ 620.48 | Black | |
| 6-2 | 61811-98J20-Y5S Starboard Side Cover
SKU: 61811-98J20-Y5S Weight: 14.000000 Brand: Price: $ 579.99 |
Starboard Side Cover | 1 | $ 579.99 | White | |
| 7-1 | 61821-98J10-0EP Port Side Cover
SKU: 61821-98J10-0EP Weight: 8.000000 Brand: Price: $ 632.19 |
Port Side Cover | 1 | $ 632.19 | Black | |
| 7-2 | 61821-98J10-Y5S Port Side Cover
SKU: 61821-98J10-Y5S Weight: 8.000000 Brand: Price: $ 579.99 |
Port Side Cover | 1 | $ 579.99 | White | |
| 8 | 61134-93J21 Side Cover Seal
SKU: 61134-93J21 Weight: 1.880000 Brand: Price: $ 97.68 |
Side Cover Seal | 1 | $ 97.68 | ||
| 10 | 61817-93J01 Side Cover Plug
SKU: 61817-93J01 Weight: 0.060000 Brand: Price: $ 4.50 |
Side Cover Plug | 2 | $ 4.50 | ||
| 11 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 10 | $ 1.96 | ||
| 12 | 61827-93J02 Side Cover Holder
SKU: 61827-93J02 Weight: 0.250000 Brand: Price: $ 44.57 |
Side Cover Holder | 1 | $ 44.57 | ||
| 13 | 09321-10049 CUSHION,SIDE CO
SKU: 09321-10049 Weight: 0.000000 Brand: Price: $ 1.99 |
CUSHION,SIDE CO | 2 | $ 1.99 | ||
| 14 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
| 15 | 61832-98J00 Front Panel Starboard Seal
SKU: 61832-98J00 Weight: 0.250000 Brand: Price: $ 8.95 |
Front Panel Starboard Seal | 1 | $ 8.95 | ||
| 16 | 61812-98J00 Side Cover Seal
SKU: 61812-98J00 Weight: 0.250000 Brand: Price: $ 9.43 |
Side Cover Seal | 1 | $ 9.43 | ||
| 17 | 61814-98J00 Side Cover Protector (NLA)
SKU: 61814-98J00 Weight: 0.100000 Brand: Price: $ 5.13 |
Side Cover Protector (NLA) | 1 | $ 5.13 | ||
| 18-1 | 61831-98J02-0EP Front Panel
SKU: 61831-98J02-0EP Weight: 0.500000 Brand: Price: $ 180.09 |
Front Panel | 1 | $ 180.09 | Black | |
| 18-2 | 61831-98J02-Y5S Front Panel
SKU: 61831-98J02-Y5S Weight: 0.500000 Brand: Price: $ 167.90 |
Front Panel | 1 | $ 167.90 | White | |
| 19 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 20 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 21 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 22 | 09321-10049 CUSHION,SIDE CO
SKU: 09321-10049 Weight: 0.000000 Brand: Price: $ 1.99 |
CUSHION,SIDE CO | 3 | $ 1.99 | ||
| 23 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 24 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 25 | 61112-98J00 Side Cover Rubber
SKU: 61112-98J00 Weight: 1.000000 Brand: Price: $ 54.67 |
Side Cover Rubber | 1 | $ 54.67 | ||
| 26 | 61630-98J00 Cover Hook Shaft (NLA)
SKU: 61630-98J00 Weight: 0.350000 Brand: Price: $ 143.93 |
Cover Hook Shaft (NLA) | 1 | $ 143.93 | ||
| 27 | 63632-98J20 Cover Hook Shaft
SKU: 63632-98J20 Weight: 0.600000 Brand: Price: $ 142.28 |
Cover Hook Shaft | 1 | $ 142.28 | ||
| 28 | 63632-98J30 Cover Hook Shaft
SKU: 63632-98J30 Weight: 0.600000 Brand: Price: $ 139.64 |
Cover Hook Shaft | 1 | $ 139.64 | ||
| 29 | 09306-17002 Bushing
SKU: 09306-17002 Weight: 0.060000 Brand: Price: $ 2.77 |
Bushing | 3 | $ 2.77 | ||
| 30 | 09160-17052 Washer
SKU: 09160-17052 Weight: 0.060000 Brand: Price: $ 5.80 |
Washer | 3 | $ 5.80 | ||
| 31 | 61636-98J00 Bushing
SKU: 61636-98J00 Weight: 0.060000 Brand: Price: $ 4.84 |
Bushing | 3 | $ 4.84 | ||
| 32-1 | 61633-98J10-0EP RR Starboard Hook Lever
SKU: 61633-98J10-0EP Weight: 0.200000 Brand: Price: $ 93.90 |
RR Starboard Hook Lever | 1 | $ 93.90 | Black | |
| 32-2 | 61633-98J10-Y5S RR Starboard Hook Lever
SKU: 61633-98J10-Y5S Weight: 0.200000 Brand: Price: $ 87.78 |
RR Starboard Hook Lever | 1 | $ 87.78 | White | |
| 33-1 | 61634-98J10-0EP RR Port Hook Lever
SKU: 61634-98J10-0EP Weight: 0.200000 Brand: Price: $ 93.90 |
RR Port Hook Lever | 1 | $ 93.90 | Black | |
| 33-2 | 61634-98J10-Y5S RR Port Hook Lever
SKU: 61634-98J10-Y5S Weight: 0.200000 Brand: Price: $ 89.43 |
RR Port Hook Lever | 1 | $ 89.43 | White | |
| 34-1 | 61645-98J00-0EP Front Hook Lever
SKU: 61645-98J00-0EP Weight: 0.200000 Brand: Price: $ 84.26 |
Front Hook Lever | 1 | $ 84.26 | Black | |
| 34-2 | 61645-98J00-Y5S Front Hook Lever
SKU: 61645-98J00-Y5S Weight: 0.200000 Brand: Price: $ 89.43 |
Front Hook Lever | 1 | $ 89.43 | White | |
| 35 | 29103-93J20 Bolt (8x45)
SKU: 29103-93J20 Weight: 0.200000 Brand: Price: $ 4.18 |
Bolt (8x45) | 2 | $ 4.18 | ||
| 36 | 29103-93J30 Bolt (8x25)
SKU: 29103-93J30 Weight: 0.060000 Brand: Price: $ 3.87 |
Bolt (8x25) | 1 | $ 3.87 | ||
| 37 | 09160-08152 Washer (8.5x28x1.5)
SKU: 09160-08152 Weight: 0.100000 Brand: Price: $ 2.67 |
Washer (8.5x28x1.5) | 2 | $ 2.67 | ||
| 38 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 39 | 61635-98J00 Spacer
SKU: 61635-98J00 Weight: 0.060000 Brand: Price: $ 16.67 |
Spacer | 2 | $ 16.67 | ||
| 40 | 61643-98J00 Bushing
SKU: 61643-98J00 Weight: 0.060000 Brand: Price: $ 4.34 |
Bushing | 2 | $ 4.34 | ||
| 41 | 61658-98J00 Hook Shaft Spring
SKU: 61658-98J00 Weight: 0.060000 Brand: Price: $ 4.49 |
Hook Shaft Spring | 3 | $ 4.49 | ||
| 42 | 09329-14003 Side Cover Cushion
SKU: 09329-14003 Weight: 0.100000 Brand: Price: $ 2.72 |
Side Cover Cushion | 1 | $ 2.72 | ||
| 43 | 61124-98J01 GROMMET,REMOCON
SKU: 61124-98J01 Weight: 0.000000 Brand: Price: $ 18.35 |
GROMMET,REMOCON | 1 | $ 18.35 | ||
| 44 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 45 | 67300-93J01 Rigging Kit Adapter
SKU: 67300-93J01 Weight: 0.200000 Brand: Price: $ 14.11 |
Rigging Kit Adapter | 1 | $ 14.11 | Optional | |
| 46 | 67361-93J00 Hose Adapter
SKU: 67361-93J00 Weight: 0.120000 Brand: Price: $ 9.10 |
Hose Adapter | 1 | $ 9.10 | Optional | |
| 47 | 09250-21003 Plug
SKU: 09250-21003 Weight: 0.060000 Brand: Price: $ 4.39 |
Plug | 1 | $ 4.39 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
