Suzuki DF 250AP Parts Listings - 2015
S/N 25003P-510001 to 25003P-51XXXX

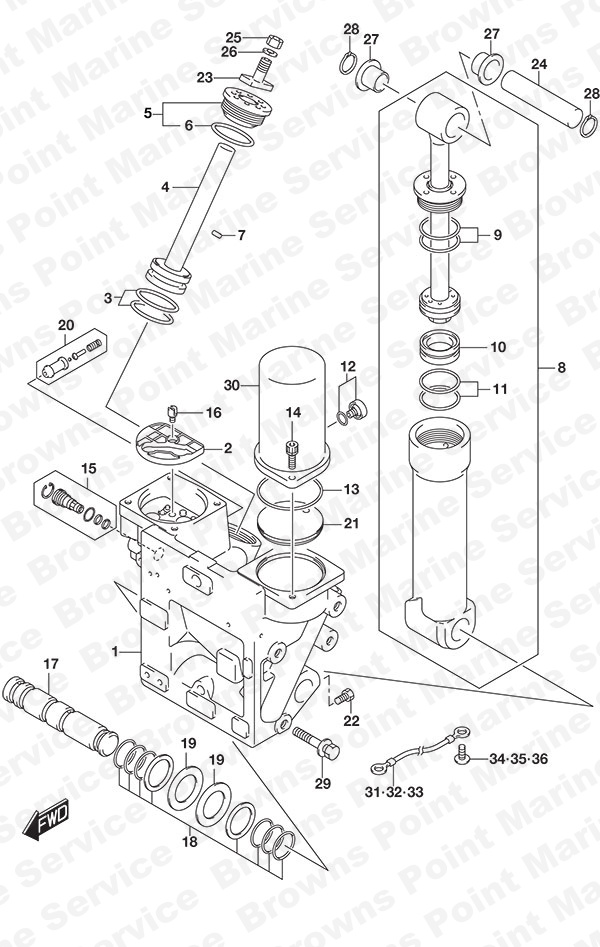

Fig. 337 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48500-98J03 Manifold Assembly
SKU: 48500-98J03 Weight: 13.500000 Brand: Price: $ 944.19 |
Manifold Assembly | 1 | $ 944.19 | ||
| 2 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 3 | 48605-93J00 O-Ring Set
SKU: 48605-93J00 Weight: 0.060000 Brand: Price: $ 11.63 |
O-Ring Set | 2 | $ 11.63 | ||
| 4 | 48610-93J01 Trim Piston & Ram
SKU: 48610-93J01 Weight: 1.000000 Brand: Price: $ 201.03 |
Trim Piston & Ram | 2 | $ 201.03 | ||
| 5 | 48630-98L02 ROD GUIDE
SKU: 48630-98L02 Weight: 0.000000 Brand: Price: $ 58.35 |
ROD GUIDE | 2 | $ 58.35 | ||
| 6 | 48633-93J00 O-Ring
SKU: 48633-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 4 | $ 7.36 | ||
| 7 | 48691-93J00 Check Valve
SKU: 48691-93J00 Weight: 0.060000 Brand: Price: $ 6.41 |
Check Valve | 1 | $ 6.41 | ||
| 8 | 48400-98J03 Cylinder Assembly
SKU: 48400-98J03 Weight: 5.500000 Brand: Price: $ 562.02 |
Cylinder Assembly | 1 | $ 562.02 | ||
| 9 | 48405-93J00 Tilt O-Ring Set
SKU: 48405-93J00 Weight: 0.060000 Brand: Price: $ 9.24 |
Tilt O-Ring Set | 1 | $ 9.24 | ||
| 10 | 48650-93J00 Free Piston
SKU: 48650-93J00 Weight: 0.500000 Brand: Price: $ 69.14 |
Free Piston | 1 | $ 69.14 | ||
| 11 | 48627-93J00 O-Ring Set
SKU: 48627-93J00 Weight: 0.125000 Brand: Price: $ 8.70 |
O-Ring Set | 1 | $ 8.70 | ||
| 12 | 48572-87J10 Plug
SKU: 48572-87J10 Weight: 0.060000 Brand: Price: $ 20.90 |
Plug | 1 | $ 20.90 | ||
| 13 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 14 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 2 | $ 15.52 | ||
| 15 | 48864-93J01 Manual Valve Set
SKU: 48864-93J01 Weight: 0.100000 Brand: Price: $ 128.52 |
Manual Valve Set | 1 | $ 128.52 | ||
| 16 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 17 | 48121-93J20 Tilt Cylinder Shaft
SKU: 48121-93J20 Weight: 0.540000 Brand: Price: $ 63.44 |
Tilt Cylinder Shaft | 1 | $ 63.44 | ||
| 18 | 48125-93J00 O-Ring Set
SKU: 48125-93J00 Weight: 0.060000 Brand: Price: $ 20.14 |
O-Ring Set | 1 | $ 20.14 | ||
| 19 | 48126-93J00 Nylon Washer
SKU: 48126-93J00 Weight: 0.060000 Brand: Price: $ 9.52 |
Nylon Washer | 2 | $ 9.52 | ||
| 20 | 48320-93J00 Valve Set
SKU: 48320-93J00 Weight: 0.100000 Brand: Price: $ 23.88 |
Valve Set | 1 | $ 23.88 | ||
| 21 | 48573-93J00 Cover
SKU: 48573-93J00 Weight: 0.100000 Brand: Price: $ 43.44 |
Cover | 1 | $ 43.44 | ||
| 22 | 48128-93J11 Bolt
SKU: 48128-93J11 Weight: 0.100000 Brand: Price: $ 10.88 |
Bolt | 1 | $ 10.88 | ||
| 23 | 48311-96J10 Trim Cylinder Ram Pad
SKU: 48311-96J10 Weight: 0.125000 Brand: Price: $ 41.00 |
Trim Cylinder Ram Pad | 2 | $ 41.00 | ||
| 24 | 48321-93J00 Tilt Cylinder Upper Shaft
SKU: 48321-93J00 Weight: 0.250000 Brand: Price: $ 46.53 |
Tilt Cylinder Upper Shaft | 1 | $ 46.53 | ||
| 25 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 26 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 27 | 09306-24001 Tilt Cylinder Upper Bushing
SKU: 09306-24001 Weight: 0.060000 Brand: Price: $ 1.90 |
Tilt Cylinder Upper Bushing | 2 | $ 1.90 | ||
| 28 | 09380-21002 Tilt Cylinder Circlip
SKU: 09380-21002 Weight: 0.200000 Brand: Price: $ 2.55 |
Tilt Cylinder Circlip | 2 | $ 2.55 | ||
| 29 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 8 | $ 6.90 | ||
| 30 | 48571-93J00 Resevoir Tank
SKU: 48571-93J00 Weight: 1.000000 Brand: Price: $ 217.82 |
Resevoir Tank | 1 | $ 217.82 | ||
| 31 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode Lead | |
| 32 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | PTT to Anode Lead | |
| 33 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | PTT to Anode Lead | |
| 34 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 35 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 36 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
