Suzuki DF 250 Parts Listings - 2015
S/N 25003F-510001 to 25003F-51XXXX
S/N 25003Z-510001 to 25003Z-51XXXX
S/N 25004F-510001 to 25004F-51XXXX

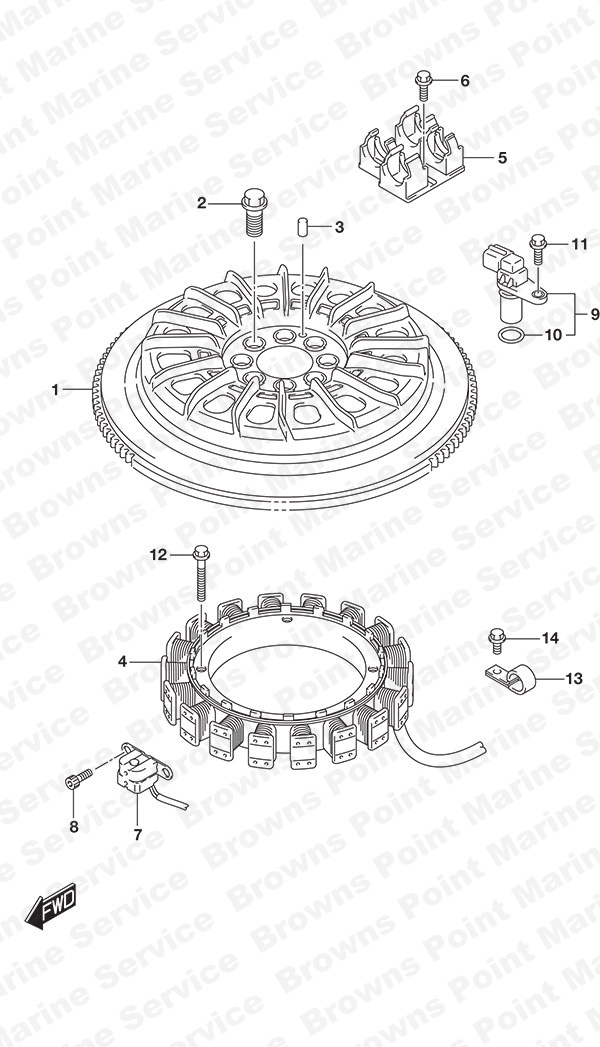

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-93J20 Flywheel
SKU: 32102-93J20 Weight: 18.000000 Brand: Price: $ 825.53 |
Flywheel | 1 | $ 825.53 | ||
| 2 | 09103-12125 Flywheel Bolt (12x26)
SKU: 09103-12125 Weight: 0.125000 Brand: Price: $ 2.90 |
Flywheel Bolt (12x26) | 8 | $ 2.90 | ||
| 3 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 4 | 32120-93J10 COIL,BATTERY CH
SKU: 32120-93J10 Weight: 0.000000 Brand: Price: $ 459.49 |
COIL,BATTERY CH | 1 | $ 459.49 | ||
| 5 | 32131-93J00 Stator Connector Holder (NLA)
SKU: 32131-93J00 Weight: 0.100000 Brand: Price: $ 6.48 |
Stator Connector Holder (NLA) | 1 | $ 6.48 | ||
| 6 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 32160-88L01 CKP/Ignition Timimg Coil
SKU: 32160-88L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 8 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | ||
| 9 | 33220-98J00 Cam Position Sensor
SKU: 33220-98J00 Weight: 0.250000 Brand: Price: $ 117.17 |
Cam Position Sensor | 3 | $ 117.17 | ||
| 10 | 33221-42F00 O-Ring
SKU: 33221-42F00 Weight: 0.100000 Brand: Price: $ 6.88 |
O-Ring | 3 | $ 6.88 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 12 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 13 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
