Suzuki DF 250 Parts Listings - 2015
S/N 25003F-510001 to 25003F-51XXXX
S/N 25003Z-510001 to 25003Z-51XXXX
S/N 25004F-510001 to 25004F-51XXXX

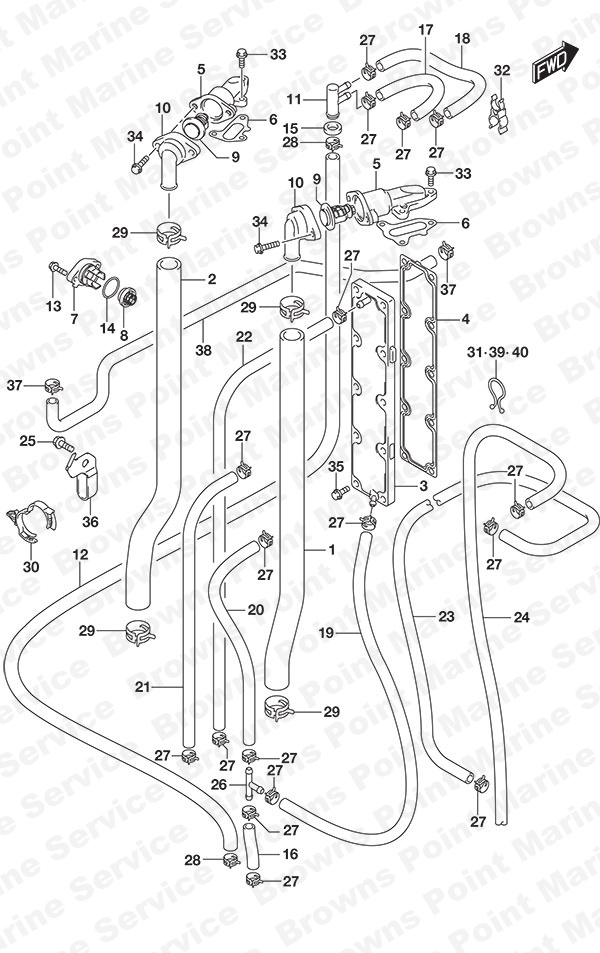

Fig. 162 - Thermostat

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11196-93J00 Water Return Hose 1 $ 16.44
2 11197-93J00 Water Return Hose 1 $ 16.44
3 11270-93J00 Cylinder Block Water Jacket Plate 1 $ 134.12
4 11272-93J00 Cylinder Block Plate Gasket 1 $ 7.36
5 17581-93J00 Water Outlet Pipe 2 $ 41.30
6 17582-93J00 Water Outlet Pipe Gasket 2 $ 2.55
7-1 17611-90J00 Water Pressure Valve Cover 1 $ 34.00
Black
7-2 17611-90J00 Water Pressure Valve Cover 1 $ 34.00
8 17660-99E01 Water Pressure Valve 1 $ 17.21
9-1 17670-90J01 Thermostat (60c) 2 $ 62.65
Standard
9-2 17670-90J11 Thermostat (71c) 1 $ 62.65
Optional
10 17681-93J00 Thermostat Cover 2 $ 21.38
11 17711-90J00 Water Hose 3 Way 1 $ 4.14
12 17712-93J01 HOSE,WATER(3 WA 1 $ 17.00
13 09116-06121 Bolt (6x25) 2 $ 2.72
14 09280-26006 O-Ring 1 $ 2.80
15 09320-12093 CUSHION 1 $ 1.55
16 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:600->60
17 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:120->120
18 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:600->190
19 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:600->300
20 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:600->330
21 09352-50006-600 Hose (5x9x600) 1 $ 7.60
22 09352-50006-600 Hose (5x9x600) 1 $ 7.60
23 09352-50006-00B Hose (5x9x2000) 1 $ 17.89
L:2000->850
24 09352-50006-00B Hose (5x9x2000) 1 $ 17.89
L:2000->1010
25 01550-08127 BOLT 8 X 12 1 $ 2.84
26 09367-06002 3 Way 1 $ 2.65
27 09401-08413 Clip 18 $ 2.09
28 09401-14409 Clip 2 $ 1.58
29 09401-25406 Clip 4 $ 3.57
30 09403-25304 Clamp (NLA) 1 $ 1.57

Not Available

31 09408-00008 Clamp 1 $ 2.13
32 09408-00056 Clip 1 $ 2.67
33 01550-06207 BOLT 6 $ 2.33
34 01550-06207 BOLT 4 $ 2.33
35 01550-06257 BOLT 10 $ 2.33
36 17713-98J01 HOLDER,WATER HO 1 $ 4.94
37 09401-15414 Clip 2 $ 2.34
38 17915-98J02 HOSE,WATER FLUS 1 $ 20.80
39 09408-00024 Clamp 1 $ 1.52
40 09408-00021 Clamp (NLA) 1 $ 0.85

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
