Suzuki DF 250S Parts Listings - 2015
S/N 25004F-510001 to 25004F-51XXXX

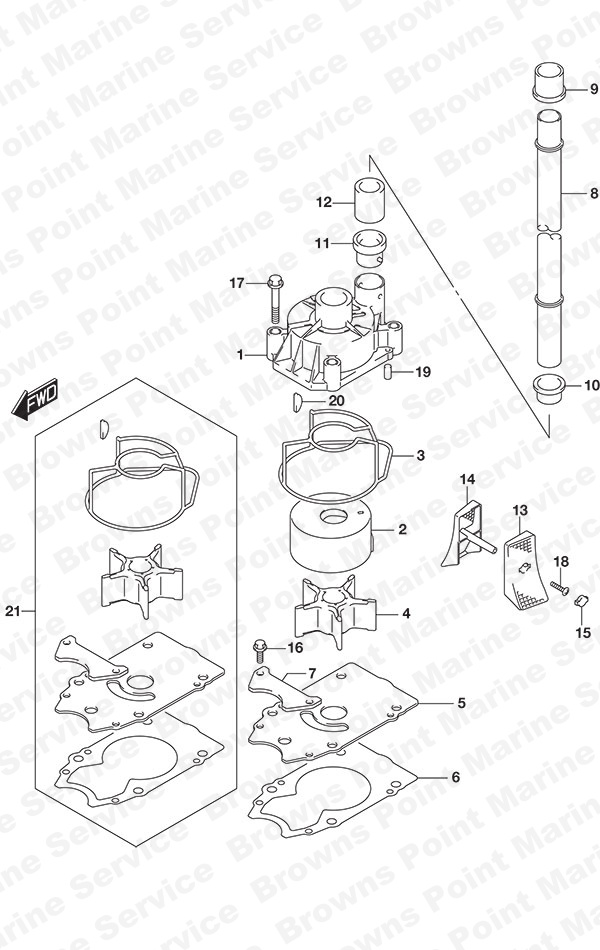

Fig. 160G - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-93J01 Water Pump Case
SKU: 17410-93J01 Weight: 0.420000 Brand: Price: $ 70.53 |
Water Pump Case | 1 | $ 70.53 | ||
| 2 | 17413-93J02 Water Pump Case Sleeve
SKU: 17413-93J02 Weight: 0.250000 Brand: Price: $ 22.00 |
Water Pump Case Sleeve | 1 | $ 22.00 | ||
| 3 | 17416-93J01 Water Pump Seal Ring
SKU: 17416-93J01 Weight: 0.060000 Brand: Price: $ 6.92 |
Water Pump Seal Ring | 1 | $ 6.92 | ||
| 4 | 17461-93J01 IMPELLER,WATER
SKU: 17461-93J01 Weight: 0.000000 Brand: Price: $ 28.97 |
IMPELLER,WATER | 1 | $ 28.97 | ||
| 5 | 17471-98J01 Water Pump Plate
SKU: 17471-98J01 Weight: 0.320000 Brand: Price: $ 14.24 |
Water Pump Plate | 1 | $ 14.24 | ||
| 6 | 17472-98J00 Water Pump Plate Gasket
SKU: 17472-98J00 Weight: 0.060000 Brand: Price: $ 8.94 |
Water Pump Plate Gasket | 1 | $ 8.94 | ||
| 7 | 17473-98J00 Water Pump Plate No. 2
SKU: 17473-98J00 Weight: 0.250000 Brand: Price: $ 8.95 |
Water Pump Plate No. 2 | 1 | $ 8.95 | ||
| 8 | 17561-93J21 Water Tube (L)
SKU: 17561-93J21 Weight: 0.500000 Brand: Price: $ 27.94 |
Water Tube (L) | 1 | $ 27.94 | Type: L | |
| 9 | 17562-93J01 Upper Water Tube Bushing
SKU: 17562-93J01 Weight: 0.125000 Brand: Price: $ 3.11 |
Upper Water Tube Bushing | 1 | $ 3.11 | ||
| 10 | 17563-93J01 Lower Water Tube Bushing
SKU: 17563-93J01 Weight: 0.060000 Brand: Price: $ 3.04 |
Lower Water Tube Bushing | 1 | $ 3.04 | ||
| 11 | 17564-93J01 Water Pump Case Bushing
SKU: 17564-93J01 Weight: 0.060000 Brand: Price: $ 3.23 |
Water Pump Case Bushing | 1 | $ 3.23 | ||
| 12 | 17612-93J00 Water Tube Spacer
SKU: 17612-93J00 Weight: 0.060000 Brand: Price: $ 5.26 |
Water Tube Spacer | 1 | $ 5.26 | ||
| 13 | 17631-98J10 Port Side Water Filter
SKU: 17631-98J10 Weight: 0.060000 Brand: Price: $ 10.07 |
Port Side Water Filter | 1 | $ 10.07 | ||
| 14 | 17632-98J10 Starboard Side Water Filter
SKU: 17632-98J10 Weight: 0.060000 Brand: Price: $ 10.07 |
Starboard Side Water Filter | 1 | $ 10.07 | ||
| 15 | 17633-98J00 Water Filter Cover
SKU: 17633-98J00 Weight: 0.060000 Brand: Price: $ 5.59 |
Water Filter Cover | 1 | $ 5.59 | ||
| 16 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 17 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 18 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 1 | $ 2.21 | ||
| 19 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 20 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
| 21 | 17400-98J06 Water Pump Repair Kit DF300/250AP
SKU: 17400-98J06 Weight: 1.000000 Brand: Price: $ 66.42 |
Water Pump Repair Kit DF300/250AP | 1 | $ 66.42 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
