Suzuki DF 200AP Parts Listings - 2015
S/N 20003P-510001 to 20003P-51XXXX

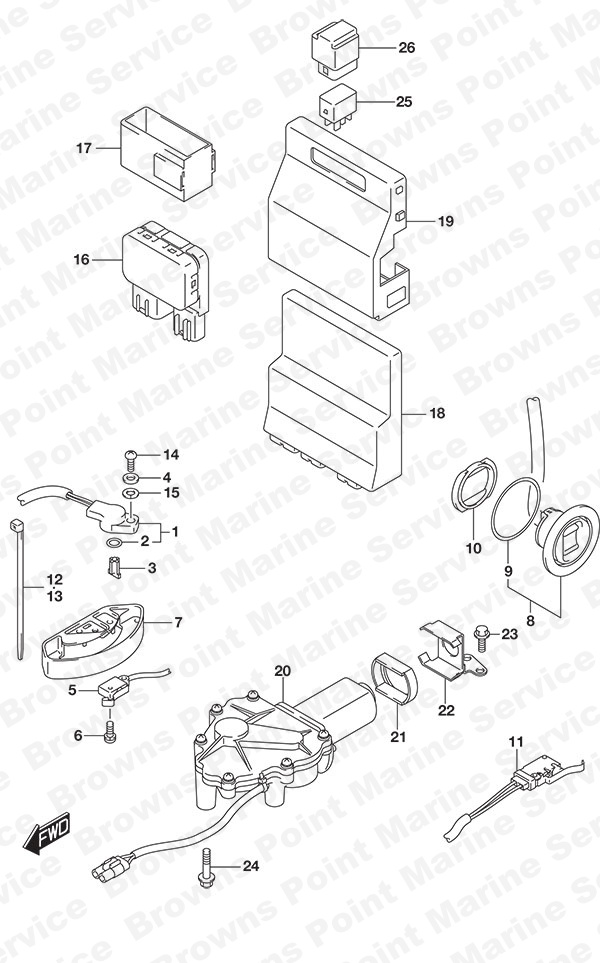

Fig. 326 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13580-98J03 Shift Position Sensor Assembly
SKU: 13580-98J03 Weight: 0.100000 Brand: Price: $ 190.66 |
Shift Position Sensor Assembly | 1 | $ 190.66 | ||
| 2 | 13575-40F00 O-Ring
SKU: 13575-40F00 Weight: 0.062500 Brand: Price: $ 4.30 |
O-Ring | 1 | $ 4.30 | ||
| 3 | 37729-96L00 Shift Sensor Lever
SKU: 37729-96L00 Weight: 0.060000 Brand: Price: $ 2.18 |
Shift Sensor Lever | 1 | $ 2.18 | ||
| 4 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 5 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 6 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 7 | 37725-93J11 Switch Assembly Cover
SKU: 37725-93J11 Weight: 0.125000 Brand: Price: $ 9.56 |
Switch Assembly Cover | 1 | $ 9.56 | ||
| 8 | 37850-92J00 PTT Switch Assembly
SKU: 37850-92J00 Weight: 0.250000 Brand: Price: $ 101.06 |
PTT Switch Assembly | 1 | $ 101.06 | ||
| 9 | 37856-92J00 PTT Switch Tape
SKU: 37856-92J00 Weight: 0.125000 Brand: Price: $ 3.89 |
PTT Switch Tape | 1 | $ 3.89 | ||
| 10 | 37857-92J01 PTT Switch Bushing
SKU: 37857-92J01 Weight: 0.200000 Brand: Price: $ 2.90 |
PTT Switch Bushing | 1 | $ 2.90 | ||
| 11 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 12 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 13 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 14 | 07130-05167 BOLT
SKU: 07130-05167 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 1 | $ 2.72 | ||
| 15 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 16 | 38410-93J21 PTT Relay Assembly
SKU: 38410-93J21 Weight: 0.500000 Brand: Price: $ 117.55 |
PTT Relay Assembly | 1 | $ 117.55 | ||
| 17 | 38415-93J20 PTT Relay Holder
SKU: 38415-93J20 Weight: 0.100000 Brand: Price: $ 9.12 |
PTT Relay Holder | 1 | $ 9.12 | ||
| 18 | 33920-96LD0 Engine Control Unit
SKU: 33920-96LD0 Weight: 1.000000 Brand: Price: $ 1,542.32 |
Engine Control Unit | 1 | $ 1,542.32 | ||
| 19 | 33925-98J00 ECU Cushion
SKU: 33925-98J00 Weight: 0.100000 Brand: Price: $ 22.02 |
ECU Cushion | 1 | $ 22.02 | ||
| 20 | 38890-98J12 Shift Actuator Assembly
SKU: 38890-98J12 Weight: 4.000000 Brand: Price: $ 676.19 |
Shift Actuator Assembly | 1 | $ 676.19 | ||
| 21 | 38892-98J01 Shift Actuator Damper
SKU: 38892-98J01 Weight: 0.060000 Brand: Price: $ 3.79 |
Shift Actuator Damper | 1 | $ 3.79 | ||
| 22 | 38895-98J00 Shift Actuator Bracket
SKU: 38895-98J00 Weight: 0.250000 Brand: Price: $ 29.65 |
Shift Actuator Bracket | 1 | $ 29.65 | ||
| 23 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 24 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 25 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 2 | $ 36.31 | ||
| 26 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 2 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
