Suzuki DF 200A Parts Listings - 2015
S/N 20003F-510001 to 20003F-51XXXX
S/N 20003Z-510001 to 20003Z-51XXXX

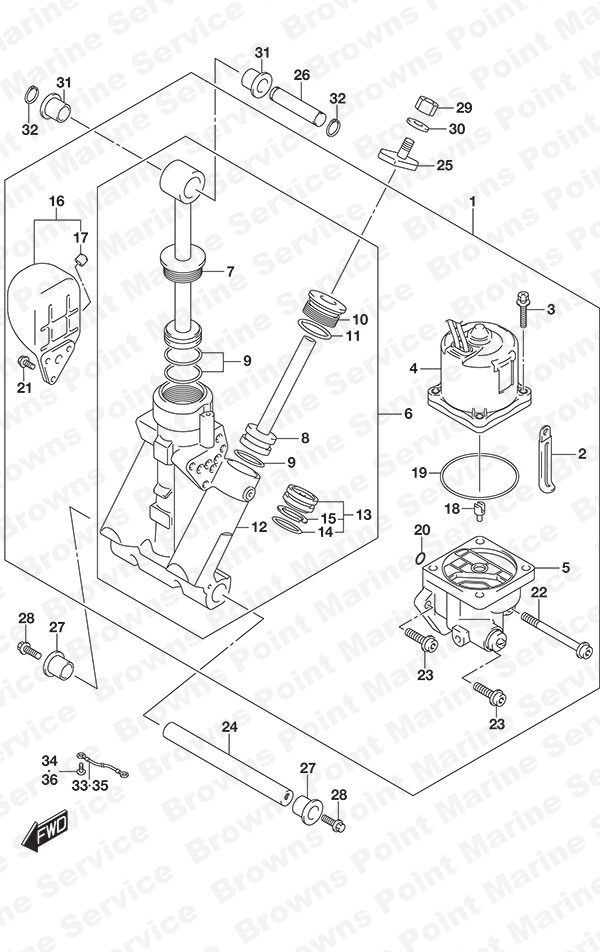

Fig. 337 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-96J15 Power Tilt & Trim Assembly
SKU: 48000-96J15 Weight: 20.000000 Brand: Price: $ 2,023.70 |
Power Tilt & Trim Assembly | 1 | $ 2,023.70 | ||
| 2 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 3 | 31281-92J10 Through Bolt
SKU: 31281-92J10 Weight: 0.060000 Brand: Price: $ 11.61 |
Through Bolt | 4 | $ 11.61 | ||
| 4 | 38100-96J13 PTT Motor Assembly
SKU: 38100-96J13 Weight: 0.000000 Brand: Price: $ 486.66 |
PTT Motor Assembly | 1 | $ 486.66 | ||
| 5 | 48502-96J05 PTT Pump Assembly
SKU: 48502-96J05 Weight: 2.000000 Brand: Price: $ 698.79 |
PTT Pump Assembly | 1 | $ 698.79 | ||
| 6 | 48503-96J05 MANIFOLD SUB AS
SKU: 48503-96J05 Weight: 0.000000 Brand: Price: $ 2,575.16 |
MANIFOLD SUB AS | 1 | $ 2,575.16 | ||
| 7 | 48401-96J02 Piston Assembly
SKU: 48401-96J02 Weight: 2.000000 Brand: Price: $ 299.73 |
Piston Assembly | 1 | $ 299.73 | ||
| 8 | 48601-94900 Piston & Ram Assembly
SKU: 48601-94900 Weight: 1.000000 Brand: Price: $ 229.26 |
Piston & Ram Assembly | 2 | $ 229.26 | ||
| 9 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 3 | $ 7.63 | ||
| 10 | 48630-96J04 Trim Cylinder Head
SKU: 48630-96J04 Weight: 0.250000 Brand: Price: $ 93.25 |
Trim Cylinder Head | 2 | $ 93.25 | ||
| 11 | 48633-94900 O-Ring Set (Pack of 2)
SKU: 48633-94900 Weight: 0.060000 Brand: Price: $ 5.49 |
O-Ring Set (Pack of 2) | 2 | $ 5.49 | ||
| 12 | 48641-96J03 PTT Manifold
SKU: 48641-96J03 Weight: 5.000000 Brand: Price: $ 965.72 |
PTT Manifold | 1 | $ 965.72 | ||
| 13 | 48650-94900 Free Piston
SKU: 48650-94900 Weight: 0.260000 Brand: Price: $ 79.39 |
Free Piston | 1 | $ 79.39 | ||
| 14 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 15 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 | ||
| 16 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | ||
| 17 | 48572-95E00 Cap
SKU: 48572-95E00 Weight: 0.060000 Brand: Price: $ 19.06 |
Cap | 1 | $ 19.06 | ||
| 18 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 19 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 20 | 48588-94900 O-Ring (Pack of 6)
SKU: 48588-94900 Weight: 0.060000 Brand: Price: $ 4.95 |
O-Ring (Pack of 6) | 1 | $ 4.95 | ||
| 21 | 48861-92J01 Reservoir Bolt
SKU: 48861-92J01 Weight: 0.060000 Brand: Price: $ 10.88 |
Reservoir Bolt | 3 | $ 10.88 | ||
| 22 | 48862-92J20 Pump Bolt No. 1
SKU: 48862-92J20 Weight: 0.100000 Brand: Price: $ 15.52 |
Pump Bolt No. 1 | 1 | $ 15.52 | ||
| 23 | 48862-92J30 Pump Bolt No. 2
SKU: 48862-92J30 Weight: 0.060000 Brand: Price: $ 12.11 |
Pump Bolt No. 2 | 2 | $ 12.11 | ||
| 24 | 48121-92J00 Tilt Cylinder Lower Shaft
SKU: 48121-92J00 Weight: 0.500000 Brand: Price: $ 97.68 |
Tilt Cylinder Lower Shaft | 1 | $ 97.68 | ||
| 25 | 48311-96J20 Trim Cylinder Ram Pad
SKU: 48311-96J20 Weight: 0.125000 Brand: Price: $ 43.89 |
Trim Cylinder Ram Pad | 2 | $ 43.89 | ||
| 26 | 48321-87D03 Tilt Cylinder Upper Shaft
SKU: 48321-87D03 Weight: 0.500000 Brand: Price: $ 23.89 |
Tilt Cylinder Upper Shaft | 1 | $ 23.89 | ||
| 27 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 28 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 29 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 30 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 31 | 09306-17001 Bushing
SKU: 09306-17001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 32 | 09380-17009 Circlip
SKU: 09380-17009 Weight: 0.060000 Brand: Price: $ 2.07 |
Circlip | 2 | $ 2.07 | ||
| 33 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode | |
| 34 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 35 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | PTT to Anode | |
| 36 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 |
