Suzuki DF 200A Parts Listings - 2015
S/N 20003F-510001 to 20003F-51XXXX
S/N 20003Z-510001 to 20003Z-51XXXX

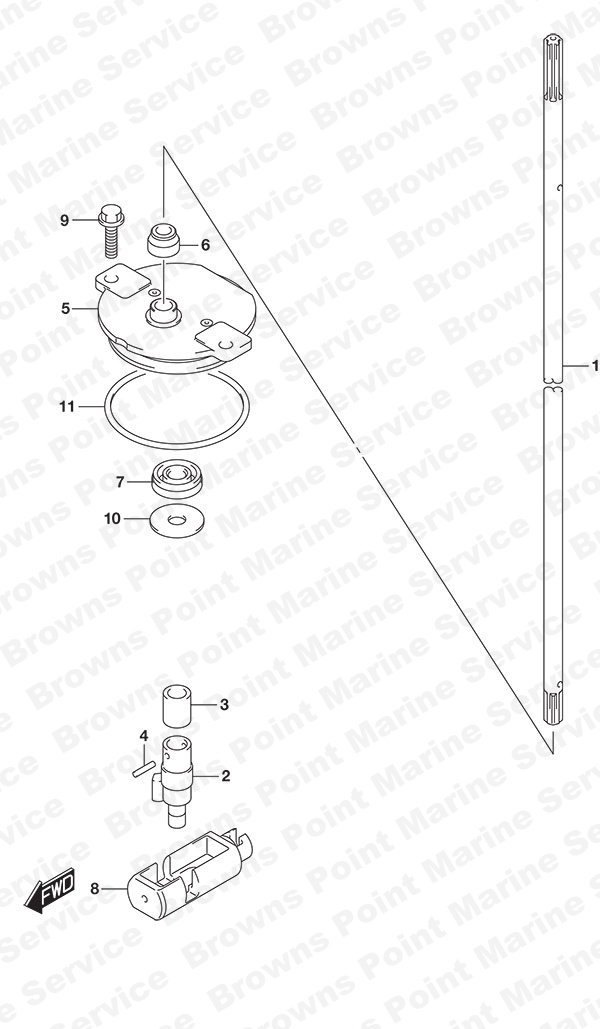

Fig. 206 - Clutch Rod

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 25111-96J00 Shift Rod (L) 1 $ 81.57
Type: L
1-2 25111-93J00 Shift Rod (L, X) 1 $ 78.44
Type: X
2 25131-93J00 Shifter Yoke 1 $ 50.72
3 25232-96302 Gear Case Magnet 1 $ 5.83
4 09205-02006 Spring Pin (2x12) 2 $ 1.07
5 25141-93J00 Shift Rod Guide Housing 1 $ 20.53
6 25223-96J00 Seal, Shift Rod Dust 1 $ 5.56
7 09282-08005 Shift Rod Guide Housing Oil Seal 1 $ 7.09
8 25321-93J00 Horizontal Shift Slider 1 $ 91.97
9 29116-93J00 Bolt (6x20) 2 $ 2.55
10 09160-08151 Shift Rod Washer 1 $ 2.00
11 09280-60007 O-Ring 1 $ 5.59

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
