Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-421001 to 14002F-11XXXX
S/N 14001Z-421001 to 14002Z-11XXXX

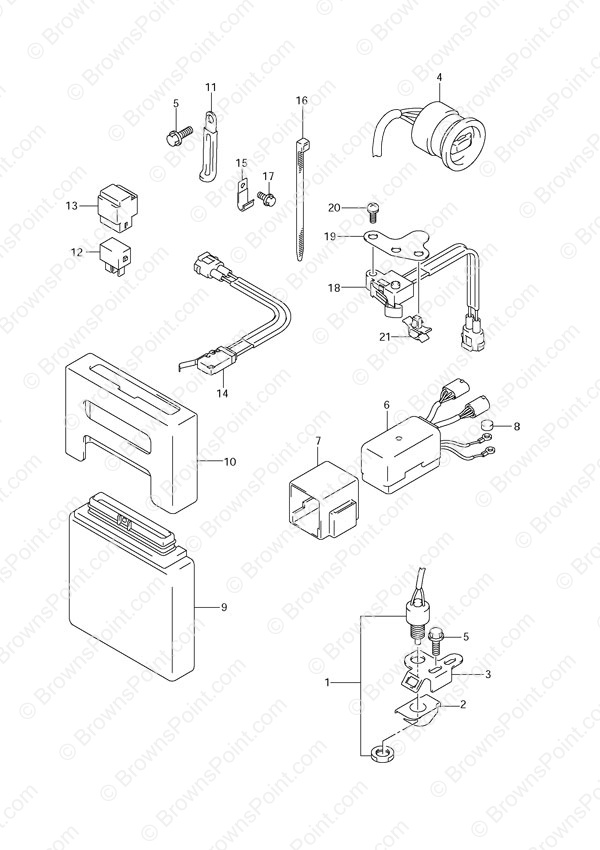

Fig. 34 - PTT Switch/Engine Control Unit 2004 to 2011
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37721-99E12 Neutral Switch Assembly
SKU: 37721-99E12 Weight: 0.120000 Brand: Price: $ 33.90 |
Neutral Switch Assembly | 1 | $ 33.90 | DF140T:682148 Older DF140Z:680233 Older | |
| 2 | 37725-95600 Switch Actuator
SKU: 37725-95600 Weight: 0.060000 Brand: Price: $ 5.35 |
Switch Actuator | 1 | $ 5.35 | DF140T:682148 Older DF140Z:680233 Older | |
| 3 | 37726-90J00 Switch Bracket
SKU: 37726-90J00 Weight: 0.060000 Brand: Price: $ 4.48 |
Switch Bracket | 1 | $ 4.48 | DF140T:682148 Older DF140Z:680233 Older | |
| 4 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 5 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | DF140T:682148 Older DF140Z:680233 Older | |
| 6 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 7 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 8 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 2 | $ 3.56 | ||
| 9 | 33920-92J54 Engine Control Unit
SKU: 33920-92J54 Weight: 2.000000 Brand: Price: $ 2,055.88 |
Engine Control Unit | 1 | $ 2,055.88 | ||
| 10 | 33925-87J00 ECU Cushion
SKU: 33925-87J00 Weight: 0.100000 Brand: Price: $ 20.42 |
ECU Cushion | 1 | $ 20.42 | ||
| 11 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 12 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 13 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 14 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 15 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 1 | $ 1.22 | DF140T:682148 Older DF140Z:680233 Older | |
| 16-1 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 16-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | DF140T:682149 Newer DF140Z:680234 Newer | |
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | DF140T:682148 Older DF140Z:680233 Older | |
| 18 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | DF140T:682149 Newer DF140Z:680234 Newer | |
| 19 | 37726-90J10 Switch Bracket
SKU: 37726-90J10 Weight: 0.060000 Brand: Price: $ 3.31 |
Switch Bracket | 1 | $ 3.31 | DF140T:682149 Newer DF140Z:680234 Newer | |
| 20 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | DF140T:682149 Newer DF140Z:680234 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
