Suzuki DF 175 Parts Listings
S/N 17502F-510001 to 17502F-51XXXX
S/N 17502Z-510001 to 17502Z-51XXXX

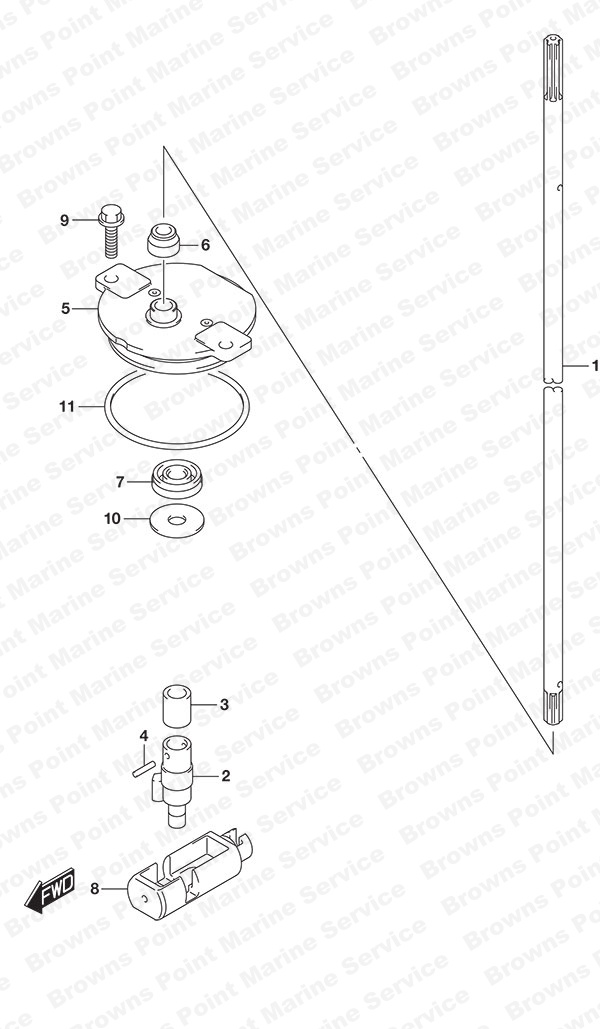

Fig. 206A - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 25111-96J00 Shift Rod (L)
SKU: 25111-96J00 Weight: 0.400000 Brand: Price: $ 81.57 |
Shift Rod (L) | 1 | $ 81.57 | Type: L | |
| 1-2 | 25111-93J00 Shift Rod (L, X)
SKU: 25111-93J00 Weight: 0.320000 Brand: Price: $ 78.44 |
Shift Rod (L, X) | 1 | $ 78.44 | Type: X | |
| 2 | 25131-93J00 Shifter Yoke
SKU: 25131-93J00 Weight: 0.060000 Brand: Price: $ 50.72 |
Shifter Yoke | 1 | $ 50.72 | ||
| 3-1 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 1 | $ 5.83 | DF 175T S/N 510393 Older DF 175Z S/N 510062 Older | |
| 3-2 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 2 | $ 5.83 | DF 175T S/N 510394 Newer DF 175Z S/N 510063 Newer | |
| 4 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 2 | $ 1.07 | ||
| 5 | 25141-93J00 Shift Rod Guide Housing
SKU: 25141-93J00 Weight: 0.120000 Brand: Price: $ 20.53 |
Shift Rod Guide Housing | 1 | $ 20.53 | ||
| 6 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.56 |
Seal, Shift Rod Dust | 1 | $ 5.56 | ||
| 7 | 09282-08005 Shift Rod Guide Housing Oil Seal
SKU: 09282-08005 Weight: 0.060000 Brand: Price: $ 7.09 |
Shift Rod Guide Housing Oil Seal | 1 | $ 7.09 | ||
| 8 | 25321-93J00 Horizontal Shift Slider
SKU: 25321-93J00 Weight: 0.250000 Brand: Price: $ 91.97 |
Horizontal Shift Slider | 1 | $ 91.97 | ||
| 9 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 10 | 09160-08151 Shift Rod Washer
SKU: 09160-08151 Weight: 0.060000 Brand: Price: $ 2.00 |
Shift Rod Washer | 1 | $ 2.00 | ||
| 11 | 09280-60007 O-Ring
SKU: 09280-60007 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
