Suzuki DF 175 Parts Listings
S/N 17502F-510001 to 17502F-51XXXX
S/N 17502Z-510001 to 17502Z-51XXXX

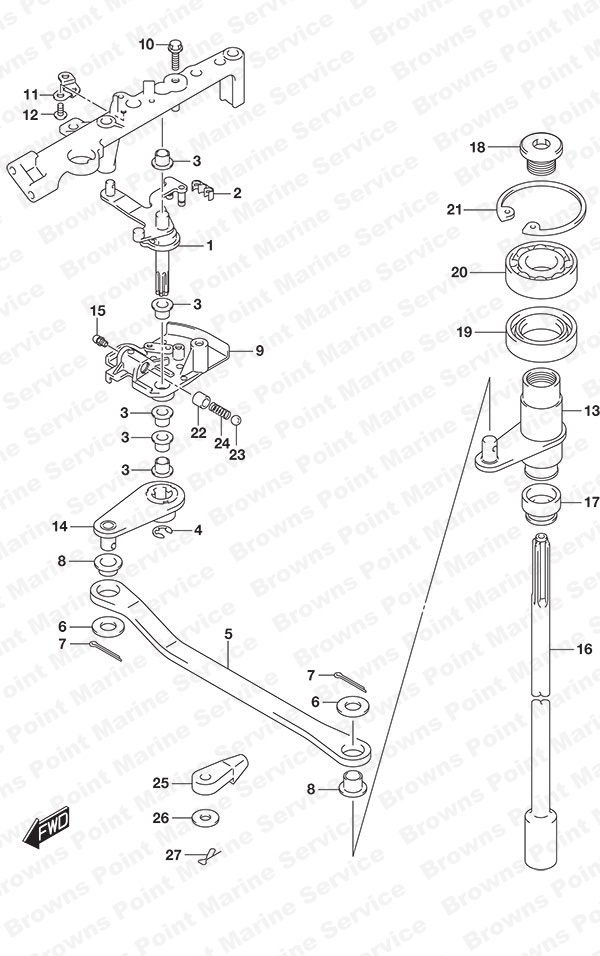

Fig. 204A - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21100-96J01 Clutch Lever
SKU: 21100-96J01 Weight: 0.250000 Brand: Price: $ 118.90 |
Clutch Lever | 1 | $ 118.90 | ||
| 2 | 21131-93J00 Clutch Lever Bushing
SKU: 21131-93J00 Weight: 0.060000 Brand: Price: $ 1.72 |
Clutch Lever Bushing | 1 | $ 1.72 | ||
| 3 | 09306-10001 Bushing
SKU: 09306-10001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 4 | $ 2.81 | ||
| 4 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 5 | 23115-96J00 Clutch Lever Link (NLA)
SKU: 23115-96J00 Weight: 0.200000 Brand: Price: $ 9.80 |
Clutch Lever Link (NLA) | 1 | $ 9.80 | ||
| 6 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 7 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 8 | 09306-06004 Bushing
SKU: 09306-06004 Weight: 0.060000 Brand: Price: $ 1.38 |
Bushing | 2 | $ 1.38 | ||
| 9 | 21151-96J00 Clutch Lever Holder
SKU: 21151-96J00 Weight: 0.100000 Brand: Price: $ 46.96 |
Clutch Lever Holder | 1 | $ 46.96 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 21155-93J00 Shift Lever Plate
SKU: 21155-93J00 Weight: 0.100000 Brand: Price: $ 3.42 |
Shift Lever Plate | 1 | $ 3.42 | ||
| 12 | 02142-05107 SCREW
SKU: 02142-05107 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 2 | $ 1.11 | ||
| 13 | 21210-93J01 Clutch Shaft
SKU: 21210-93J01 Weight: 0.250000 Brand: Price: $ 60.65 |
Clutch Shaft | 1 | $ 60.65 | ||
| 14 | 21230-93J01 Clutch Shaft Arm
SKU: 21230-93J01 Weight: 0.250000 Brand: Price: $ 33.83 |
Clutch Shaft Arm | 1 | $ 33.83 | ||
| 15 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 16-1 | 23111-96J00 Clutch Rod (L)
SKU: 23111-96J00 Weight: 5.000000 Brand: Price: $ 83.12 |
Clutch Rod (L) | 1 | $ 83.12 | Type: L | |
| 16-2 | 23111-93J00 Clutch Rod (X, XX)
SKU: 23111-93J00 Weight: 1.000000 Brand: Price: $ 84.47 |
Clutch Rod (X, XX) | 1 | $ 84.47 | Type: X | |
| 17 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.56 |
Seal, Shift Rod Dust | 1 | $ 5.56 | ||
| 18 | 09248-12011 Plug (12x9)
SKU: 09248-12011 Weight: 0.250000 Brand: Price: $ 4.96 |
Plug (12x9) | 1 | $ 4.96 | ||
| 19 | 09289-18001 Clutch Shaft Seal
SKU: 09289-18001 Weight: 0.060000 Brand: Price: $ 22.80 |
Clutch Shaft Seal | 1 | $ 22.80 | ||
| 20 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 21 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.27 |
Circlip | 1 | $ 2.27 | ||
| 22 | 09205-10006 Pin (10.2x10)
SKU: 09205-10006 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (10.2x10) | 1 | $ 4.47 | ||
| 23 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 24 | 09440-07051 Spring
SKU: 09440-07051 Weight: 0.060000 Brand: Price: $ 1.60 |
Spring | 1 | $ 1.60 | ||
| 25 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 26 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 27 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
