Suzuki DF 175 Parts Listings
S/N 17502F-510001 to 17502F-51XXXX
S/N 17502Z-510001 to 17502Z-51XXXX

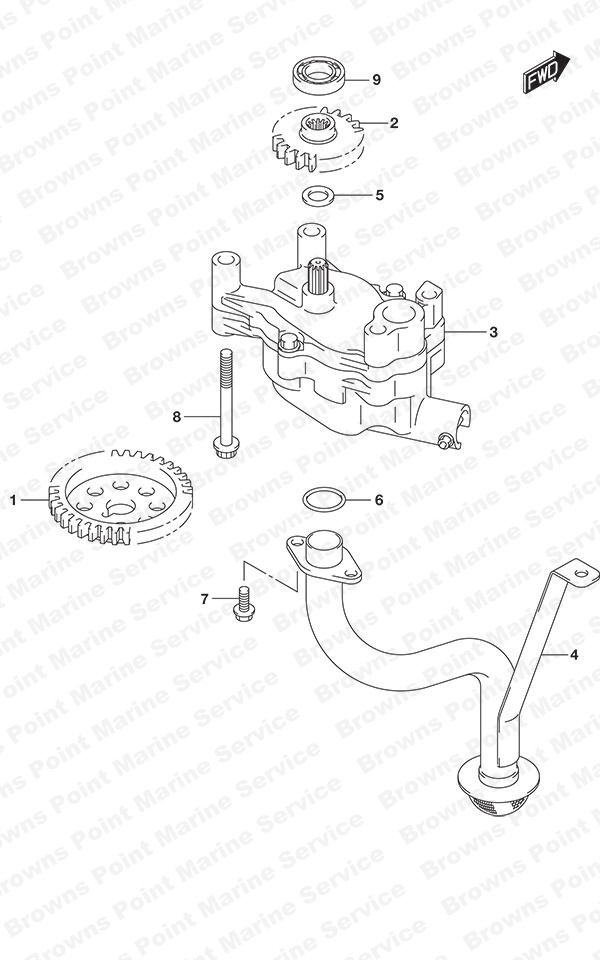

Fig. 175 - Oil Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 12632-96J00 Oil Pump Drive Gear 1 $ 62.36
2 16113-96J00 Oil Pump Driven Gear 1 $ 40.01
3 16400-96J00 Oil Pump Assembly 1 $ 224.08
4 16520-96J01 Oil Pump Strainer 1 $ 49.79
5 09181-12167 Thrust Washer 1 $ 2.27
6 09280-22020 O-Ring 2 $ 3.39
7 01550-0616A BOLT 3 $ 1.97
8 01550-0870A BOLT 4 $ 3.74
9 08110-60020 B1 15X32X9 BEAR 1 $ 16.29

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
