Suzuki DF 140AT Parts Listings
S/N 14003F-510001 to 14003F-51XXXX

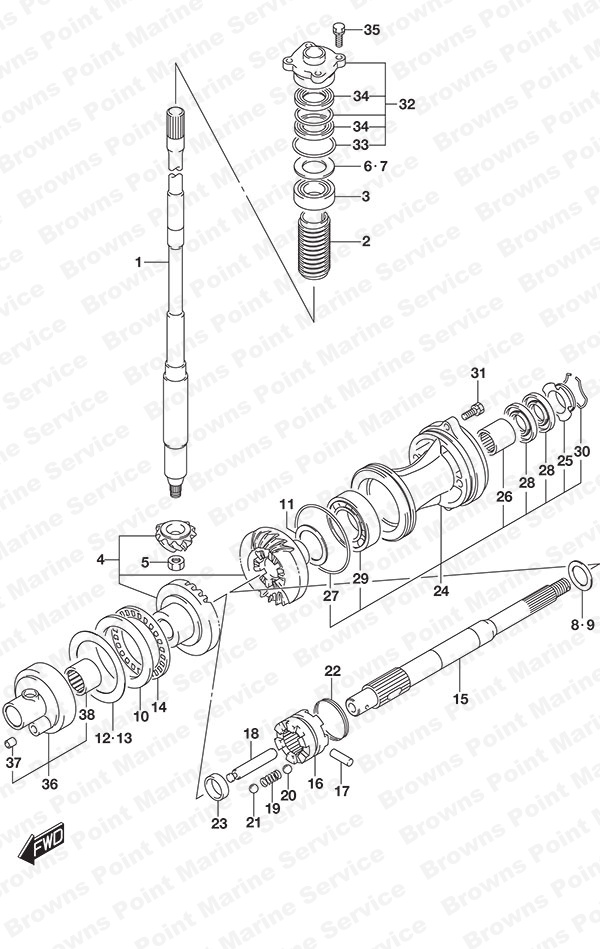

Fig. 220D - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-92J60 Drive Shaft (L)
SKU: 57110-92J60 Weight: 10.000000 Brand: Price: $ 556.26 |
Drive Shaft (L) | 1 | $ 556.26 | Type: L | |
| 1-2 | 57110-92J70 Drive Shaft (X)
SKU: 57110-92J70 Weight: 10.000000 Brand: Price: $ 676.01 |
Drive Shaft (X) | 1 | $ 676.01 | Type: X | |
| 2 | 57133-90J02 Drive Shaft Collar
SKU: 57133-90J02 Weight: 0.250000 Brand: Price: $ 15.04 |
Drive Shaft Collar | 1 | $ 15.04 | ||
| 3 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 4 | 57300-92862 Pinion & Gear Set
SKU: 57300-92862 Weight: 5.000000 Brand: Price: $ 573.05 |
Pinion & Gear Set | 1 | $ 573.05 | ||
| 5 | 09140-14024 Nut
SKU: 09140-14024 Weight: 0.060000 Brand: Price: $ 3.04 |
Nut | 1 | $ 3.04 | ||
| 6 | 57500-87873 Drive Shaft Shim Set
SKU: 57500-87873 Weight: 0.250000 Brand: Price: $ 40.67 |
Drive Shaft Shim Set | 1 | $ 40.67 | ||
| 7-1 | 09181-40186 Shim (0.50)
SKU: 09181-40186 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.50) | 1 | $ 4.06 | ||
| 7-2 | 09181-41002 Shim (0.55)
SKU: 09181-41002 Weight: 0.100000 Brand: Price: $ 5.52 |
Shim (0.55) | 1 | $ 5.52 | ||
| 7-3 | 09181-41003 Shim (0.60)
SKU: 09181-41003 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.60) | 1 | $ 6.73 | ||
| 7-4 | 09181-41004 Shim (0.65)
SKU: 09181-41004 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.65) | 1 | $ 6.73 | ||
| 7-5 | 09181-41005 Shim (0.70)
SKU: 09181-41005 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.70) | 1 | $ 6.73 | ||
| 7-6 | 09181-41006 Shim (0.75)
SKU: 09181-41006 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.75) | 1 | $ 6.73 | ||
| 7-7 | 09181-40190 Shim (0.80)
SKU: 09181-40190 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.80) | 1 | $ 4.06 | ||
| 7-8 | 09181-41008 Shim (0.85)
SKU: 09181-41008 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.85) | 1 | $ 6.73 | ||
| 7-9 | 09181-41009 Shim (0.90)
SKU: 09181-41009 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.90) | 1 | $ 6.73 | ||
| 7-10 | 09181-41010 Shim (0.95)
SKU: 09181-41010 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.95) | 1 | $ 6.73 | ||
| 7-11 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 7-12 | 09181-41012 Shim (1.05)
SKU: 09181-41012 Weight: 0.125000 Brand: Price: $ 6.73 |
Shim (1.05) | 1 | $ 6.73 | ||
| 7-13 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 7-14 | 09181-41014 Shim (1.15)
SKU: 09181-41014 Weight: 0.060000 Brand: Price: $ 6.73 |
Shim (1.15) | 1 | $ 6.73 | ||
| 8 | 57500-87861 Propeller Shaft Shim Set
SKU: 57500-87861 Weight: 0.250000 Brand: Price: $ 26.95 |
Propeller Shaft Shim Set | 1 | $ 26.95 | ||
| 9-1 | 08211-30382 Thrust Washer (1.50)
SKU: 08211-30382 Weight: 0.100000 Brand: Price: $ 3.42 |
Thrust Washer (1.50) | 1 | $ 3.42 | ||
| 9-2 | 09160-30036 Thrust Washer (1.70)
SKU: 09160-30036 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (1.70) | 1 | $ 4.66 | ||
| 9-3 | 09160-30037 Thrust Washer (1.90)
SKU: 09160-30037 Weight: 0.100000 Brand: Price: $ 4.57 |
Thrust Washer (1.90) | 1 | $ 4.57 | ||
| 9-4 | 09160-30038 Thrust Washer (2.10)
SKU: 09160-30038 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (2.10) | 1 | $ 4.66 | ||
| 9-5 | 09160-30039 Thrust Washer (2.30)
SKU: 09160-30039 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (2.30) | 1 | $ 4.66 | ||
| 9-6 | 09160-30041 Thrust Washer (2.40)
SKU: 09160-30041 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.40) | 1 | $ 5.54 | ||
| 9-7 | 09160-30042 Thrust Washer (2.60)
SKU: 09160-30042 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.60) | 1 | $ 5.54 | ||
| 9-8 | 09160-30043 Thrust Washer (2.70)
SKU: 09160-30043 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.70) | 1 | $ 5.54 | ||
| 9-9 | 09160-30044 Thrust Washer (2.80)
SKU: 09160-30044 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.80) | 1 | $ 5.54 | ||
| 10 | 09160-70002 Thrust Washer (5.25)
SKU: 09160-70002 Weight: 0.320000 Brand: Price: $ 58.89 |
Thrust Washer (5.25) | 1 | $ 58.89 | Fwd Gear | |
| 11-1 | 09181-45003 Shim (1.00)
SKU: 09181-45003 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | Rev Gear | |
| 11-2 | 09181-45004 Shim (1.10)
SKU: 09181-45004 Weight: 0.060000 Brand: Price: $ 4.99 |
Shim (1.10) | 1 | $ 4.99 | ||
| 11-3 | 09181-45005 Shim (1.20)
SKU: 09181-45005 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.20) | 1 | $ 3.57 | ||
| 11-4 | 09181-45006 Shim (1.30)
SKU: 09181-45006 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.30) | 1 | $ 3.64 | ||
| 11-5 | 09181-45007 Shim (1.40)
SKU: 09181-45007 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.40) | 1 | $ 3.57 | ||
| 11-6 | 09181-45008 Shim (1.50)
SKU: 09181-45008 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.50) | 1 | $ 3.64 | ||
| 11-7 | 09181-45009 Shim (1.60)
SKU: 09181-45009 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.60) | 1 | $ 3.57 | ||
| 12 | 57500-92813 Gear Shim Set
SKU: 57500-92813 Weight: 0.640000 Brand: Price: $ 74.08 |
Gear Shim Set | 1 | $ 74.08 | Fwd Gear | |
| 13-1 | 09181-70001 Shim (0.70)
SKU: 09181-70001 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.70) | 1 | $ 5.56 | Fwd Gear | |
| 13-2 | 09181-70002 Shim (0.80)
SKU: 09181-70002 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.80) | 1 | $ 5.56 | ||
| 13-3 | 09181-70003 Shim (0.90)
SKU: 09181-70003 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.90) | 1 | $ 5.56 | ||
| 13-4 | 09181-70004 Shim (1.00)
SKU: 09181-70004 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (1.00) | 1 | $ 5.56 | ||
| 13-5 | 09181-70006 Shim (0.60)
SKU: 09181-70006 Weight: 0.100000 Brand: Price: $ 6.25 |
Shim (0.60) | 1 | $ 6.25 | ||
| 13-6 | 09181-70009 Shim (0.65)
SKU: 09181-70009 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.65) | 1 | $ 7.45 | ||
| 13-7 | 09181-70010 Shim (0.75)
SKU: 09181-70010 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.75) | 1 | $ 7.45 | ||
| 13-8 | 09181-70011 Shim (0.85)
SKU: 09181-70011 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.85) | 1 | $ 7.45 | ||
| 13-9 | 09181-70012 Shim (0.95)
SKU: 09181-70012 Weight: 0.100000 Brand: Price: $ 11.89 |
Shim (0.95) | 1 | $ 11.89 | ||
| 13-10 | 09181-70008 Shim (0.55)
SKU: 09181-70008 Weight: 0.100000 Brand: Price: $ 7.55 |
Shim (0.55) | 1 | $ 7.55 | ||
| 14 | 09269-70001 Bearing (70x95x4.0)
SKU: 09269-70001 Weight: 0.180000 Brand: Price: $ 61.10 |
Bearing (70x95x4.0) | 1 | $ 61.10 | ||
| 15 | 57610-92J20 Propeller Shaft Assembly
SKU: 57610-92J20 Weight: 4.000000 Brand: Price: $ 417.09 |
Propeller Shaft Assembly | 1 | $ 417.09 | ||
| 16 | 57621-92J20 Clutch Dog Shifter
SKU: 57621-92J20 Weight: 0.900000 Brand: Price: $ 137.78 |
Clutch Dog Shifter | 1 | $ 137.78 | ||
| 17 | 09202-07002 Pin (7x48)
SKU: 09202-07002 Weight: 0.060000 Brand: Price: $ 4.25 |
Pin (7x48) | 1 | $ 4.25 | ||
| 18 | 57631-92J10 PIN,CONNECTOR
SKU: 57631-92J10 Weight: 0.000000 Brand: Price: $ 34.85 |
PIN,CONNECTOR | 1 | $ 34.85 | ||
| 19 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 20 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | No. 1 | |
| 21 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | No. 2 | |
| 22 | 09440-49004 Clutch Dog Spring
SKU: 09440-49004 Weight: 0.060000 Brand: Price: $ 3.09 |
Clutch Dog Spring | 1 | $ 3.09 | ||
| 23 | 57616-90J00 Clutch Dog Spacer
SKU: 57616-90J00 Weight: 0.100000 Brand: Price: $ 19.78 |
Clutch Dog Spacer | 1 | $ 19.78 | ||
| 24-1 | 56120-92J01-0EP Propeller Shaft Bearing Housing
SKU: 56120-92J01-0EP Weight: 4.000000 Brand: Price: $ 422.39 |
Propeller Shaft Bearing Housing | 1 | $ 422.39 | ||
| 24-2 | 56120-92J01-Y5S Propeller Shaft Bearing Housing
SKU: 56120-92J01-Y5S Weight: 4.000000 Brand: Price: $ 422.39 |
Propeller Shaft Bearing Housing | 1 | $ 422.39 | White | |
| 25 | 56123-92J00 Oil Seal Protector Washer
SKU: 56123-92J00 Weight: 0.060000 Brand: Price: $ 7.50 |
Oil Seal Protector Washer | 1 | $ 7.50 | ||
| 26 | 09263-30051 Bearing (30x37x26)
SKU: 09263-30051 Weight: 0.140000 Brand: Price: $ 32.73 |
Bearing (30x37x26) | 1 | $ 32.73 | ||
| 27 | 09280-97001 O-Ring
SKU: 09280-97001 Weight: 0.060000 Brand: Price: $ 4.24 |
O-Ring | 1 | $ 4.24 | ||
| 28 | 09282-30007 Oil Seal (30x50x6)
SKU: 09282-30007 Weight: 0.060000 Brand: Price: $ 8.06 |
Oil Seal (30x50x6) | 2 | $ 8.06 | ||
| 29 | 08113-62090 B1 45X85X19 BEA
SKU: 08113-62090 Weight: 0.920000 Brand: Price: $ 60.69 |
B1 45X85X19 BEA | 1 | $ 60.69 | ||
| 30 | 09387-52001 Set Ring (SUS)
SKU: 09387-52001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 31 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 32 | 56130-90J00 Drive Shaft Housing
SKU: 56130-90J00 Weight: 0.500000 Brand: Price: $ 85.65 |
Drive Shaft Housing | 1 | $ 85.65 | ||
| 33 | 09280-46004 O-Ring
SKU: 09280-46004 Weight: 0.060000 Brand: Price: $ 3.14 |
O-Ring | 1 | $ 3.14 | ||
| 34 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 35 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 36 | 56140-92J00 Forward Gear Bearing Housing
SKU: 56140-92J00 Weight: 1.000000 Brand: Price: $ 173.44 |
Forward Gear Bearing Housing | 1 | $ 173.44 | ||
| 37 | 09206-09012 Knock Pin
SKU: 09206-09012 Weight: 0.060000 Brand: Price: $ 3.72 |
Knock Pin | 1 | $ 3.72 | ||
| 38 | 09263-50001 Bearing (50x62x25)
SKU: 09263-50001 Weight: 0.250000 Brand: Price: $ 62.82 |
Bearing (50x62x25) | 1 | $ 62.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
