Suzuki DF 140A Parts Listings
S/N 14003F-510001 to 14003F-51XXXX
S/N 14003Z-510001 to 14003Z-51XXXX

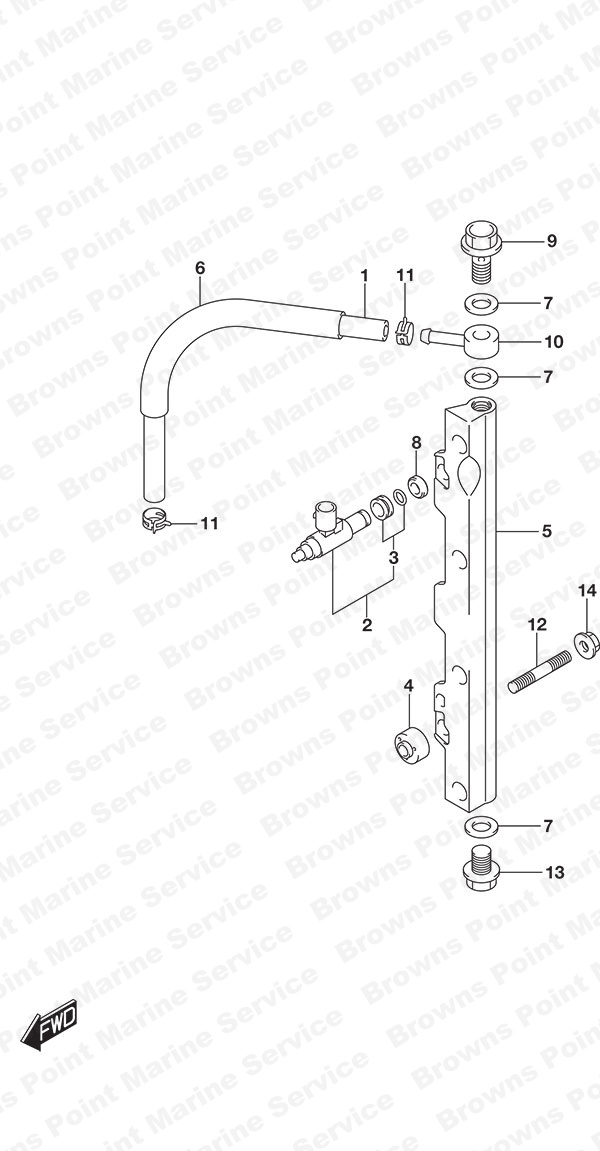

Fig. 144 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15681-92J01 HOSE,FUEL(SEPAR
SKU: 15681-92J01 Weight: 0.000000 Brand: Price: $ 18.26 |
HOSE,FUEL(SEPAR | 1 | $ 18.26 | Separator to Delivery Pipe | |
| 2 | 15710-82K50 Fuel Injector
SKU: 15710-82K50 Weight: 0.250000 Brand: Price: $ 220.53 |
Fuel Injector | 4 | $ 220.53 | ||
| 3 | 15716-65DT0 Grommet Set
SKU: 15716-65DT0 Weight: 0.060000 Brand: Price: $ 19.06 |
Grommet Set | 4 | $ 19.06 | ||
| 4 | 15735-58B00 Delivery Pipe Insulator
SKU: 15735-58B00 Weight: 0.250000 Brand: Price: $ 5.35 |
Delivery Pipe Insulator | 2 | $ 5.35 | ||
| 5 | 15751-92J00 Delivery Pipe
SKU: 15751-92J00 Weight: 2.000000 Brand: Price: $ 145.47 |
Delivery Pipe | 1 | $ 145.47 | ||
| 6 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->190 | |
| 7 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 8 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 9 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 10 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 1 | $ 16.69 | ||
| 11 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 2 | $ 3.46 | ||
| 12 | 01421-08407 BOLT,STUD
SKU: 01421-08407 Weight: 0.100000 Brand: Price: $ 3.17 |
BOLT,STUD | 2 | $ 3.17 | ||
| 13 | 01550-12167 BOLT
SKU: 01550-12167 Weight: 0.100000 Brand: Price: $ 3.89 |
BOLT | 1 | $ 3.89 | ||
| 14 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
