Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

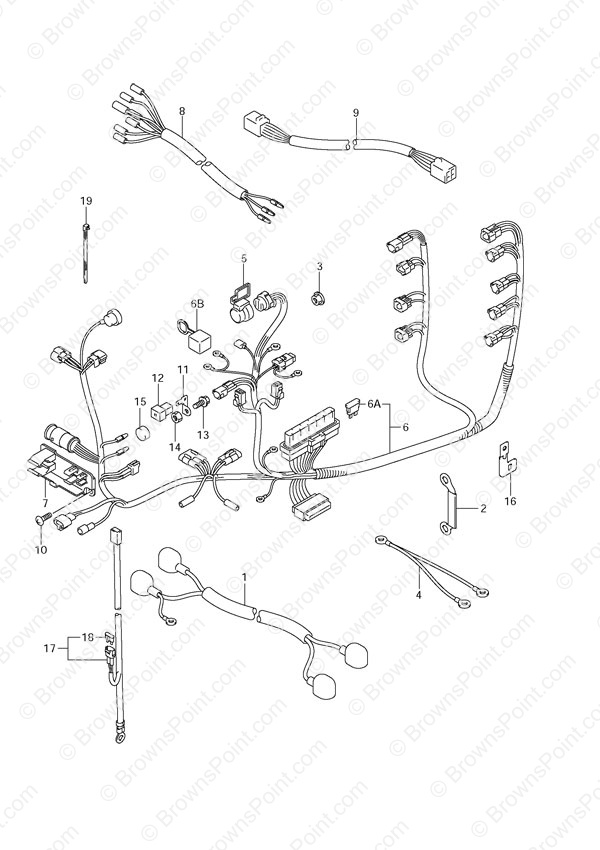

Fig. 32 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 173.78 |
CABLE ASSY,STAR | 1 | $ 173.78 | ||
| 2 | 33831-90J00 PTT Relay Plate
SKU: 33831-90J00 Weight: 0.100000 Brand: Price: $ 7.28 |
PTT Relay Plate | 1 | $ 7.28 | 2002 2003 | |
| 3 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 4 | 33832-90J00 Trim Relay Ground Cable (NLA)
SKU: 33832-90J00 Weight: 0.060000 Brand: Price: $ 12.06 |
Trim Relay Ground Cable (NLA) | 1 | $ 12.06 | 2002 2003 | |
| 5 | 33634-99E00 Service Connector Cap
SKU: 33634-99E00 Weight: 0.250000 Brand: Price: $ 7.63 |
Service Connector Cap | 1 | $ 7.63 | 2002 2007 | |
| 6-1 | 36610-90J00 Wiring Harness Assembly
SKU: 36610-90J00 Weight: 3.000000 Brand: Price: $ 653.12 |
Wiring Harness Assembly | 1 | $ 653.12 | ||
| 6-2 | 36610-90J20 Wiring Harness Assembly
SKU: 36610-90J20 Weight: 3.000000 Brand: Price: $ 672.73 |
Wiring Harness Assembly | 1 | $ 672.73 | 2003 | |
| 6-3 | 36610-90J30 Wiring Harness Assembly
SKU: 36610-90J30 Weight: 3.000000 Brand: Price: $ 522.74 |
Wiring Harness Assembly | 1 | $ 522.74 | 2004 | |
| 6-4 | 36610-90J61 Wiring Harness Assembly
SKU: 36610-90J61 Weight: 3.000000 Brand: Price: $ 486.26 |
Wiring Harness Assembly | 1 | $ 486.26 | 2005 to 2007 | |
| 6-5 | 36610-90J92 Wiring Harness Assembly
SKU: 36610-90J92 Weight: 3.000000 Brand: Price: $ 550.95 |
Wiring Harness Assembly | 1 | $ 550.95 | 2008 Newer | |
| 6A | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 2 | $ 2.33 | ||
| 6B | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | 2008 Newer | |
| 7-1 | 36616-90J00 Remocon Connector Holder (NLA)
SKU: 36616-90J00 Weight: 0.100000 Brand: Price: $ 5.24 |
Remocon Connector Holder (NLA) | 1 | $ 5.24 | ||
| 7-2 | 36616-90J10 Remocon Connector Holder
SKU: 36616-90J10 Weight: 0.250000 Brand: Price: $ 6.97 |
Remocon Connector Holder | 1 | $ 6.97 | 2005 Newer | |
| 8 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | 2002 to 2004 | |
| 9 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | 2002 to 2004 | |
| 10 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 11 | 36865-90J00 Main Fuse Terminal
SKU: 36865-90J00 Weight: 0.060000 Brand: Price: $ 8.91 |
Main Fuse Terminal | 2 | $ 8.91 | ||
| 12 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.71 |
60 Amp Fuse | 2 | $ 6.71 | ||
| 13 | 01570-06107 BOLT
SKU: 01570-06107 Weight: 0.060000 Brand: Price: $ 2.59 |
BOLT | 2 | $ 2.59 | ||
| 14 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 15 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 2 | $ 3.56 | ||
| 16 | 36617-90J00 Joint Connector Bracket
SKU: 36617-90J00 Weight: 0.060000 Brand: Price: $ 5.38 |
Joint Connector Bracket | 1 | $ 5.38 | 2004 Newer | |
| 17-1 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | L:3700 2005 Newer | |
| 17-2 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | Opt: L:6500 2005 Newer | |
| 18 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 | ||
| 19 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | 2005 Newer |
