Suzuki DF 90A Parts Listings - 2015
S/N 09003F-510001 to 09003F-51XXXX

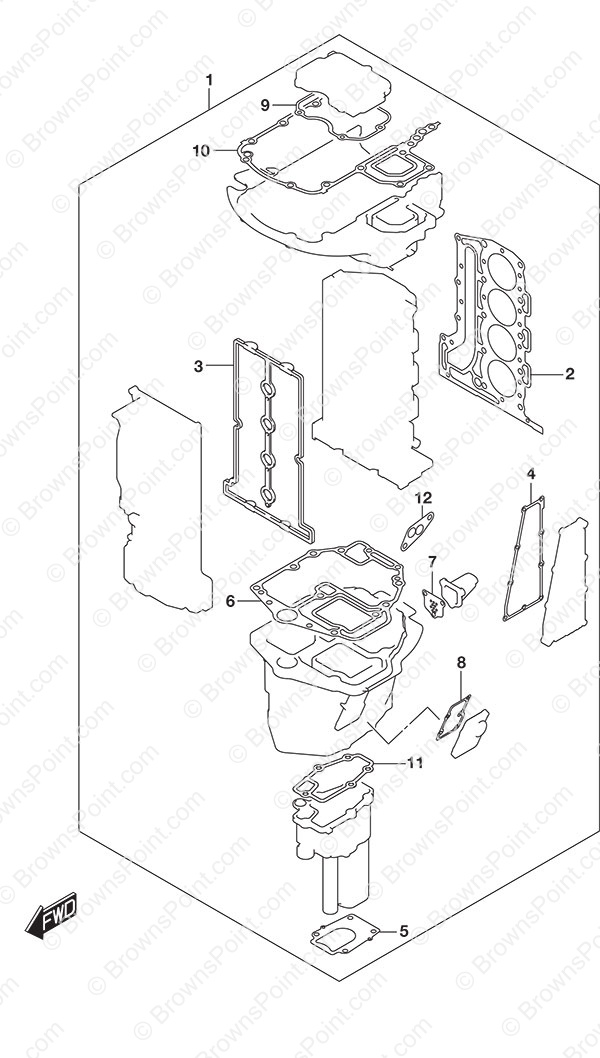

Fig. 585 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11410-87852 Gasket Set
SKU: 11410-87852 Weight: 5.000000 Brand: Price: $ 167.39 |
Gasket Set | 1 | $ 167.39 | ||
| 2 | 11141-87L00 Cylinder Head Gasket
SKU: 11141-87L00 Weight: 1.000000 Brand: Price: $ 96.46 |
Cylinder Head Gasket | 1 | $ 96.46 | ||
| 3 | 11189-87L00 Cylinder Head Cover Gasket
SKU: 11189-87L00 Weight: 0.120000 Brand: Price: $ 30.84 |
Cylinder Head Cover Gasket | 1 | $ 30.84 | ||
| 4 | 14151-87L00 Exhaust Cover Gasket
SKU: 14151-87L00 Weight: 0.060000 Brand: Price: $ 9.42 |
Exhaust Cover Gasket | 1 | $ 9.42 | ||
| 5 | 17472-87L00 Water Pump Plate Gasket
SKU: 17472-87L00 Weight: 0.060000 Brand: Price: $ 8.40 |
Water Pump Plate Gasket | 1 | $ 8.40 | ||
| 6 | 11489-87L00 Oil Pan Gasket
SKU: 11489-87L00 Weight: 0.220000 Brand: Price: $ 37.95 |
Oil Pan Gasket | 1 | $ 37.95 | ||
| 7 | 11542-87L00 Exhaust Tube Gasket
SKU: 11542-87L00 Weight: 0.100000 Brand: Price: $ 6.25 |
Exhaust Tube Gasket | 1 | $ 6.25 | ||
| 8 | 11552-87L00 Water Jacket Oil Pan Cover Gasket
SKU: 11552-87L00 Weight: 0.100000 Brand: Price: $ 4.47 |
Water Jacket Oil Pan Cover Gasket | 1 | $ 4.47 | ||
| 9 | 51123-87L00 Mount Case Cover Gasket
SKU: 51123-87L00 Weight: 0.200000 Brand: Price: $ 5.85 |
Mount Case Cover Gasket | 1 | $ 5.85 | ||
| 10 | 51211-87L10 Engine Holder Gasket
SKU: 51211-87L10 Weight: 0.200000 Brand: Price: $ 52.57 |
Engine Holder Gasket | 1 | $ 52.57 | ||
| 11 | 52331-87L00 Exhaust Tube Housing Gasket
SKU: 52331-87L00 Weight: 0.200000 Brand: Price: $ 10.05 |
Exhaust Tube Housing Gasket | 1 | $ 10.05 | ||
| 12 | 16539-87L00 Adapter Case Gasket
SKU: 16539-87L00 Weight: 0.100000 Brand: Price: $ 12.61 |
Adapter Case Gasket | 1 | $ 12.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
