Suzuki DF 90A Parts Listings - 2015
S/N 09003F-510001 to 09003F-51XXXX

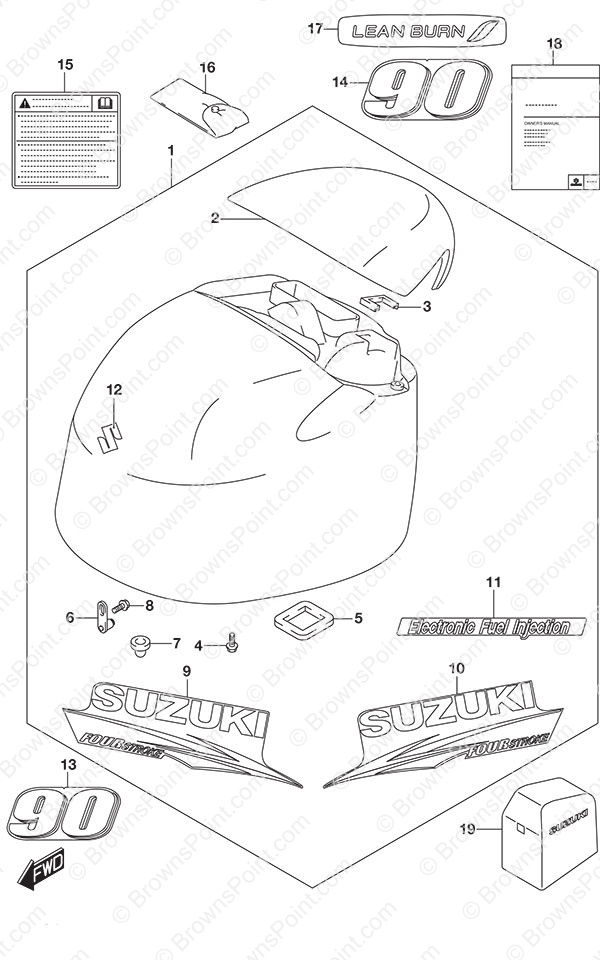

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61400-87Y80-0EP Engine Cover Set
SKU: 61400-87Y80-0EP Weight: 50.000000 Brand: Price: $ 1,293.36 |
Engine Cover Set | 1 | $ 1,293.36 | ||
| 1-2 | 61400-87Y90-Y5S Engine Cover Set
SKU: 61400-87Y90-Y5S Weight: 50.000000 Brand: Price: $ 1,353.73 |
Engine Cover Set | 1 | $ 1,353.73 | White | |
| 2-1 | 61431-87L21-0EP Tilt Up Handle
SKU: 61431-87L21-0EP Weight: 2.000000 Brand: Price: $ 245.36 |
Tilt Up Handle | 1 | $ 245.36 | ||
| 2-2 | 61431-87L21-Y5S Tilt Up Handle
SKU: 61431-87L21-Y5S Weight: 2.000000 Brand: Price: $ 216.25 |
Tilt Up Handle | 1 | $ 216.25 | White | |
| 3 | 61439-87L00 Tilt Up Handle Seal (NLA)
SKU: 61439-87L00 Weight: 0.200000 Brand: Price: $ 4.97 |
Tilt Up Handle Seal (NLA) | 1 | $ 4.97 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 5 | 61476-87L00 Air Vent Seal (NLA)
SKU: 61476-87L00 Weight: 0.200000 Brand: Price: $ 4.83 |
Air Vent Seal (NLA) | 1 | $ 4.83 | ||
| 6 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 2 | $ 12.24 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9-1 | 61443-87L21 STRIPE,ENG COVE
SKU: 61443-87L21 Weight: 0.000000 Brand: Price: $ 50.66 |
STRIPE,ENG COVE | 1 | $ 50.66 | For Black | |
| 9-2 | 61443-87L30 Starboard Engine Cover Stripe
SKU: 61443-87L30 Weight: 0.250000 Brand: Price: $ 47.80 |
Starboard Engine Cover Stripe | 1 | $ 47.80 | For White | |
| 10-1 | 61453-87L21 Port Engine Cover Stripe
SKU: 61453-87L21 Weight: 0.000000 Brand: Price: $ 46.29 |
Port Engine Cover Stripe | 1 | $ 46.29 | For Black | |
| 10-2 | 61453-87L30 Port Engine Cover Stripe
SKU: 61453-87L30 Weight: 0.250000 Brand: Price: $ 47.80 |
Port Engine Cover Stripe | 1 | $ 47.80 | For White | |
| 11-1 | 61446-87L13 DECAL,EFI
SKU: 61446-87L13 Weight: 0.000000 Brand: Price: $ 7.33 |
DECAL,EFI | 1 | $ 7.33 | For Black | |
| 11-2 | 61446-87L20 EFI Decal
SKU: 61446-87L20 Weight: 0.200000 Brand: Price: $ 5.52 |
EFI Decal | 1 | $ 5.52 | For White | |
| 12 | 68111-18G20 Emblem Mark 'S'
SKU: 68111-18G20 Weight: 0.060000 Brand: Price: $ 34.12 |
Emblem Mark 'S' | 1 | $ 34.12 | ||
| 13-1 | 61422-87L70 Emblem Mark (90)
SKU: 61422-87L70 Weight: 0.200000 Brand: Price: $ 9.24 |
Emblem Mark (90) | 1 | $ 9.24 | Front for Black | |
| 13-2 | 61435-87LA0 Emblem Mark (90)
SKU: 61435-87LA0 Weight: 0.125000 Brand: Price: $ 10.08 |
Emblem Mark (90) | 1 | $ 10.08 | Front for White | |
| 14-1 | 61435-87L70 Emblem Mark (90)
SKU: 61435-87L70 Weight: 0.200000 Brand: Price: $ 10.95 |
Emblem Mark (90) | 1 | $ 10.95 | Rear for Black | |
| 14-2 | 61435-87LA0 Emblem Mark (90)
SKU: 61435-87LA0 Weight: 0.125000 Brand: Price: $ 10.08 |
Emblem Mark (90) | 1 | $ 10.08 | Rear for White | |
| 15 | 61458-99E60 Engine Cover Label
SKU: 61458-99E60 Weight: 0.060000 Brand: Price: $ 9.12 |
Engine Cover Label | 1 | $ 9.12 | ||
| 16 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 17 | 61471-98J00 Lean Burn Decal
SKU: 61471-98J00 Weight: 0.250000 Brand: Price: $ 10.05 |
Lean Burn Decal | 1 | $ 10.05 | ||
| 18 | 99011-87L30-03B Owners Manual DF70A/80A/90A 510001~
SKU: 99011-87L30-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF70A/80A/90A 510001~ | 1 | $ 20.00 | ||
| 19 | 68110-87L00 Weather Cover
SKU: 68110-87L00 Weight: 2.000000 Brand: Price: $ 133.59 |
Weather Cover | 1 | $ 133.59 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
