Suzuki DF 90A Parts Listings - 2015
S/N 09003F-510001 to 09003F-51XXXX

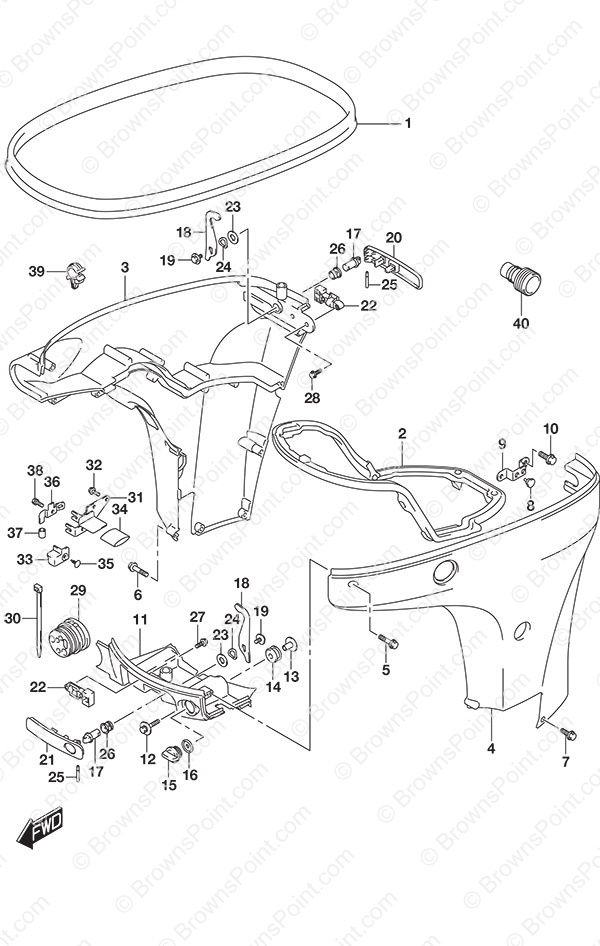

Fig. 410 - Side Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 61112-99E01 Side Cover Rubber Seal 1 $ 55.50
2 61134-87L01 SEAL,SIDE COVER 1 $ 47.06
3-1 61811-87L20-0EP Starboard Side Cover 1 $ 620.48
3-2 61811-87L20-Y5S Starboard Side Cover 1 $ 514.24
White
4-1 61821-87L21-0EP Port Side Cover 1 $ 625.08
4-2 61821-87L21-Y5S Port Side Cover 1 $ 523.94
White
5 09139-06249 SCREW 8 $ 1.96
6 09136-06149 Screw (6x55) 2 $ 3.71
7 09136-06161 Screw (6x17) 3 $ 3.16
8 09321-08026 CUSHION 2 $ 1.95
9 61827-87L00 Side Cover Holder (NLA) 1 $ 15.88
10 01550-08207 BOLT 2 $ 2.74
11-1 61831-87L20-0EP Front Panel 1 $ 169.36
11-2 61831-87L20-Y5S Front Panel 1 $ 169.36

Not Available

White
12 09116-08174 Bolt (8x38) 2 $ 4.19
13 09169-08039 Washer (8.5x30x1.5) (NLA) 2 $ 4.91

Not Available

14 09320-11023 CUSHION,FRONT P 2 $ 2.91
15 17913-93J00 Water Flush Plug 1 $ 4.56
16 17914-93J01 Water Flush Plug Gasket 1 $ 2.28
17 61632-93J00 Engine Cover Hook Shaft 2 $ 37.52
18 61641-87L00 Engine Cover Hook 2 $ 22.08
19 09116-06127 Bolt (6x12) 2 $ 2.98
20 61633-87L00 Rear Hook Lever 1 $ 44.87
21 61645-87L00 Front Hook Lever (NLA) 1 $ 36.74
22 61673-93J11 Hook Lever Latch 2 $ 14.60
23 09160-13014 Washer (13.2x25x1.0) 2 $ 2.99
24 09164-14008 Wave Washer 2 $ 2.04
25 09202-04022 Hook Lever Pin 2 $ 2.82
26 09306-13007 Bushing 2 $ 2.81
27 01550-05107 BOLT 2 $ 2.33
28 01550-05167 BOLT 2 $ 2.11
29 61124-87L00 Remocon Cable Grommet 1 $ 13.73

Not Available

30 09407-25402 Clamp (L:248) 1 $ 4.73
31 67341-87L00 Remocon Cable Holder 1 $ 49.77
32 01550-06167 BOLT 2 $ 2.33
33 67345-87L00 Protector 1 $ 6.00
34 67346-87L00 Protector Holder 1 $ 3.46

Not Available

35 09409-10304-5ES Clip 1 $ 2.11
36 67350-87L02 Remote Control Cable Stopper 1 $ 10.09
37 09352-70104-600 Hose (7x10.2x600) 2 $ 5.72
L:600->14
38 01570-06127 BOLT 1 $ 2.52
39 09403-11320 Clamp 1 $ 2.52
40 17917-87L00 Water Flush Connector 1 $ 10.07

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
