Suzuki DF 90A Parts Listings - 2015
S/N 09003F-510001 to 09003F-51XXXX

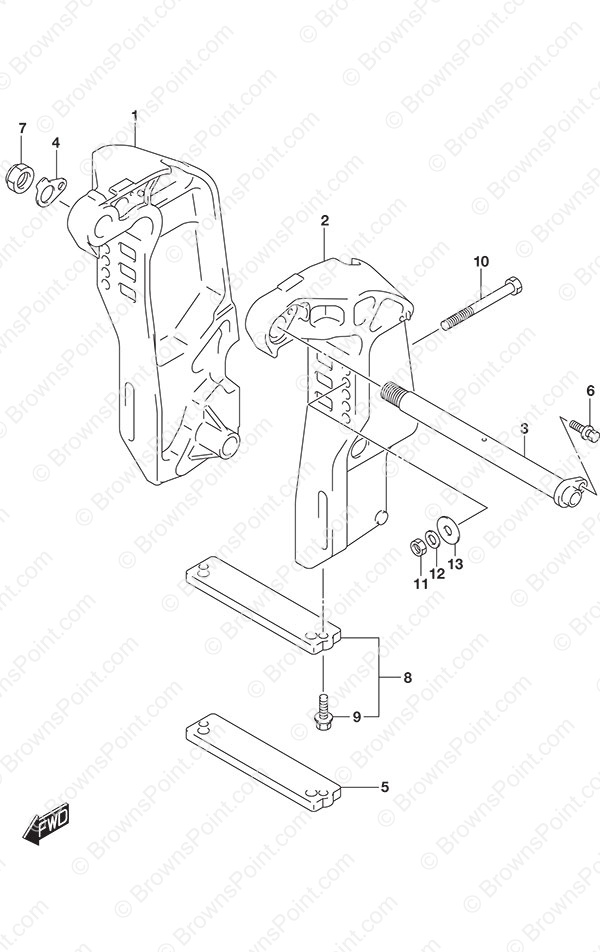

Fig. 335 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-87L10-0EP Starboard Clamp Bracket
SKU: 41111-87L10-0EP Weight: 5.000000 Brand: Price: $ 481.36 |
Starboard Clamp Bracket | 1 | $ 481.36 | ||
| 1-2 | 41111-88L10-Y5S Starboard Clamp Bracket
SKU: 41111-88L10-Y5S Weight: 10.000000 Brand: Price: $ 0.00 |
Starboard Clamp Bracket | 1 | $ 0.00 | ||
| 2-1 | 41121-87L10-0EP Port Clamp Bracket (NLA)
SKU: 41121-87L10-0EP Weight: 5.000000 Brand: Price: $ 379.87 |
Port Clamp Bracket (NLA) | 1 | $ 379.87 | ||
| 2-2 | 41121-87L10-Y5S Port Clamp Bracket
SKU: 41121-87L10-Y5S Weight: 5.000000 Brand: Price: $ 0.00 |
Port Clamp Bracket | 1 | $ 0.00 | ||
| 3 | 41130-87J11 Clamp Bracket Shaft
SKU: 41130-87J11 Weight: 2.000000 Brand: Price: $ 176.27 |
Clamp Bracket Shaft | 1 | $ 176.27 | ||
| 4 | 41135-93J11 Clamp Bracket Shaft Washer
SKU: 41135-93J11 Weight: 0.100000 Brand: Price: $ 4.86 |
Clamp Bracket Shaft Washer | 1 | $ 4.86 | ||
| 5 | 55321-94910 Magnesium Anode
SKU: 55321-94910 Weight: 0.300000 Brand: Price: $ 45.82 |
Magnesium Anode | 1 | $ 45.82 | Opt: Fresh Water Use Only | |
| 6 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 7 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 8 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 9 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 10-1 | 09100-12091 Transom Bolt (12x115)
SKU: 09100-12091 Weight: 0.250000 Brand: Price: $ 14.20 |
Transom Bolt (12x115) | 4 | $ 14.20 | ||
| 10-2 | 09100-12090 Transom Bolt (12x150)
SKU: 09100-12090 Weight: 0.250000 Brand: Price: $ 34.60 |
Transom Bolt (12x150) | 1 | $ 34.60 | Optional | |
| 11 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 12 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | ||
| 13 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
