Suzuki DF 90A Parts Listings - 2015
S/N 09003F-510001 to 09003F-51XXXX

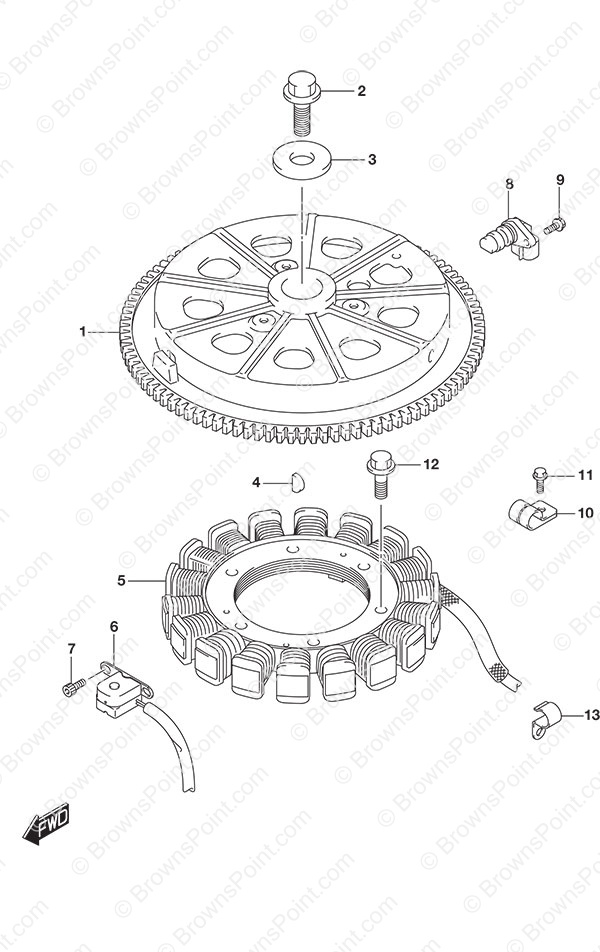

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-87L00 Flywheel
SKU: 32102-87L00 Weight: 10.000000 Brand: Price: $ 1,014.45 |
Flywheel | 1 | $ 1,014.45 | ||
| 2 | 09103-16004 Bolt (16x50)
SKU: 09103-16004 Weight: 0.125000 Brand: Price: $ 10.05 |
Bolt (16x50) | 1 | $ 10.05 | ||
| 3 | 09160-16047 Washer (16.5x48.5x4.5)
SKU: 09160-16047 Weight: 0.100000 Brand: Price: $ 6.09 |
Washer (16.5x48.5x4.5) | 1 | $ 6.09 | ||
| 4 | 09420-04008 Key
SKU: 09420-04008 Weight: 0.060000 Brand: Price: $ 3.48 |
Key | 1 | $ 3.48 | ||
| 5 | 32120-87L10 Battery Charging Coil
SKU: 32120-87L10 Weight: 2.000000 Brand: Price: $ 637.94 |
Battery Charging Coil | 1 | $ 637.94 | ||
| 6 | 32160-87L01 CKP/Ignition Timimg Coil
SKU: 32160-87L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 7 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | ||
| 8 | 33220-64L10 Cam Position Sensor
SKU: 33220-64L10 Weight: 0.250000 Brand: Price: $ 109.52 |
Cam Position Sensor | 1 | $ 109.52 | ||
| 9 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 1 | $ 1.66 | ||
| 10 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 11 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 09103-06211 Bolt (6x25)
SKU: 09103-06211 Weight: 0.060000 Brand: Price: $ 2.88 |
Bolt (6x25) | 3 | $ 2.88 | ||
| 13 | 09403-20301 Clamp
SKU: 09403-20301 Weight: 0.060000 Brand: Price: $ 1.55 |
Clamp | 1 | $ 1.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
