Suzuki DF 70A Parts Listings - 2015
S/N 07003F-510001 to 07003F-51XXXX

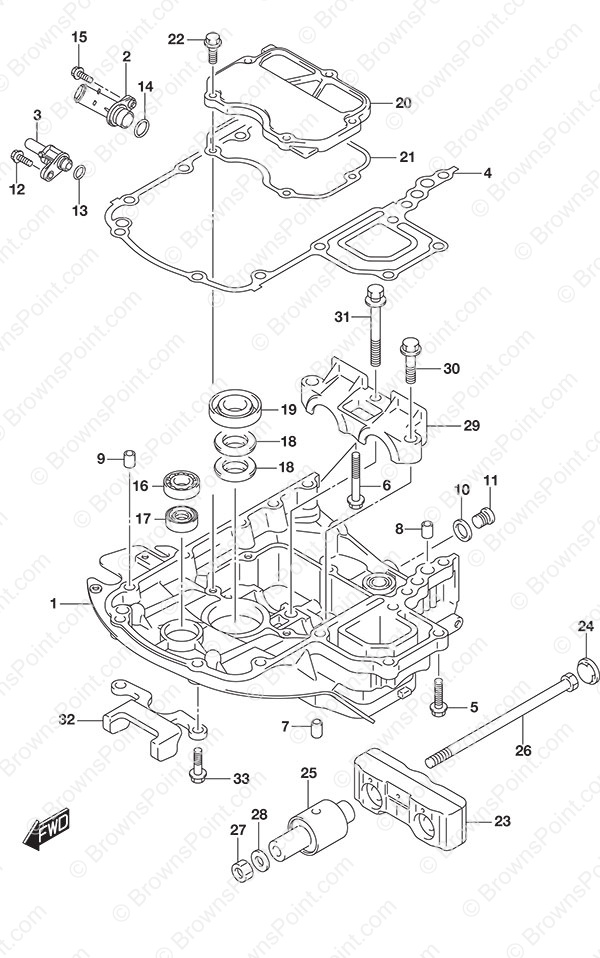

Fig. 401 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 51111-87L00-0EP Engine Holder (NLA)
SKU: 51111-87L00-0EP Weight: 5.000000 Brand: Price: $ 864.52 |
Engine Holder (NLA) | 1 | $ 864.52 | ||
| 1-2 | 51111-87L00-Y5S Engine Holder
SKU: 51111-87L00-Y5S Weight: 5.000000 Brand: Price: $ 0.00 |
Engine Holder | 1 | $ 0.00 | White | |
| 2 | 51115-87L00 Water Return Union
SKU: 51115-87L00 Weight: 0.250000 Brand: Price: $ 15.80 |
Water Return Union | 1 | $ 15.80 | ||
| 3 | 51117-87L00 Water Indicator Union
SKU: 51117-87L00 Weight: 0.200000 Brand: Price: $ 17.44 |
Water Indicator Union | 1 | $ 17.44 | ||
| 4 | 51211-87L10 Engine Holder Gasket
SKU: 51211-87L10 Weight: 0.200000 Brand: Price: $ 52.57 |
Engine Holder Gasket | 1 | $ 52.57 | ||
| 5 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 7 | $ 4.11 | ||
| 6 | 09116-08159 Bolt (8x55)
SKU: 09116-08159 Weight: 0.060000 Brand: Price: $ 3.89 |
Bolt (8x55) | 1 | $ 3.89 | ||
| 7 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 8 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 9 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 1 | $ 1.78 | ||
| 10 | 09160-18031 Exhaust Plug Gasket
SKU: 09160-18031 Weight: 0.060000 Brand: Price: $ 2.46 |
Exhaust Plug Gasket | 1 | $ 2.46 | ||
| 11 | 09248-18010 Exhaust Plug
SKU: 09248-18010 Weight: 0.080000 Brand: Price: $ 8.58 |
Exhaust Plug | 1 | $ 8.58 | ||
| 12 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 1 | $ 2.55 | ||
| 13 | 09280-11005 Shift Rod O-Ring
SKU: 09280-11005 Weight: 0.060000 Brand: Price: $ 4.43 |
Shift Rod O-Ring | 1 | $ 4.43 | ||
| 14 | 09280-20002 O-Ring
SKU: 09280-20002 Weight: 0.060000 Brand: Price: $ 1.94 |
O-Ring | 1 | $ 1.94 | ||
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 16 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 17 | 09289-18001 Clutch Shaft Seal
SKU: 09289-18001 Weight: 0.060000 Brand: Price: $ 22.80 |
Clutch Shaft Seal | 1 | $ 22.80 | ||
| 18 | 09282-22007 Oil Seal (22x36x6)
SKU: 09282-22007 Weight: 0.060000 Brand: Price: $ 13.97 |
Oil Seal (22x36x6) | 2 | $ 13.97 | ||
| 19 | 12281-87J00 Oil Seal (39.3x44x7)
SKU: 12281-87J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Oil Seal (39.3x44x7) | 1 | $ 16.42 | ||
| 20 | 51122-87L00 Mount Case Cover
SKU: 51122-87L00 Weight: 0.250000 Brand: Price: $ 83.76 |
Mount Case Cover | 1 | $ 83.76 | ||
| 21 | 51123-87L00 Mount Case Cover Gasket
SKU: 51123-87L00 Weight: 0.200000 Brand: Price: $ 5.85 |
Mount Case Cover Gasket | 1 | $ 5.85 | ||
| 22 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | ||
| 23 | 54120-87L10 Upper Thrust Mount (NLA)
SKU: 54120-87L10 Weight: 0.250000 Brand: Price: $ 133.67 |
Upper Thrust Mount (NLA) | 1 | $ 133.67 | ||
| 24 | 54122-87L00 Upper Thrust Mount Spacer
SKU: 54122-87L00 Weight: 0.200000 Brand: Price: $ 5.40 |
Upper Thrust Mount Spacer | 2 | $ 5.40 | ||
| 25 | 54130-87L00 Upper Mount
SKU: 54130-87L00 Weight: 0.500000 Brand: Price: $ 91.92 |
Upper Mount | 2 | $ 91.92 | ||
| 26 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 27 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 28 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 2 | $ 3.79 | ||
| 29-1 | 54137-87L00-0EP Upper Mount Cover (NLA)
SKU: 54137-87L00-0EP Weight: 0.500000 Brand: Price: $ 40.09 |
Upper Mount Cover (NLA) | 1 | $ 40.09 | ||
| 29-2 | 54137-87L00-Y5S Upper Mount Cover
SKU: 54137-87L00-Y5S Weight: 0.500000 Brand: Price: $ 0.00 |
Upper Mount Cover | 1 | $ 0.00 | White | |
| 30 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 2 | $ 6.81 | ||
| 31 | 09116-10147 Bolt (10x85) (NLA)
SKU: 09116-10147 Weight: 0.200000 Brand: Price: $ 19.91 |
Bolt (10x85) (NLA) | 1 | $ 19.91 | ||
| 32 | 54140-87L10 Upper Unit Stopper (NLA)
SKU: 54140-87L10 Weight: 0.500000 Brand: Price: $ 89.12 |
Upper Unit Stopper (NLA) | 1 | $ 89.12 | ||
| 33 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 2 | $ 7.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
