Suzuki DF 70A Parts Listings - 2015
S/N 07003F-510001 to 07003F-51XXXX

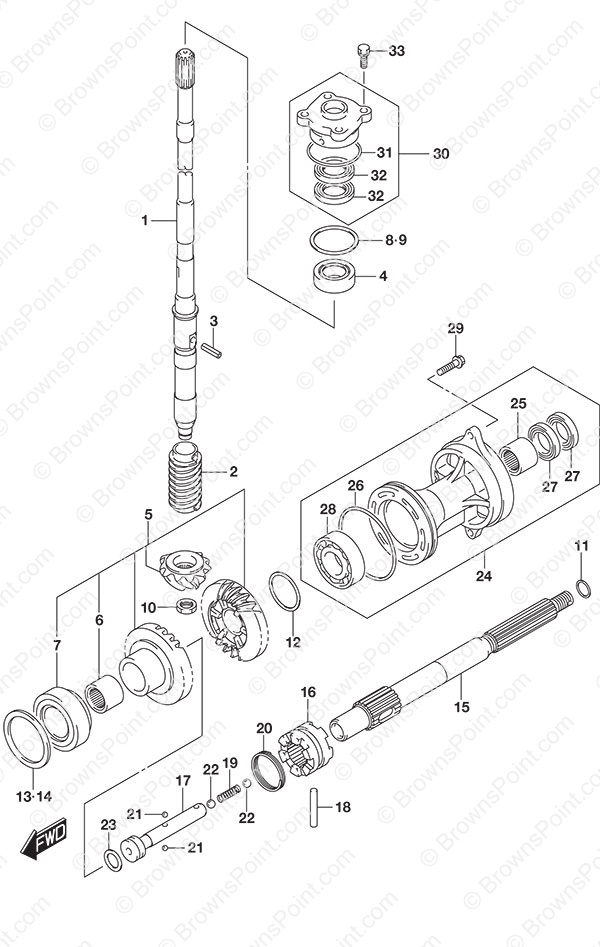

Fig. 220 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-87L20 Drive Shaft Assembly (L)
SKU: 57110-87L20 Weight: 10.000000 Brand: Price: $ 428.31 |
Drive Shaft Assembly (L) | 1 | $ 428.31 | Type: L | |
| 1-2 | 57110-87L30 Drive Shaft Assembly (X)
SKU: 57110-87L30 Weight: 10.000000 Brand: Price: $ 532.30 |
Drive Shaft Assembly (X) | 1 | $ 532.30 | Type: X | |
| 2 | 57133-87L01 Drive Shaft Collar
SKU: 57133-87L01 Weight: 0.250000 Brand: Price: $ 15.80 |
Drive Shaft Collar | 1 | $ 15.80 | ||
| 3 | 09205-05011 Spring Pin (5x14)
SKU: 09205-05011 Weight: 0.100000 Brand: Price: $ 1.40 |
Spring Pin (5x14) | 1 | $ 1.40 | ||
| 4 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 5 | 57300-87890 Pinion & Gear Set
SKU: 57300-87890 Weight: 5.000000 Brand: Price: $ 869.36 |
Pinion & Gear Set | 1 | $ 869.36 | ||
| 6 | 09263-25067 Bearing (25x32x26)
SKU: 09263-25067 Weight: 0.200000 Brand: Price: $ 33.34 |
Bearing (25x32x26) | 1 | $ 33.34 | ||
| 7 | 09265-40003 Bearing (40x75x26)
SKU: 09265-40003 Weight: 1.200000 Brand: Price: $ 135.74 |
Bearing (40x75x26) | 1 | $ 135.74 | ||
| 8 | 57500-87873 Drive Shaft Shim Set
SKU: 57500-87873 Weight: 0.250000 Brand: Price: $ 40.67 |
Drive Shaft Shim Set | 1 | $ 40.67 | ||
| 9-1 | 09181-40186 Shim (0.50)
SKU: 09181-40186 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.50) | 1 | $ 4.06 | ||
| 9-2 | 09181-41002 Shim (0.55)
SKU: 09181-41002 Weight: 0.100000 Brand: Price: $ 5.52 |
Shim (0.55) | 1 | $ 5.52 | ||
| 9-3 | 09181-41003 Shim (0.60)
SKU: 09181-41003 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.60) | 1 | $ 6.73 | ||
| 9-4 | 09181-41004 Shim (0.65)
SKU: 09181-41004 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.65) | 1 | $ 6.73 | ||
| 9-5 | 09181-41005 Shim (0.70)
SKU: 09181-41005 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.70) | 1 | $ 6.73 | ||
| 9-6 | 09181-41006 Shim (0.75)
SKU: 09181-41006 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.75) | 1 | $ 6.73 | ||
| 9-7 | 09181-40190 Shim (0.80)
SKU: 09181-40190 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.80) | 1 | $ 4.06 | ||
| 9-8 | 09181-41008 Shim (0.85)
SKU: 09181-41008 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.85) | 1 | $ 6.73 | ||
| 9-9 | 09181-41009 Shim (0.90)
SKU: 09181-41009 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.90) | 1 | $ 6.73 | ||
| 9-10 | 09181-41010 Shim (0.95)
SKU: 09181-41010 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.95) | 1 | $ 6.73 | ||
| 9-11 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 9-12 | 09181-41012 Shim (1.05)
SKU: 09181-41012 Weight: 0.125000 Brand: Price: $ 6.73 |
Shim (1.05) | 1 | $ 6.73 | ||
| 9-13 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 9-14 | 09181-41014 Shim (1.15)
SKU: 09181-41014 Weight: 0.060000 Brand: Price: $ 6.73 |
Shim (1.15) | 1 | $ 6.73 | ||
| 10 | 09140-14024 Nut
SKU: 09140-14024 Weight: 0.060000 Brand: Price: $ 3.04 |
Nut | 1 | $ 3.04 | ||
| 11-1 | 09181-25130 Shim (25x32x0.5)
SKU: 09181-25130 Weight: 0.060000 Brand: Price: $ 2.38 |
Shim (25x32x0.5) | 1 | $ 2.38 | Prop Shaft Rev Thrust | |
| 11-2 | 09181-25139 Shim (1.00)
SKU: 09181-25139 Weight: 0.100000 Brand: Price: $ 2.87 |
Shim (1.00) | 1 | $ 2.87 | ||
| 11-3 | 09181-25143 Shim (1.09)
SKU: 09181-25143 Weight: 0.100000 Brand: Price: $ 3.02 |
Shim (1.09) | 1 | $ 3.02 | ||
| 11-4 | 09181-25149 Shim (1.21)
SKU: 09181-25149 Weight: 0.100000 Brand: Price: $ 3.02 |
Shim (1.21) | 1 | $ 3.02 | ||
| 11-5 | 09181-25153 Shim (1.30)
SKU: 09181-25153 Weight: 0.100000 Brand: Price: $ 2.47 |
Shim (1.30) | 1 | $ 2.47 | ||
| 11-6 | 09181-25072 Washer (1.40)
SKU: 09181-25072 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (1.40) | 1 | $ 5.01 | ||
| 11-7 | 09181-25073 Washer (1.50)
SKU: 09181-25073 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (1.50) | 1 | $ 5.01 | ||
| 11-8 | 09181-25074 Washer (1.60)
SKU: 09181-25074 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (1.60) | 1 | $ 5.01 | ||
| 11-9 | 09181-25075 Washer (1.70)
SKU: 09181-25075 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (1.70) | 1 | $ 5.01 | ||
| 12-1 | 09181-40018 Shim (0.55)
SKU: 09181-40018 Weight: 0.100000 Brand: Price: $ 2.84 |
Shim (0.55) | 1 | $ 2.84 | Rev Gear | |
| 12-2 | 09181-40004 Shim (0.60)
SKU: 09181-40004 Weight: 0.060000 Brand: Price: $ 2.90 |
Shim (0.60) | 1 | $ 2.90 | ||
| 12-3 | 09181-40005 Shim (0.65)
SKU: 09181-40005 Weight: 0.100000 Brand: Price: $ 2.95 |
Shim (0.65) | 1 | $ 2.95 | ||
| 12-4 | 09181-40006 Shim (0.70)
SKU: 09181-40006 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.70) | 1 | $ 2.90 | ||
| 12-5 | 09181-40007 Shim (0.75)
SKU: 09181-40007 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.75) | 1 | $ 2.90 | ||
| 12-6 | 09181-40008 Shim (0.80)
SKU: 09181-40008 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.80) | 1 | $ 2.90 | ||
| 12-7 | 09181-40009 Shim (0.85)
SKU: 09181-40009 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.85) | 1 | $ 2.90 | ||
| 12-8 | 09181-40010 Shim (0.90)
SKU: 09181-40010 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.90) | 1 | $ 2.90 | ||
| 12-9 | 09181-40011 Shim (0.95)
SKU: 09181-40011 Weight: 0.100000 Brand: Price: $ 2.95 |
Shim (0.95) | 1 | $ 2.95 | ||
| 12-10 | 09181-40012 Shim (1.00)
SKU: 09181-40012 Weight: 0.100000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | ||
| 12-11 | 09181-40013 Shim (1.05)
SKU: 09181-40013 Weight: 0.100000 Brand: Price: $ 3.57 |
Shim (1.05) | 1 | $ 3.57 | ||
| 13 | 57500-87882 Forward Gear Shim Set
SKU: 57500-87882 Weight: 0.160000 Brand: Price: $ 49.01 |
Forward Gear Shim Set | 1 | $ 49.01 | Fwd Gear | |
| 14-1 | 09181-64002 Shim (0.55)
SKU: 09181-64002 Weight: 0.100000 Brand: Price: $ 7.35 |
Shim (0.55) | 1 | $ 7.35 | ||
| 14-2 | 09181-64003 Shim (0.60) (NLA)
SKU: 09181-64003 Weight: 0.100000 Brand: Price: $ 6.87 |
Shim (0.60) (NLA) | 1 | $ 6.87 | ||
| 14-3 | 09181-64004 Shim (0.65) (NLA)
SKU: 09181-64004 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.65) (NLA) | 1 | $ 4.43 | ||
| 14-4 | 09181-64005 Shim (0.70) (NLA)
SKU: 09181-64005 Weight: 0.100000 Brand: Price: $ 3.84 |
Shim (0.70) (NLA) | 1 | $ 3.84 | ||
| 14-5 | 09181-64006 Shim (0.75) (NLA)
SKU: 09181-64006 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.75) (NLA) | 1 | $ 4.43 | ||
| 14-6 | 09181-64007 Shim (0.80) (NLA)
SKU: 09181-64007 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.80) (NLA) | 1 | $ 4.43 | ||
| 14-7 | 09181-64008 Shim (0.85) (NLA)
SKU: 09181-64008 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.85) (NLA) | 1 | $ 4.43 | ||
| 14-8 | 09181-64009 Shim (0.90) (NLA)
SKU: 09181-64009 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.90) (NLA) | 1 | $ 4.43 | ||
| 14-9 | 09181-64010 Shim (0.95) (NLA)
SKU: 09181-64010 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.95) (NLA) | 1 | $ 4.43 | ||
| 14-10 | 09181-64011 Shim (1.00) (NLA)
SKU: 09181-64011 Weight: 0.100000 Brand: Price: $ 4.56 |
Shim (1.00) (NLA) | 1 | $ 4.56 | ||
| 15 | 57610-87L00 Propeller Shaft Assembly
SKU: 57610-87L00 Weight: 2.680000 Brand: Price: $ 377.42 |
Propeller Shaft Assembly | 1 | $ 377.42 | ||
| 16 | 57621-87L10 Clutch Dog Shifter
SKU: 57621-87L10 Weight: 0.380000 Brand: Price: $ 140.51 |
Clutch Dog Shifter | 1 | $ 140.51 | ||
| 17 | 57631-87L00 Connector Pin
SKU: 57631-87L00 Weight: 0.200000 Brand: Price: $ 49.44 |
Connector Pin | 1 | $ 49.44 | ||
| 18 | 09202-07003 Pin (7x44)
SKU: 09202-07003 Weight: 0.060000 Brand: Price: $ 6.08 |
Pin (7x44) | 1 | $ 6.08 | ||
| 19 | 09440-09043 Spring
SKU: 09440-09043 Weight: 0.200000 Brand: Price: $ 3.61 |
Spring | 1 | $ 3.61 | ||
| 20 | 09440-42002 Spring
SKU: 09440-42002 Weight: 0.060000 Brand: Price: $ 3.28 |
Spring | 1 | $ 3.28 | ||
| 21 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 22 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 23 | 09181-25030 Shim (3.00)
SKU: 09181-25030 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (3.00) | 1 | $ 3.57 | ||
| 24-1 | 56120-87L30-0EP Propeller Shaft Bearing Housing
SKU: 56120-87L30-0EP Weight: 2.000000 Brand: Price: $ 263.88 |
Propeller Shaft Bearing Housing | 1 | $ 263.88 | ||
| 24-2 | 56120-87L30-Y5S Propeller Shaft Bearing Housing
SKU: 56120-87L30-Y5S Weight: 2.000000 Brand: Price: $ 229.95 |
Propeller Shaft Bearing Housing | 1 | $ 229.95 | White | |
| 25 | 09263-25067 Bearing (25x32x26)
SKU: 09263-25067 Weight: 0.200000 Brand: Price: $ 33.34 |
Bearing (25x32x26) | 1 | $ 33.34 | ||
| 26 | 09280-92004 O-Ring
SKU: 09280-92004 Weight: 0.060000 Brand: Price: $ 10.11 |
O-Ring | 1 | $ 10.11 | ||
| 27 | 09282-25001 Oil Seal (25x38x8)
SKU: 09282-25001 Weight: 0.060000 Brand: Price: $ 5.64 |
Oil Seal (25x38x8) | 2 | $ 5.64 | ||
| 28 | 08113-60087 B1 40X80X18 BEA
SKU: 08113-60087 Weight: 0.500000 Brand: Price: $ 37.69 |
B1 40X80X18 BEA | 1 | $ 37.69 | ||
| 29 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 30 | 56130-87L01 Drive Shaft Oil Seal Housing
SKU: 56130-87L01 Weight: 0.500000 Brand: Price: $ 102.89 |
Drive Shaft Oil Seal Housing | 1 | $ 102.89 | ||
| 31 | 09280-46004 O-Ring
SKU: 09280-46004 Weight: 0.060000 Brand: Price: $ 3.14 |
O-Ring | 1 | $ 3.14 | ||
| 32 | 09282-22007 Oil Seal (22x36x6)
SKU: 09282-22007 Weight: 0.060000 Brand: Price: $ 13.97 |
Oil Seal (22x36x6) | 2 | $ 13.97 | ||
| 33 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
