Suzuki DF 50AV Parts Listings - 2015
S/N 05004F-510001 to 05004F-51XXXX

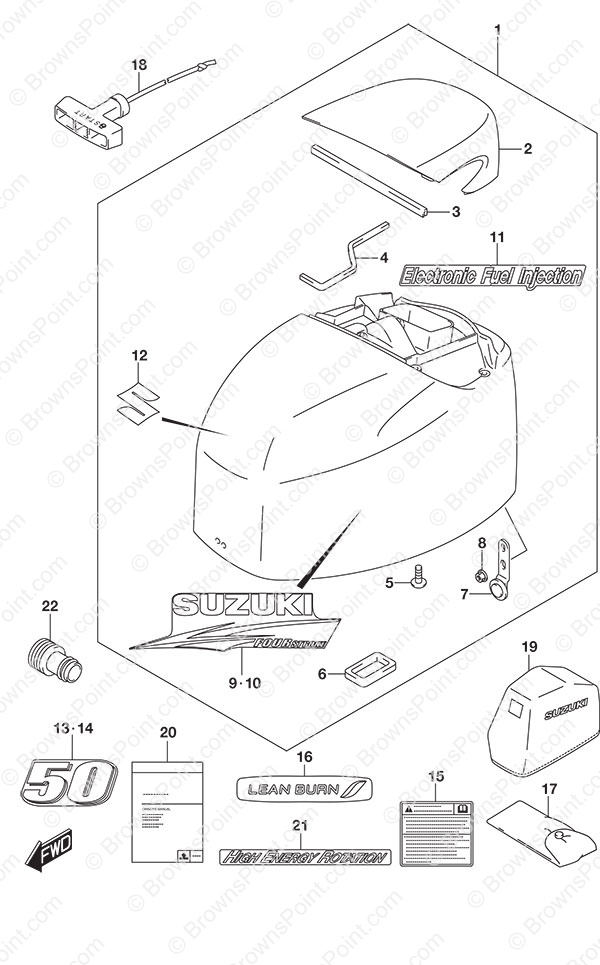

Fig. 420D - Engine Cover High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-88805-0EP Engine Cover Set
SKU: 61400-88805-0EP Weight: 22.000000 Brand: Price: $ 875.53 |
Engine Cover Set | 1 | $ 875.53 | ||
| 2 | 61431-88L10-0EP Tilt Up Handle
SKU: 61431-88L10-0EP Weight: 5.000000 Brand: Price: $ 108.34 |
Tilt Up Handle | 1 | $ 108.34 | ||
| 3 | 61438-88L01 Tilt Up Handle Seal No 1
SKU: 61438-88L01 Weight: 0.250000 Brand: Price: $ 6.86 |
Tilt Up Handle Seal No 1 | 1 | $ 6.86 | ||
| 4 | 61439-88L01 Tilt Up Handle Seal No 2
SKU: 61439-88L01 Weight: 0.100000 Brand: Price: $ 10.84 |
Tilt Up Handle Seal No 2 | 1 | $ 10.84 | ||
| 5 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 5 | $ 2.16 | ||
| 6 | 61476-88L00 Air Vent Seal
SKU: 61476-88L00 Weight: 0.250000 Brand: Price: $ 7.24 |
Air Vent Seal | 1 | $ 7.24 | ||
| 7 | 61610-95J00 Rear Fastener
SKU: 61610-95J00 Weight: 0.200000 Brand: Price: $ 29.40 |
Rear Fastener | 1 | $ 29.40 | ||
| 8 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 1 | $ 1.62 | ||
| 9 | 61443-88L02 Starboard Engine Cover Stripe
SKU: 61443-88L02 Weight: 0.250000 Brand: Price: $ 55.49 |
Starboard Engine Cover Stripe | 1 | $ 55.49 | ||
| 10 | 61453-88L02 Port Engine Cover Stripe
SKU: 61453-88L02 Weight: 0.250000 Brand: Price: $ 53.24 |
Port Engine Cover Stripe | 1 | $ 53.24 | ||
| 11 | 61446-87L13 DECAL,EFI
SKU: 61446-87L13 Weight: 0.000000 Brand: Price: $ 7.33 |
DECAL,EFI | 1 | $ 7.33 | ||
| 12 | 68111-18G20 Emblem Mark 'S'
SKU: 68111-18G20 Weight: 0.060000 Brand: Price: $ 34.12 |
Emblem Mark 'S' | 1 | $ 34.12 | ||
| 13 | 61435-88L12 Emblem Mark (50)
SKU: 61435-88L12 Weight: 0.200000 Brand: Price: $ 13.03 |
Emblem Mark (50) | 1 | $ 13.03 | Front | |
| 14 | 61435-88L12 Emblem Mark (50)
SKU: 61435-88L12 Weight: 0.200000 Brand: Price: $ 13.03 |
Emblem Mark (50) | 1 | $ 13.03 | Rear | |
| 15 | 61458-99E60 Engine Cover Label
SKU: 61458-99E60 Weight: 0.060000 Brand: Price: $ 9.12 |
Engine Cover Label | 1 | $ 9.12 | ||
| 16 | 61471-98J00 Lean Burn Decal
SKU: 61471-98J00 Weight: 0.250000 Brand: Price: $ 10.05 |
Lean Burn Decal | 1 | $ 10.05 | ||
| 17 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 | ||
| 18 | 18210-88L00 Starter Knob Assembly
SKU: 18210-88L00 Weight: 0.500000 Brand: Price: $ 13.57 |
Starter Knob Assembly | 1 | $ 13.57 | ||
| 19 | 68110-88L00 Weather Cover (NLA)
SKU: 68110-88L00 Weight: 0.060000 Brand: Price: $ 51.46 |
Weather Cover (NLA) | 1 | $ 51.46 | Optional | |
| 20 | 99011-88L40-03B Owners Manual DF40A/DF50A/DF60A S/N 510001~
SKU: 99011-88L40-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF40A/DF50A/DF60A S/N 510001~ | 1 | $ 20.00 | ||
| 21 | 61473-88L00 Decal (H.E.R.)
SKU: 61473-88L00 Weight: 0.250000 Brand: Price: $ 9.02 |
Decal (H.E.R.) | 1 | $ 9.02 | ||
| 22 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
