Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

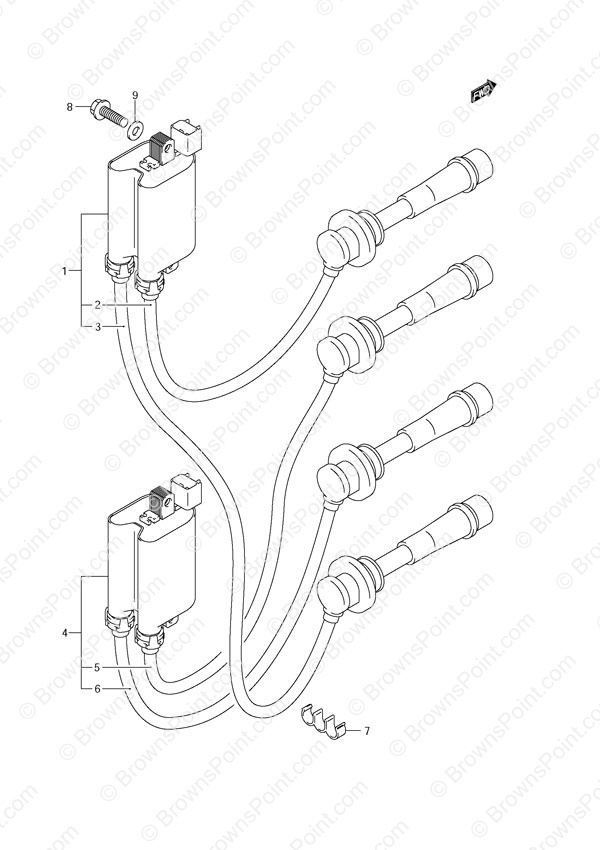

Fig. 30 - Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33410-90J00 Ignition Coil Assembly
SKU: 33410-90J00 Weight: 0.940000 Brand: Price: $ 209.99 |
Ignition Coil Assembly | 1 | $ 209.99 | ||
| 2 | 33710-90J00 High Tension Cord
SKU: 33710-90J00 Weight: 0.160000 Brand: Price: $ 44.30 |
High Tension Cord | 1 | $ 44.30 | No. 1 | |
| 3 | 33740-90J00 High Tension Cord
SKU: 33740-90J00 Weight: 0.150000 Brand: Price: $ 39.45 |
High Tension Cord | 1 | $ 39.45 | No. 4 | |
| 4 | 33420-90J00 Ignition Coil Assembly
SKU: 33420-90J00 Weight: 0.920000 Brand: Price: $ 209.99 |
Ignition Coil Assembly | 1 | $ 209.99 | ||
| 5 | 33720-90J00 High Tension Cord
SKU: 33720-90J00 Weight: 0.160000 Brand: Price: $ 41.25 |
High Tension Cord | 1 | $ 41.25 | No. 2 | |
| 6 | 33730-90J00 High Tension Cord
SKU: 33730-90J00 Weight: 0.200000 Brand: Price: $ 39.45 |
High Tension Cord | 1 | $ 39.45 | No. 3 | |
| 7 | 09408-00035 Clamp (NLA)
SKU: 09408-00035 Weight: 0.100000 Brand: Price: $ 2.41 |
Clamp (NLA) | 2 | $ 2.41 | ||
| 8-1 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 8-2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | 2008 Newer | |
| 9 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 4 | $ 1.85 | 2008 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
