Suzuki DF 50A Parts Listings - 2015
S/N 05003F-510001 to 05003F-51XXXX
S/N 05004F-510001 to 05004F-51XXXX

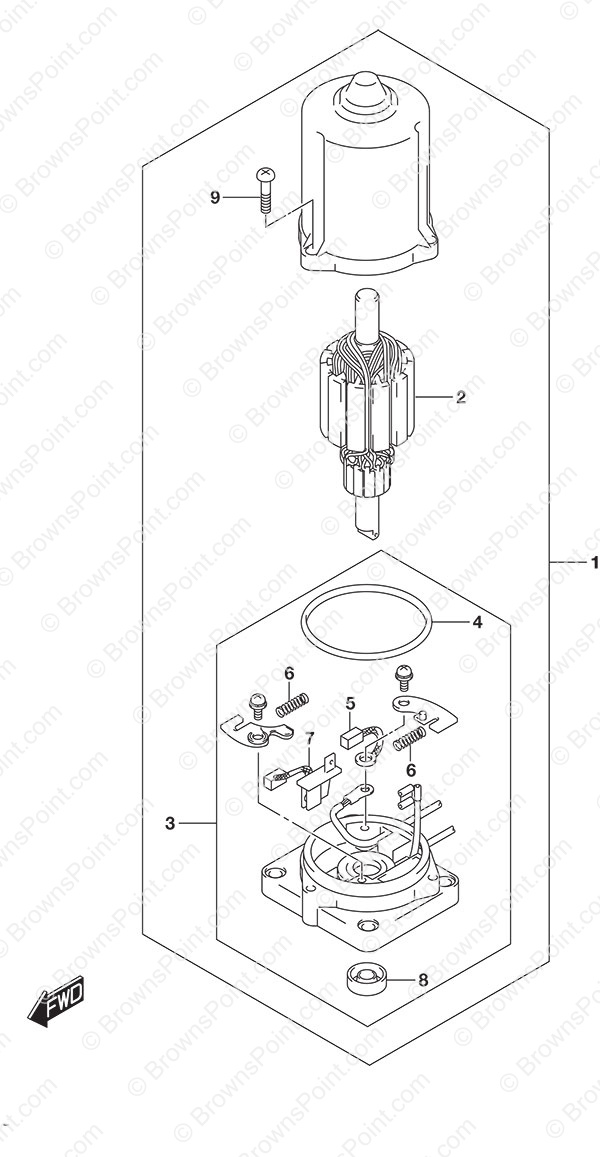

Fig. 340 - PTT Motor

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 38100-88L12 PTT Motor Assembly 1 $ 580.61
2 31311-87J10 Armature (NLA) 1 $ 334.64

Not Available

3 31173-88L12 Brush Holder Assembly 1 $ 409.90
4 31123-97E10 O-Ring 1 $ 14.91
5 31133-94910 Brush 1 $ 12.57
6 31135-94900 Spring 2 $ 5.02
7 31136-87J11 Breaker 1 $ 63.44
8 33799-97E00 Oil Seal 1 $ 23.27
9 31111-87J10 Screw (NLA) 3 $ 4.94

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
