Suzuki DF 50AV Parts Listings - 2015
S/N 05004F-510001 to 05004F-51XXXX

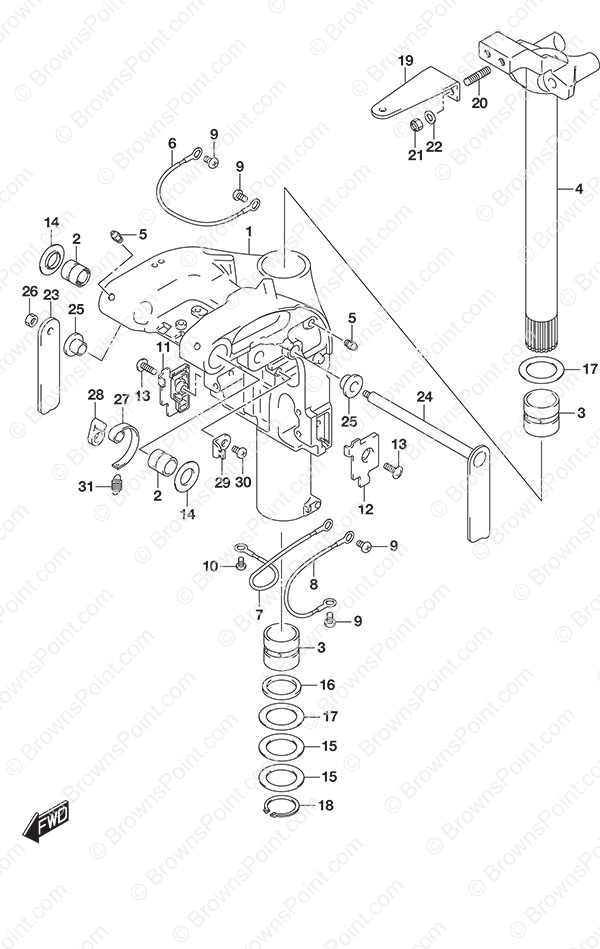

Fig. 336D - Swivel Bracket High Thrust

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 43111-88L50-0EP Swivel Bracket (S) 1 $ 828.53
2 43211-88L00 Swivel Bracket Bushing 2 $ 8.40
3 43711-97E11 Steering Bushing 2 $ 9.24
4 43750-88L32-0EP Steering Bracket (S) 1 $ 475.59
5 22511-99011 Grease Nipple 4 $ 3.36
6 36894-87D00 Wire Lead (L:195) 1 $ 12.66
Clamp to Swivel
7 36895-87D01 Wire Lead (L:210) 1 $ 14.20
Swivel to Mount Bracket
8 36895-87D01 Wire Lead (L:210) 1 $ 14.20
Swivel to Housing
9 09125-06063 Screw (6x10) 4 $ 1.96
10 09125-05050 Screw (5x8) 1 $ 1.88
11 43119-88L00 Swivel Bracket Lower Stbd Plate 1 $ 7.80

Not Available

12 43119-88L10 Swivel Bracket Lower Port Plate 1 $ 7.80

Not Available

13 09125-06067 Screw (6x16) 2 $ 2.06
14 43114-88L00 Swivel to Clamp Bracket Washer (NLA) 2 $ 6.76

Not Available

15 09160-39003 Washer (39.5x58x0.3) 2 $ 3.71
16 09282-39001 Oil Seal (38x51x5) 1 $ 6.18
17 09160-39002 Washer (39.5x58x1) 2 $ 3.71
18 09380-38003 Circlip 1 $ 5.97
19 43755-88L00 Steering Bracket Attachment 1 $ 45.13
20 09108-10161 Stud Bolt (10x20) 2 $ 9.26
21 09159-10050 Nut 2 $ 2.59
22 09160-10141 Washer (10.5x19x2) 2 $ 3.41
23 41221-88L00 Tilt Lock Stbd Lever 1 $ 38.29
24 41280-88L10 Tilt Lock Lever - Port 1 $ 142.74
25 41224-88L00 Tilt Lock Lever Bushing 2 $ 5.05
26 29141-93J00 Nut (6mm) 1 $ 1.80
27 41231-88L01 Tilt Lock Lever Link 1 $ 11.44

Not Available

28 41234-88L00 Tilt Lock Link Arm 1 $ 5.05

Not Available

29 45731-96312 Spring Bracket 1 $ 5.71
30 09125-06063 Screw (6x10) 1 $ 1.96
31 09443-10043 Tilt Lock Spring 1 $ 2.55

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
