Suzuki DF 50A Parts Listings - 2015
S/N 05003F-510001 to 05003F-51XXXX
S/N 05004F-510001 to 05004F-51XXXX

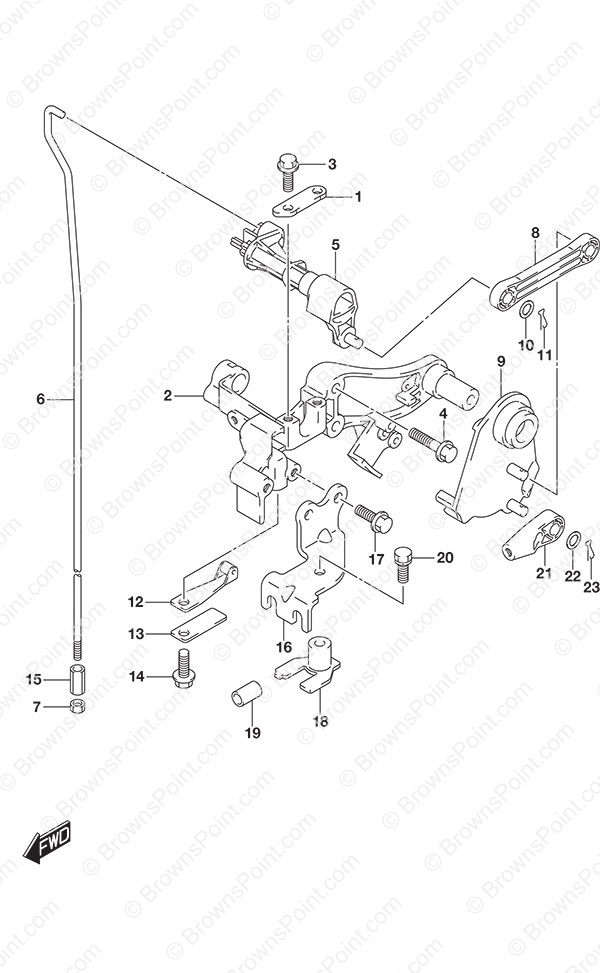

Fig. 204 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21126-88L00 Clutch Shaft Holder
SKU: 21126-88L00 Weight: 0.250000 Brand: Price: $ 4.95 |
Clutch Shaft Holder | 1 | $ 4.95 | ||
| 2 | 21151-88L00 Clutch Lever Holder
SKU: 21151-88L00 Weight: 0.250000 Brand: Price: $ 63.78 |
Clutch Lever Holder | 1 | $ 63.78 | ||
| 3 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 4 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 5 | 21210-88L01 Clutch Shaft
SKU: 21210-88L01 Weight: 0.250000 Brand: Price: $ 17.47 |
Clutch Shaft | 1 | $ 17.47 | ||
| 6-1 | 23111-88L11 Clutch Rod (L/X)
SKU: 23111-88L11 Weight: 0.500000 Brand: Price: $ 17.51 |
Clutch Rod (L/X) | 1 | $ 17.51 | Standard | |
| 6-2 | 23111-88L00 Clutch Rod (S)
SKU: 23111-88L00 Weight: 0.500000 Brand: Price: $ 15.62 |
Clutch Rod (S) | 1 | $ 15.62 | High Thrust | |
| 7 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 8 | 23115-88L00 Clutch Lever Link
SKU: 23115-88L00 Weight: 0.100000 Brand: Price: $ 6.91 |
Clutch Lever Link | 1 | $ 6.91 | ||
| 9 | 23210-88L00 Clutch Control Lever
SKU: 23210-88L00 Weight: 0.250000 Brand: Price: $ 23.61 |
Clutch Control Lever | 1 | $ 23.61 | ||
| 10 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 11 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 12 | 23213-89J01 Notch Plate Spring No. 1
SKU: 23213-89J01 Weight: 0.060000 Brand: Price: $ 7.47 |
Notch Plate Spring No. 1 | 1 | $ 7.47 | ||
| 13 | 23214-89J00 Notch Plate Spring No. 2 (NLA)
SKU: 23214-89J00 Weight: 0.060000 Brand: Price: $ 1.85 |
Notch Plate Spring No. 2 (NLA) | 1 | $ 1.85 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 15 | 23311-95J00 Clutch Rod Connector
SKU: 23311-95J00 Weight: 0.060000 Brand: Price: $ 7.09 |
Clutch Rod Connector | 1 | $ 7.09 | ||
| 16 | 67341-88L01 Remocon Cable Holder
SKU: 67341-88L01 Weight: 0.250000 Brand: Price: $ 15.72 |
Remocon Cable Holder | 1 | $ 15.72 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18 | 67343-88L01 Remocon Cable Stopper
SKU: 67343-88L01 Weight: 0.250000 Brand: Price: $ 34.76 |
Remocon Cable Stopper | 1 | $ 34.76 | ||
| 19 | 09352-70104-600 Hose (7x10.2x600)
SKU: 09352-70104-600 Weight: 0.060000 Brand: Price: $ 5.72 |
Hose (7x10.2x600) | 2 | $ 5.72 | L:600->14 | |
| 20 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 1 | $ 2.62 | ||
| 21 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 22 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 23 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
