Suzuki DF 50A Parts Listings - 2015
S/N 05003F-510001 to 05003F-51XXXX
S/N 05004F-510001 to 05004F-51XXXX

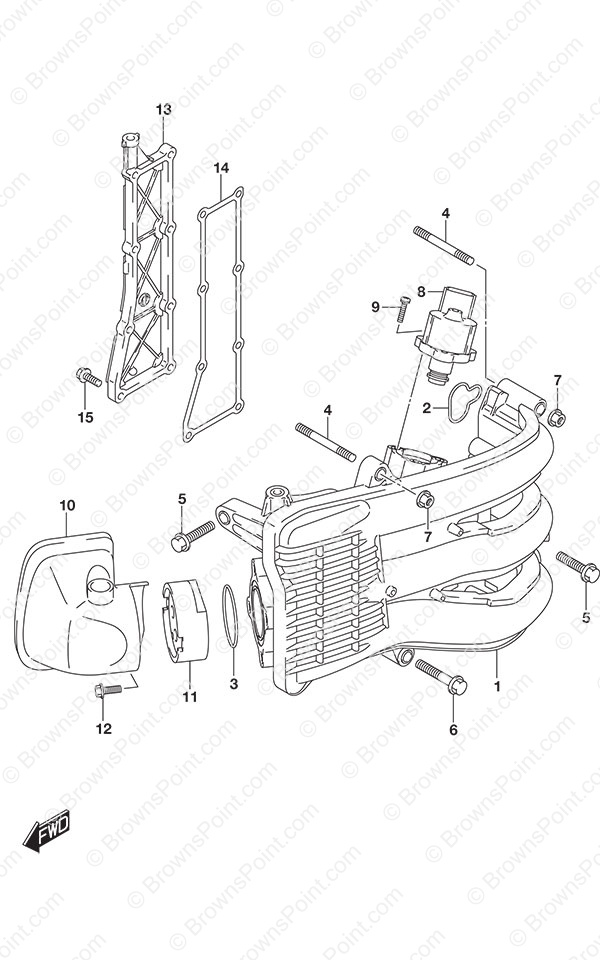

Fig. 124 - Intake Manifold/ Silencer/Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-88L00 Intake Manifold
SKU: 13110-88L00 Weight: 5.000000 Brand: Price: $ 513.72 |
Intake Manifold | 1 | $ 513.72 | ||
| 2 | 13119-88L00 Intake Manifold Gasket
SKU: 13119-88L00 Weight: 0.250000 Brand: Price: $ 13.52 |
Intake Manifold Gasket | 3 | $ 13.52 | ||
| 3 | 13125-88L00 Throttle Body Gasket
SKU: 13125-88L00 Weight: 0.250000 Brand: Price: $ 16.35 |
Throttle Body Gasket | 1 | $ 16.35 | ||
| 4 | 01421-08607 STUD BOLT
SKU: 01421-08607 Weight: 0.100000 Brand: Price: $ 6.48 |
STUD BOLT | 2 | $ 6.48 | ||
| 5 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.78 |
BOLT | 6 | $ 3.78 | ||
| 6 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.65 |
BOLT 8 X 40 | 1 | $ 3.65 | ||
| 7 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 2 | $ 2.38 | ||
| 8 | 18137-88L01 Replaced by 18137-88L02
SKU: 18137-88L01 Weight: 0.500000 Brand: Price: $ 298.54 |
Replaced by 18137-88L02 | 1 | $ 298.54 | ||
| 9 | 02112-34167 SCREW
SKU: 02112-34167 Weight: 0.060000 Brand: Price: $ 2.25 |
SCREW | 3 | $ 2.25 | ||
| 10 | 13810-88L00 Silencer
SKU: 13810-88L00 Weight: 0.500000 Brand: Price: $ 67.27 |
Silencer | 1 | $ 67.27 | ||
| 12 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 13 | 14141-88L10 COVER,EXHAUST
SKU: 14141-88L10 Weight: 0.000000 Brand: Price: $ 90.30 |
COVER,EXHAUST | 1 | $ 90.30 | ||
| 14 | 14151-88L00 Exhaust Cover Gasket
SKU: 14151-88L00 Weight: 0.060000 Brand: Price: $ 8.65 |
Exhaust Cover Gasket | 1 | $ 8.65 | ||
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 8 | $ 2.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
