Suzuki DF 50A Parts Listings - 2015
S/N 05003F-510001 to 05003F-51XXXX
S/N 05004F-510001 to 05004F-51XXXX

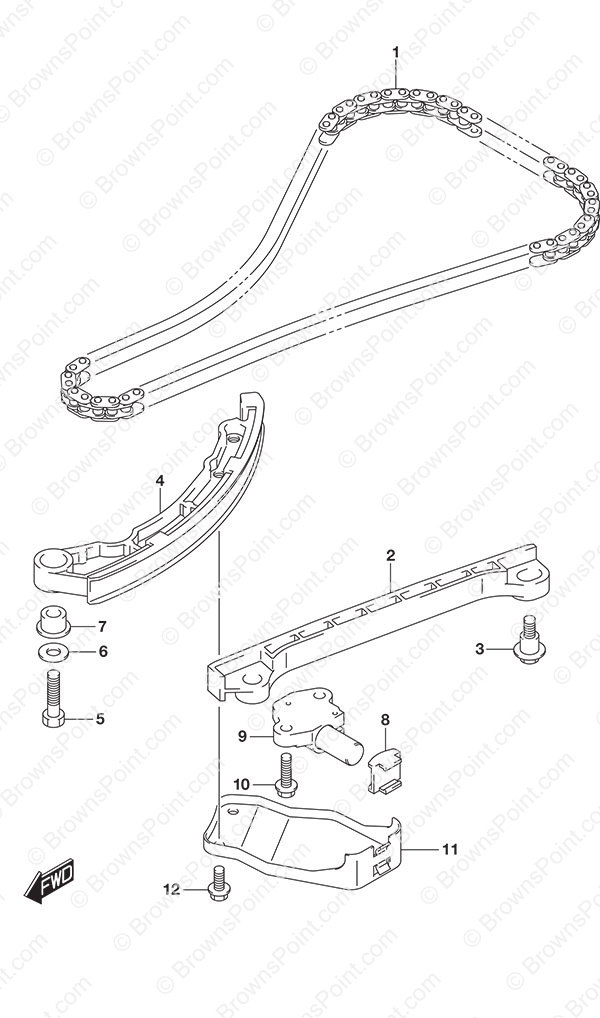

Fig. 119 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12761-88L00 Timing Chain
SKU: 12761-88L00 Weight: 0.740000 Brand: Price: $ 101.12 |
Timing Chain | 1 | $ 101.12 | ||
| 2 | 12771-87J00 Timing Chain Guide
SKU: 12771-87J00 Weight: 0.100000 Brand: Price: $ 21.79 |
Timing Chain Guide | 1 | $ 21.79 | ||
| 3 | 12776-85FA0 Timing Chain Guide Bolt
SKU: 12776-85FA0 Weight: 0.100000 Brand: Price: $ 4.64 |
Timing Chain Guide Bolt | 2 | $ 4.64 | ||
| 4 | 12811-88L00 Timing Chain Tensioner
SKU: 12811-88L00 Weight: 0.500000 Brand: Price: $ 73.42 |
Timing Chain Tensioner | 1 | $ 73.42 | ||
| 5 | 09100-08260 Bolt (8x30)
SKU: 09100-08260 Weight: 0.100000 Brand: Price: $ 2.03 |
Bolt (8x30) | 1 | $ 2.03 | ||
| 6 | 09160-08123 Washer (8.5x20x1.2)
SKU: 09160-08123 Weight: 0.250000 Brand: Price: $ 2.01 |
Washer (8.5x20x1.2) | 1 | $ 2.01 | ||
| 7 | 12812-73G10 Timing Chain Tensioner Spacer
SKU: 12812-73G10 Weight: 0.100000 Brand: Price: $ 6.41 |
Timing Chain Tensioner Spacer | 1 | $ 6.41 | ||
| 8 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 9 | 12831-90J02 Tensioner Adjuster Assembly
SKU: 12831-90J02 Weight: 0.320000 Brand: Price: $ 108.92 |
Tensioner Adjuster Assembly | 1 | $ 108.92 | ||
| 10 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 11 | 12821-88L00 Timing Chain Tensioner Link (NLA)
SKU: 12821-88L00 Weight: 0.250000 Brand: Price: $ 8.45 |
Timing Chain Tensioner Link (NLA) | 1 | $ 8.45 | ||
| 12 | 01550-0612A BOLT
SKU: 01550-0612A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
