Suzuki DF 40A Parts Listings - 2015
S/N 04003F-510001 to 04003F-51XXXX

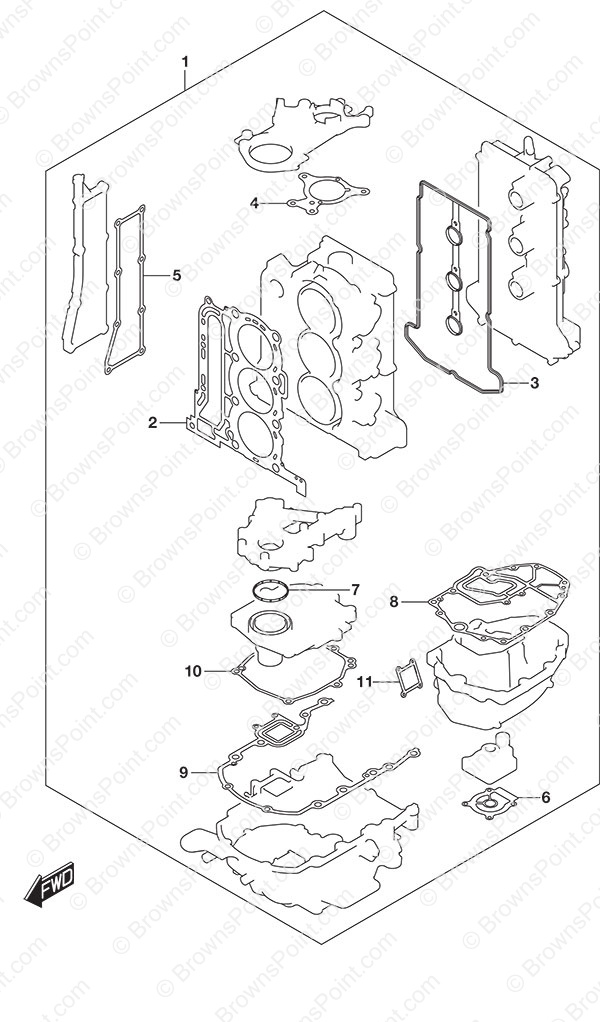

Fig. 585 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-88872 Engine Gasket Set
SKU: 11400-88872 Weight: 5.000000 Brand: Price: $ 171.18 |
Engine Gasket Set | 1 | $ 171.18 | ||
| 2 | 11141-88L00 Cylinder Head Gasket
SKU: 11141-88L00 Weight: 0.320000 Brand: Price: $ 70.74 |
Cylinder Head Gasket | 1 | $ 70.74 | ||
| 3 | 11189-88L00 Cylinder Head Cover Gasket
SKU: 11189-88L00 Weight: 0.080000 Brand: Price: $ 24.69 |
Cylinder Head Cover Gasket | 1 | $ 24.69 | ||
| 4 | 11413-88L00 Upper Oil Seal Gasket
SKU: 11413-88L00 Weight: 0.250000 Brand: Price: $ 8.40 |
Upper Oil Seal Gasket | 1 | $ 8.40 | ||
| 5 | 14151-88L00 Exhaust Cover Gasket
SKU: 14151-88L00 Weight: 0.060000 Brand: Price: $ 8.36 |
Exhaust Cover Gasket | 1 | $ 8.36 | ||
| 6 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 7 | 11433-88L00 Under Oil Seal Gasket
SKU: 11433-88L00 Weight: 0.250000 Brand: Price: $ 11.67 |
Under Oil Seal Gasket | 1 | $ 11.67 | ||
| 8 | 11489-88L01 Oil Pan Gasket
SKU: 11489-88L01 Weight: 0.250000 Brand: Price: $ 33.31 |
Oil Pan Gasket | 1 | $ 33.31 | ||
| 9 | 51211-88L00 Engine Holder Gasket
SKU: 51211-88L00 Weight: 0.200000 Brand: Price: $ 40.48 |
Engine Holder Gasket | 1 | $ 40.48 | ||
| 10 | 51123-88L00 Mount Case Cover Gasket
SKU: 51123-88L00 Weight: 0.250000 Brand: Price: $ 17.47 |
Mount Case Cover Gasket | 1 | $ 17.47 | ||
| 11 | 11552-88L00 Water Jacket Cover Gasket
SKU: 11552-88L00 Weight: 0.250000 Brand: Price: $ 5.29 |
Water Jacket Cover Gasket | 1 | $ 5.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
