Suzuki DF 40A Parts Listings - 2015
S/N 04003F-510001 to 04003F-51XXXX

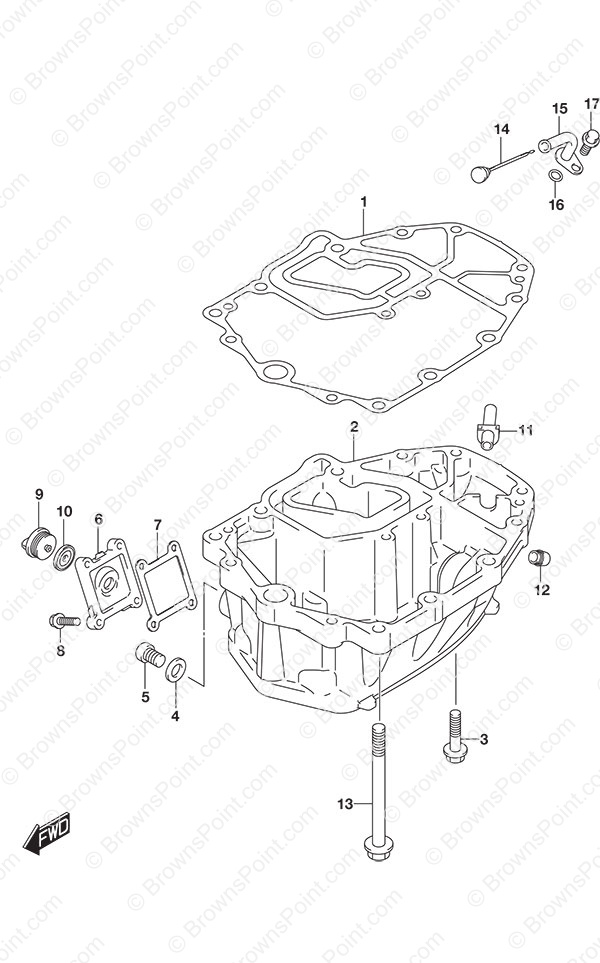

Fig. 180 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-88L01 Oil Pan Gasket
SKU: 11489-88L01 Weight: 0.250000 Brand: Price: $ 33.31 |
Oil Pan Gasket | 1 | $ 33.31 | ||
| 2-1 | 11501-88L00-0EP Oil Pan (NLA)
SKU: 11501-88L00-0EP Weight: 20.000000 Brand: Price: $ 676.77 |
Oil Pan (NLA) | 1 | $ 676.77 | ||
| 2-2 | 11501-88L01-Y5S Oil Pan (NLA)
SKU: 11501-88L01-Y5S Weight: 20.000000 Brand: Price: $ 676.80 |
Oil Pan (NLA) | 1 | $ 676.80 | White | |
| 3 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 6 | $ 4.11 | ||
| 4 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 5 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | Oil Drain | |
| 6-1 | 11551-88L00-0EP Water Jacket Oil Pan Cover
SKU: 11551-88L00-0EP Weight: 0.500000 Brand: Price: $ 50.60 |
Water Jacket Oil Pan Cover | 1 | $ 50.60 | ||
| 6-2 | 11551-88L00-Y5S Water Jacket Oil Pan Cover
SKU: 11551-88L00-Y5S Weight: 0.500000 Brand: Price: $ 55.45 |
Water Jacket Oil Pan Cover | 1 | $ 55.45 | White | |
| 7 | 11552-88L00 Water Jacket Cover Gasket
SKU: 11552-88L00 Weight: 0.250000 Brand: Price: $ 5.29 |
Water Jacket Cover Gasket | 1 | $ 5.29 | ||
| 8 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 4 | $ 2.72 | ||
| 9 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 10 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 11 | 11543-88L00 Exhaust Silencer (NLA)
SKU: 11543-88L00 Weight: 0.250000 Brand: Price: $ 6.31 |
Exhaust Silencer (NLA) | 1 | $ 6.31 | ||
| 12 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 13 | 09116-10124 Bolt (10x150)
SKU: 09116-10124 Weight: 0.200000 Brand: Price: $ 19.88 |
Bolt (10x150) | 6 | $ 19.88 | ||
| 14 | 16910-88L00 Oil Level Gauge
SKU: 16910-88L00 Weight: 0.250000 Brand: Price: $ 16.65 |
Oil Level Gauge | 1 | $ 16.65 | ||
| 15 | 16930-88L00 Oil Level Gauge Guide
SKU: 16930-88L00 Weight: 0.250000 Brand: Price: $ 14.98 |
Oil Level Gauge Guide | 1 | $ 14.98 | ||
| 16 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
