Suzuki DF 9.9A Parts Listings - 2015
S/N 00994F-510001 to 00994F-51XXXX

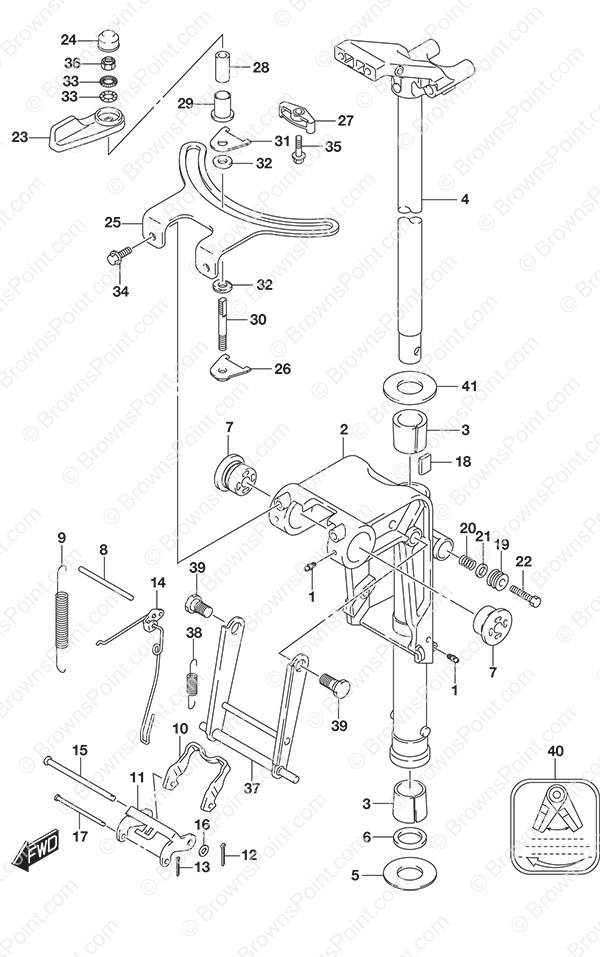

Fig. 336C - Swivel Bracket Non-Remote Control

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 22511-99011 Grease Nipple 3 $ 3.36
2-1 43111-99J40-0EP Swivel Bracket (S) 1 $ 0.00
w/Transom (S)
2-2 43111-99J50-0EP Swivel Bracket (L) 1 $ 0.00
Type: L
3 43711-99J00 Steering Bushing 2 $ 14.52
4-1 43750-99J60-0EP Steering Bracket (S) 1 $ 118.60
w/Transom (S)
4-2 43750-99J70-0EP Steering Bracket (L) 1 $ 132.94
Type: L
5 09160-27012 Washer (27.5x47x1) 1 $ 3.81
6 09282-27002 Oil Seal (26x39x5) 1 $ 14.52
7 43211-99J00 Swivel Bracket Bushing 2 $ 14.39
8 41225-89L00 Release Arm Pin 1 $ 6.76
9 45212-95L00 Reverse Lock Arm Spring 2 $ 0.00
10 45231-89L00 Reverse Lock Arm 1 $ 25.64
11 45241-89L00 Reverse Lock Arm Link 1 $ 49.81
12 09204-01002 Cotter Pin 1 $ 1.70
13 45247-99J00 Reverse Lock Arm Cotter Pin 1 $ 2.53
14 45250-89L03 Release Link 1 $ 6.12
15 09200-06061 Pin 1 $ 8.40
16 09160-06082 Washer (6.5x13x1.0) 1 $ 1.44
17 09200-05014 Pin 1 $ 3.00
18 43411-939L0 Steering Adjuster Plate 1 $ 3.31
19 43412-93901 COVER,STEERING 1 $ 2.60
20 29440-93J00 Steering Adjuster Spring 1 $ 2.24
21 09160-08082 Washer (8.5x16x1.2) 1 $ 1.63
22 09100-08232 Bolt (8x30) 1 $ 3.57
23 43410-99J00 Steering Adjust Lever (NLA) 1 $ 46.00

Not Available

24 43412-99J00 Steering Adjust Cover 1 $ 10.63

Not Available

25 43415-99J00 Steering Adjust Plate 1 $ 150.49
26 43420-99J10 Adjust Friction Plate (NLA) 1 $ 22.76

Not Available

27 43424-99J00 Adjust Nut Holder (NLA) 1 $ 19.69

Not Available

28 43427-99J00 Adjust Nut Spacer (NLA) 1 $ 19.69

Not Available

29 43428-99J00 Adjust Nut Bushing (NLA) 1 $ 10.43

Not Available

30 43512-99J00 Adjust Thread Shaft (NLA) 1 $ 24.65

Not Available

31 43514-94J00 Steering Adjuster Plate 1 $ 6.18
32 43514-99J00 Friction Plate Washer 2 $ 3.71

Not Available

33 43516-89J00 Steering Adjuster Washer 2 $ 15.32
34 09116-06225 Bolt (6x16) 2 $ 2.60
35 09116-06229 Bolt (6x25) 1 $ 2.38
36 09159-08059 Nut 1 $ 5.21
37 45710-99JL1 Shallow Water Drive Assembly 1 $ 38.44
38 45722-94J11 Shallow Water Drive Spring 1 $ 20.04
39 09111-10067 Bolt (10x20.4) 2 $ 6.13
40 45269-99J00 Steering Adjust Mark (NLA) 1 $ 4.16

Not Available

41 09160-27012 Washer (27.5x47x1) 1 $ 3.81

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
