Suzuki DF 9.9A Parts Listings - 2015
S/N 00994F-510001 to 00994F-51XXXX

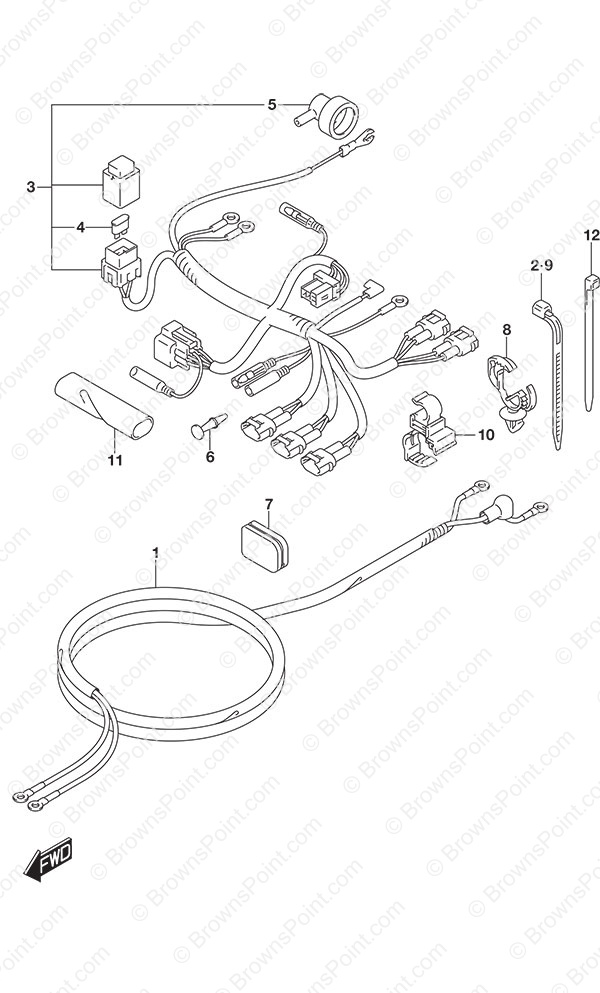

Fig. 322C - Harness Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-99J00 Starter Motor Cable
SKU: 33810-99J00 Weight: 5.000000 Brand: Price: $ 67.10 |
Starter Motor Cable | 1 | $ 67.10 | w/Electric Starter | |
| 2 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | w/Electric Starter | |
| 3-1 | 36610-99J00 Wiring Harness Assembly
SKU: 36610-99J00 Weight: 5.000000 Brand: Price: $ 88.03 |
Wiring Harness Assembly | 1 | $ 88.03 | w/Electric Starter | |
| 3-2 | 36610-99J10 Wiring Harness Assembly
SKU: 36610-99J10 Weight: 5.000000 Brand: Price: $ 47.37 |
Wiring Harness Assembly | 1 | $ 47.37 | w/Manual Starter | |
| 4 | 09481-20501 20 Amp Fuse
SKU: 09481-20501 Weight: 0.100000 Brand: Price: $ 1.96 |
20 Amp Fuse | 1 | $ 1.96 | ||
| 5 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 6-1 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | w/Electric Starter | |
| 6-2 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 3 | $ 1.31 | w/Manual Starter | |
| 7 | 36656-99J00 Cable Grommet
SKU: 36656-99J00 Weight: 0.250000 Brand: Price: $ 9.95 |
Cable Grommet | 1 | $ 9.95 | Port | |
| 8 | 09403-13311 Clamp
SKU: 09403-13311 Weight: 0.060000 Brand: Price: $ 2.24 |
Clamp | 1 | $ 2.24 | ||
| 9 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 10 | 09408-00265 Clamp
SKU: 09408-00265 Weight: 0.250000 Brand: Price: $ 2.88 |
Clamp | 1 | $ 2.88 | ||
| 11 | 33833-99J10 Harness Lead Tube
SKU: 33833-99J10 Weight: 0.250000 Brand: Price: $ 2.53 |
Harness Lead Tube | 1 | $ 2.53 | w/Electric Starter | |
| 12 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
