Suzuki DF 9.9A Parts Listings - 2015
S/N 00994F-510001 to 00994F-51XXXX

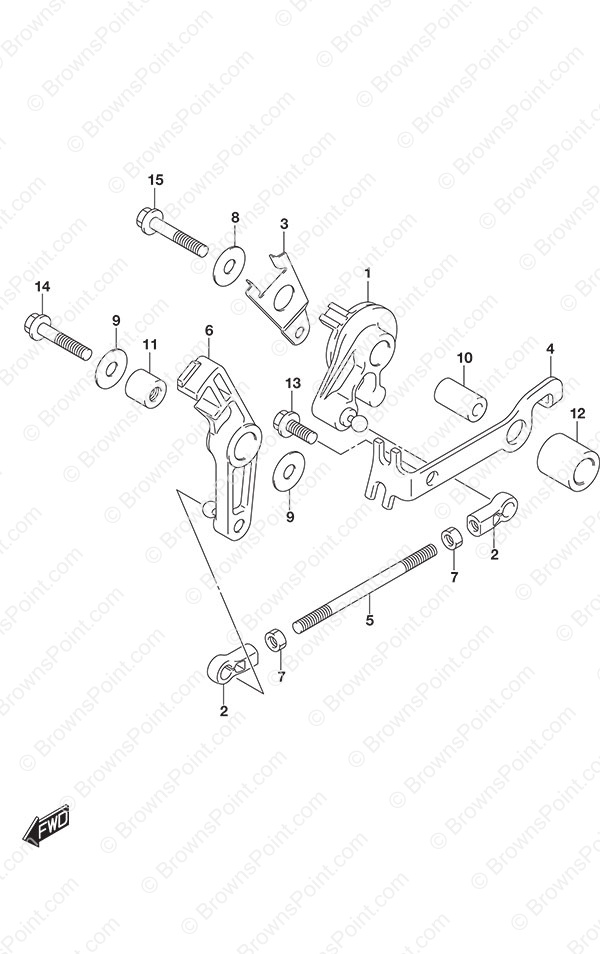

Fig. 166C - Throttle Control Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19120-99J00 Throttle Control Drum
SKU: 19120-99J00 Weight: 0.250000 Brand: Price: $ 27.65 |
Throttle Control Drum | 1 | $ 27.65 | ||
| 2 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 3 | 19148-99J00 Interlink Throttle Lever
SKU: 19148-99J00 Weight: 0.250000 Brand: Price: $ 9.41 |
Interlink Throttle Lever | 1 | $ 9.41 | ||
| 4 | 19184-99J00 Throttle Cable Bracket
SKU: 19184-99J00 Weight: 0.250000 Brand: Price: $ 38.14 |
Throttle Cable Bracket | 1 | $ 38.14 | ||
| 5 | 19656-99J00 Throttle Rod
SKU: 19656-99J00 Weight: 0.250000 Brand: Price: $ 10.63 |
Throttle Rod | 1 | $ 10.63 | ||
| 6 | 19810-99J00 Throttle Stopper
SKU: 19810-99J00 Weight: 0.250000 Brand: Price: $ 29.92 |
Throttle Stopper | 1 | $ 29.92 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 8 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 9 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 2 | $ 1.99 | ||
| 10 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 11 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 12 | 09180-12158 Spacer(12.2x20x19.9)
SKU: 09180-12158 Weight: 0.250000 Brand: Price: $ 4.03 |
Spacer(12.2x20x19.9) | 1 | $ 4.03 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 14 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 15 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
