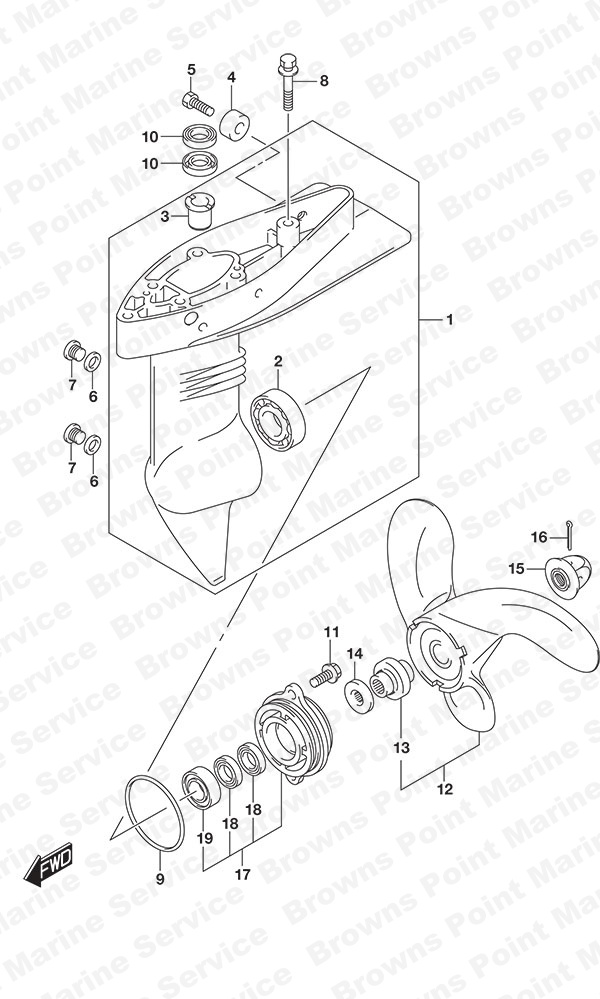

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 55110-97J51-0EP Gear Case Housing SKU: 55110-97J51-0EP Weight: 4.000000 Brand: Price: $ 170.83 |
Gear Case Housing | 1 | $ 170.83 | ||
2 | 09262-17019 Bearing (17x35x8) SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
3 | 59311-97J20 Pinion Bushing SKU: 59311-97J20 Weight: 0.250000 Brand: Price: $ 28.55 |
Pinion Bushing | 2 | $ 28.55 | ||
4 | 55321-87J01 Aluminum Anode SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
5 | 09103-06281 Bolt (6x14) SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
6 | 59178-97J00 Drain Plug Gasket SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 2 | $ 2.03 | ||
7 | 09248-08001 Drain Plug SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.46 |
Drain Plug | 2 | $ 2.46 | ||
8 | 09116-06234 Bolt (6x35) SKU: 09116-06234 Weight: 0.250000 Brand: Price: $ 2.96 |
Bolt (6x35) | 2 | $ 2.96 | ||
9 | 59291-97J00 O-Ring SKU: 59291-97J00 Weight: 0.060000 Brand: Price: $ 8.34 |
O-Ring | 1 | $ 8.34 | ||
10 | 09282-10008 Oil Seal (10x21x4.5) SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
11 | 09116-06225 Bolt (6x16) SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
12 | 58110-97JA0-019 Propeller (3x7-1/2x6) SKU: 58110-97JA0-019 Weight: 1.000000 Brand: Price: $ 124.39 |
Propeller (3x7-1/2x6) | 1 | $ 124.39 | ||
13 | 58120-97JA0 Proppeller Bushing SKU: 58120-97JA0 Weight: 0.100000 Brand: Price: $ 86.66 |
Proppeller Bushing | 1 | $ 86.66 | ||
14 | 57635-91JL0 Propeller Stopper SKU: 57635-91JL0 Weight: 0.140000 Brand: Price: $ 44.01 |
Propeller Stopper | 1 | $ 44.01 | ||
15 | 58130-91JL0 Propeller Nut SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
16 | 09204-03003 Prop Nut Cotter Pin SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
17 | 56120-97J50-0EP Propeller Shaft Housing SKU: 56120-97J50-0EP Weight: 1.000000 Brand: Price: $ 163.72 |
Propeller Shaft Housing | 1 | $ 163.72 | ||
18 | 09282-12L05 Oil Seal SKU: 09282-12L05 Weight: 0.250000 Brand: Price: $ 7.27 |
Oil Seal | 2 | $ 7.27 | ||
19 | 09262-12001 Bearing (12x28x8) SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
