Suzuki DF 2.5 Parts Listings - 2015
S/N 00252F-510001 to 00252F-51XXXX

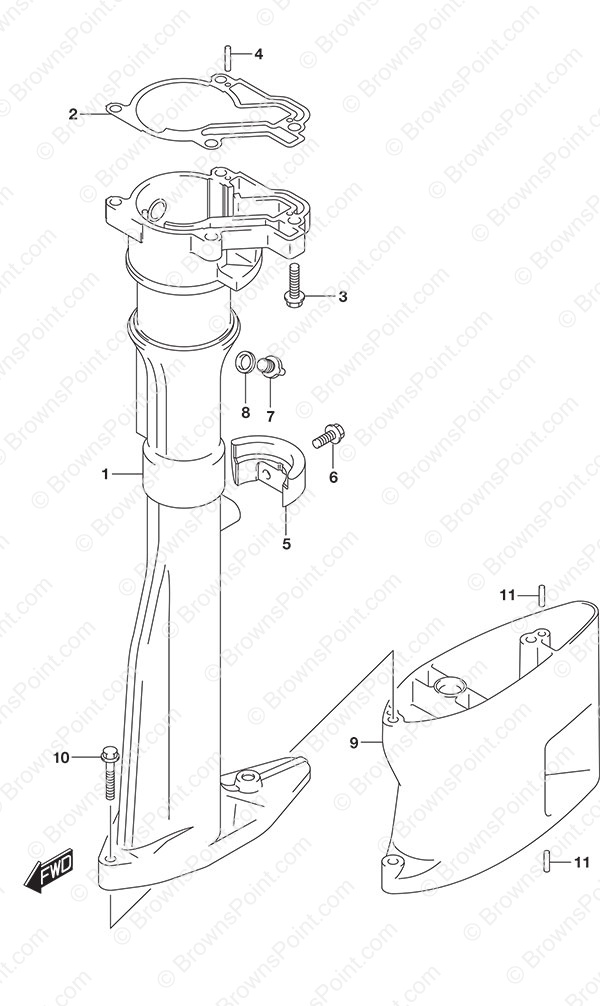

Fig. 405B - Drive Shaft Housing w/Transom (L)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-97J31-0EP Drive Shaft Housing
SKU: 52111-97J31-0EP Weight: 10.000000 Brand: Price: $ 237.57 |
Drive Shaft Housing | 1 | $ 237.57 | ||
| 2 | 52113-97J00 Drive Shaft Housing Gasket
SKU: 52113-97J00 Weight: 0.060000 Brand: Price: $ 10.24 |
Drive Shaft Housing Gasket | 1 | $ 10.24 | ||
| 3 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 4 | $ 2.91 | ||
| 4 | 09205-03019 Spring Pin (3x10)
SKU: 09205-03019 Weight: 0.060000 Brand: Price: $ 1.73 |
Spring Pin (3x10) | 2 | $ 1.73 | ||
| 5 | 52112-97J10-0EP Reverse Thrust Stopper
SKU: 52112-97J10-0EP Weight: 0.500000 Brand: Price: $ 51.97 |
Reverse Thrust Stopper | 1 | $ 51.97 | ||
| 6 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 2 | $ 2.91 | ||
| 7 | 61155-97J01 Water Indicator Union
SKU: 61155-97J01 Weight: 0.060000 Brand: Price: $ 1.50 |
Water Indicator Union | 1 | $ 1.50 | ||
| 8 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 1 | $ 2.03 | ||
| 9 | 52131-97J00-0EP Extension Case (L)
SKU: 52131-97J00-0EP Weight: 2.000000 Brand: Price: $ 195.40 |
Extension Case (L) | 1 | $ 195.40 | ||
| 10 | 09116-06234 Bolt (6x35)
SKU: 09116-06234 Weight: 0.250000 Brand: Price: $ 2.96 |
Bolt (6x35) | 2 | $ 2.96 | ||
| 11 | 09202-04008 Dowel Pin (4x9)
SKU: 09202-04008 Weight: 0.060000 Brand: Price: $ 1.49 |
Dowel Pin (4x9) | 4 | $ 1.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
