Suzuki DF 2.5 Parts Listings - 2015
S/N 00252F-510001 to 00252F-51XXXX

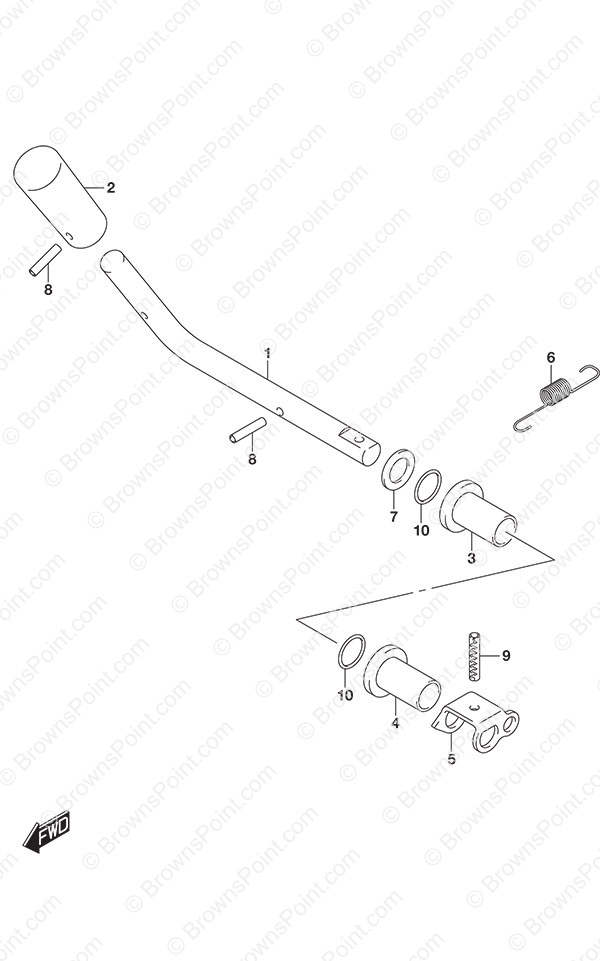

Fig. 208 - Clutch Lever
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21111-97J01 Clutch Lever
SKU: 21111-97J01 Weight: 0.250000 Brand: Price: $ 9.87 |
Clutch Lever | 1 | $ 9.87 | ||
| 2 | 21112-97J00 Clutch Lever Knob
SKU: 21112-97J00 Weight: 0.060000 Brand: Price: $ 6.56 |
Clutch Lever Knob | 1 | $ 6.56 | ||
| 3 | 21221-97J00 Clutch Shaft Bushing
SKU: 21221-97J00 Weight: 0.060000 Brand: Price: $ 3.64 |
Clutch Shaft Bushing | 1 | $ 3.64 | ||
| 4 | 21222-97J00 Clutch Shaft Bushing
SKU: 21222-97J00 Weight: 0.060000 Brand: Price: $ 3.31 |
Clutch Shaft Bushing | 1 | $ 3.31 | ||
| 5 | 23211-97J10 Clutch Rod Arm
SKU: 23211-97J10 Weight: 0.100000 Brand: Price: $ 8.65 |
Clutch Rod Arm | 1 | $ 8.65 | ||
| 6 | 23213-97J00 Clutch Notch Spring
SKU: 23213-97J00 Weight: 0.060000 Brand: Price: $ 2.24 |
Clutch Notch Spring | 1 | $ 2.24 | ||
| 7 | 09160-08145 Washer (8x14x1.5)
SKU: 09160-08145 Weight: 0.060000 Brand: Price: $ 2.37 |
Washer (8x14x1.5) | 1 | $ 2.37 | ||
| 8 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 2 | $ 1.99 | ||
| 9 | 09205-04002 Spring Pin (4x20)
SKU: 09205-04002 Weight: 0.060000 Brand: Price: $ 1.26 |
Spring Pin (4x20) | 1 | $ 1.26 | ||
| 10 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 2 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
