Suzuki DF 300AP Parts Listings - 2014
S/N 30002P-410001 to 30002P-41XXXX

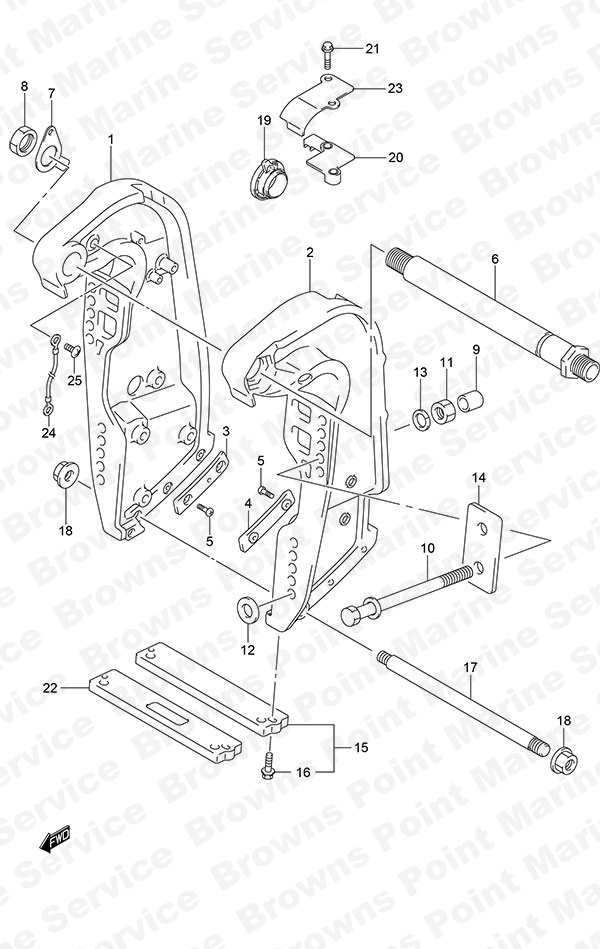

Fig. 26 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-93J16-0EP BRACKET,CLAMP S
SKU: 41111-93J16-0EP Weight: 0.000000 Brand: Price: $ 500.15 |
BRACKET,CLAMP S | 1 | $ 500.15 | ||
| 1-2 | 41111-93J14-Y5S Replaced by 41111-93J15-Y5S
SKU: 41111-93J14-Y5S Weight: 20.000000 Brand: Price: $ 436.63 |
Replaced by 41111-93J15-Y5S | 1 | $ 436.63 | White | |
| 2-1 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | ||
| 2-2 | 41121-93J06-Y5S Clamp Bracket - Port
SKU: 41121-93J06-Y5S Weight: 20.000000 Brand: Price: $ 436.63 |
Clamp Bracket - Port | 1 | $ 436.63 | White | |
| 3 | 41117-93J02 Clamp Bracket Lower Starboard Plate
SKU: 41117-93J02 Weight: 0.080000 Brand: Price: $ 14.12 |
Clamp Bracket Lower Starboard Plate | 1 | $ 14.12 | ||
| 4 | 41122-93J02 Clamp Bracket Lower Port Plate
SKU: 41122-93J02 Weight: 0.060000 Brand: Price: $ 15.30 |
Clamp Bracket Lower Port Plate | 1 | $ 15.30 | ||
| 5 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 4 | $ 1.96 | ||
| 6 | 41130-93J12 Clamp Bracket Shaft
SKU: 41130-93J12 Weight: 1.500000 Brand: Price: $ 204.39 |
Clamp Bracket Shaft | 1 | $ 204.39 | ||
| 7 | 41135-93J11 Clamp Bracket Shaft Washer
SKU: 41135-93J11 Weight: 0.100000 Brand: Price: $ 4.86 |
Clamp Bracket Shaft Washer | 1 | $ 4.86 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 41153-93J00 Transom Bolt Cap
SKU: 41153-93J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Transom Bolt Cap | 6 | $ 4.39 | ||
| 10-1 | 09100-12085 Transom Bolt (12.7x115)
SKU: 09100-12085 Weight: 0.100000 Brand: Price: $ 23.74 |
Transom Bolt (12.7x115) | 1 | $ 23.74 | Optional | |
| 10-2 | 09100-12092 Transom Bolt (12.7x75)
SKU: 09100-12092 Weight: 0.125000 Brand: Price: $ 21.10 |
Transom Bolt (12.7x75) | 1 | $ 21.10 | Optional | |
| 10-3 | 09100-12086 Transom Bolt (12.7x150)
SKU: 09100-12086 Weight: 0.250000 Brand: Price: $ 27.84 |
Transom Bolt (12.7x150) | 6 | $ 27.84 | ||
| 11 | 09159-12062 Transom Nut
SKU: 09159-12062 Weight: 0.060000 Brand: Price: $ 8.34 |
Transom Nut | 6 | $ 8.34 | ||
| 12 | 09160-13022 Washer
SKU: 09160-13022 Weight: 0.125000 Brand: Price: $ 13.63 |
Washer | 4 | $ 13.63 | ||
| 13 | 09160-13021 Washer
SKU: 09160-13021 Weight: 0.125000 Brand: Price: $ 10.66 |
Washer | 6 | $ 10.66 | ||
| 14 | 41155-93J02 Transom Plate
SKU: 41155-93J02 Weight: 0.250000 Brand: Price: $ 22.18 |
Transom Plate | 2 | $ 22.18 | ||
| 15 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 16 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 17 | 45421-87D03 Tilt Lock Pin
SKU: 45421-87D03 Weight: 0.750000 Brand: Price: $ 23.88 |
Tilt Lock Pin | 1 | $ 23.88 | ||
| 18 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | ||
| 19 | 48140-93J01 Tilt Limit Switch Cam
SKU: 48140-93J01 Weight: 0.060000 Brand: Price: $ 15.32 |
Tilt Limit Switch Cam | 1 | $ 15.32 | ||
| 20 | 48144-93J00 Tilt Limit Switch Holder
SKU: 48144-93J00 Weight: 0.060000 Brand: Price: $ 10.46 |
Tilt Limit Switch Holder | 1 | $ 10.46 | ||
| 21 | 09103-06278 Bolt (6x25)
SKU: 09103-06278 Weight: 0.060000 Brand: Price: $ 2.37 |
Bolt (6x25) | 2 | $ 2.37 | ||
| 22 | 55321-94910 Magnesium Anode
SKU: 55321-94910 Weight: 0.300000 Brand: Price: $ 45.82 |
Magnesium Anode | 1 | $ 45.82 | Opt: Fresh Water Use Only | |
| 23 | 48145-93J00 Tilt Limit Switch Cover
SKU: 48145-93J00 Weight: 0.060000 Brand: Price: $ 10.38 |
Tilt Limit Switch Cover | 1 | $ 10.38 | ||
| 24 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Clamp to Swivel | |
| 25 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
