Suzuki DF 250S Parts Listings - 2014
S/N 25004F-410001 to 25004F-41XXXX

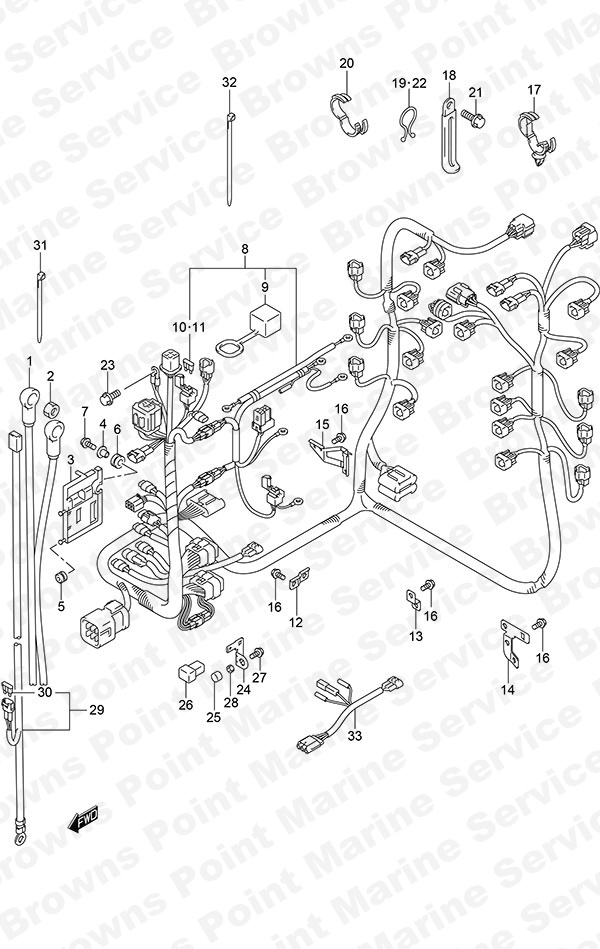

Fig. 127 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-98J01 Starter Motor Cable Assembly
SKU: 33810-98J01 Weight: 5.000000 Brand: Price: $ 317.56 |
Starter Motor Cable Assembly | 1 | $ 317.56 | L:4000 | |
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36616-93J01 Connector Holder
SKU: 36616-93J01 Weight: 0.125000 Brand: Price: $ 7.53 |
Connector Holder | 1 | $ 7.53 | ||
| 4 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer (6.3x17x1.6) | 1 | $ 2.65 | ||
| 5 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.68 |
Bushing | 2 | $ 1.68 | ||
| 6 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 2.08 |
Cushion | 1 | $ 2.08 | ||
| 7 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 8 | 36630-93J00 Replaced by 36630-93J01
SKU: 36630-93J00 Weight: 5.000000 Brand: Price: $ 643.22 |
Replaced by 36630-93J01 | 1 | $ 643.22 | ||
| 9 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.53 |
Service Connector Cap | 1 | $ 7.53 | ||
| 10 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 1 | $ 2.17 | ||
| 11 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.45 |
30 Amp Fuse | 1 | $ 2.45 | ||
| 12 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.12 |
Harness Bracket | 3 | $ 2.12 | ||
| 13 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.06 |
Harness Bracket | 7 | $ 2.06 | ||
| 14 | 36617-93J20 Harness Bracket
SKU: 36617-93J20 Weight: 0.400000 Brand: Price: $ 5.84 |
Harness Bracket | 1 | $ 5.84 | ||
| 15 | 36617-93J30 Harness Bracket (NLA)
SKU: 36617-93J30 Weight: 0.080000 Brand: Price: $ 7.22 |
Harness Bracket (NLA) | 1 | $ 7.22 | ||
| 16 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 13 | $ 2.45 | ||
| 17 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.80 |
Clip | 1 | $ 3.80 | ||
| 18 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.62 |
Clamp (L:65) | 1 | $ 1.62 | ||
| 19 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 20 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 3.10 |
Clamp | 3 | $ 3.10 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 22 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 23 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 24 | 36865-90J00 Main Fuse Terminal
SKU: 36865-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Main Fuse Terminal | 2 | $ 9.21 | ||
| 25 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.75 |
Cap | 2 | $ 3.75 | ||
| 26 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.94 |
60 Amp Fuse | 2 | $ 6.94 | ||
| 27 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.65 |
BOLT | 2 | $ 2.65 | ||
| 28 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 2 | $ 1.95 | ||
| 29 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 46.19 |
ECM Battery Lead | 1 | $ 46.19 | L:6700 | |
| 30 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 1 | $ 2.17 | ||
| 31 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.65 |
Clamp (L:100) | 2 | $ 2.65 | ||
| 32 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 1 | $ 3.25 | ||
| 33 | 36647-93J00 Aux PTT Switch Lead
SKU: 36647-93J00 Weight: 0.080000 Brand: Price: $ 20.93 |
Aux PTT Switch Lead | 1 | $ 20.93 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
